DGS-3224TG Gigabit Ethernet Switch User’s Guide

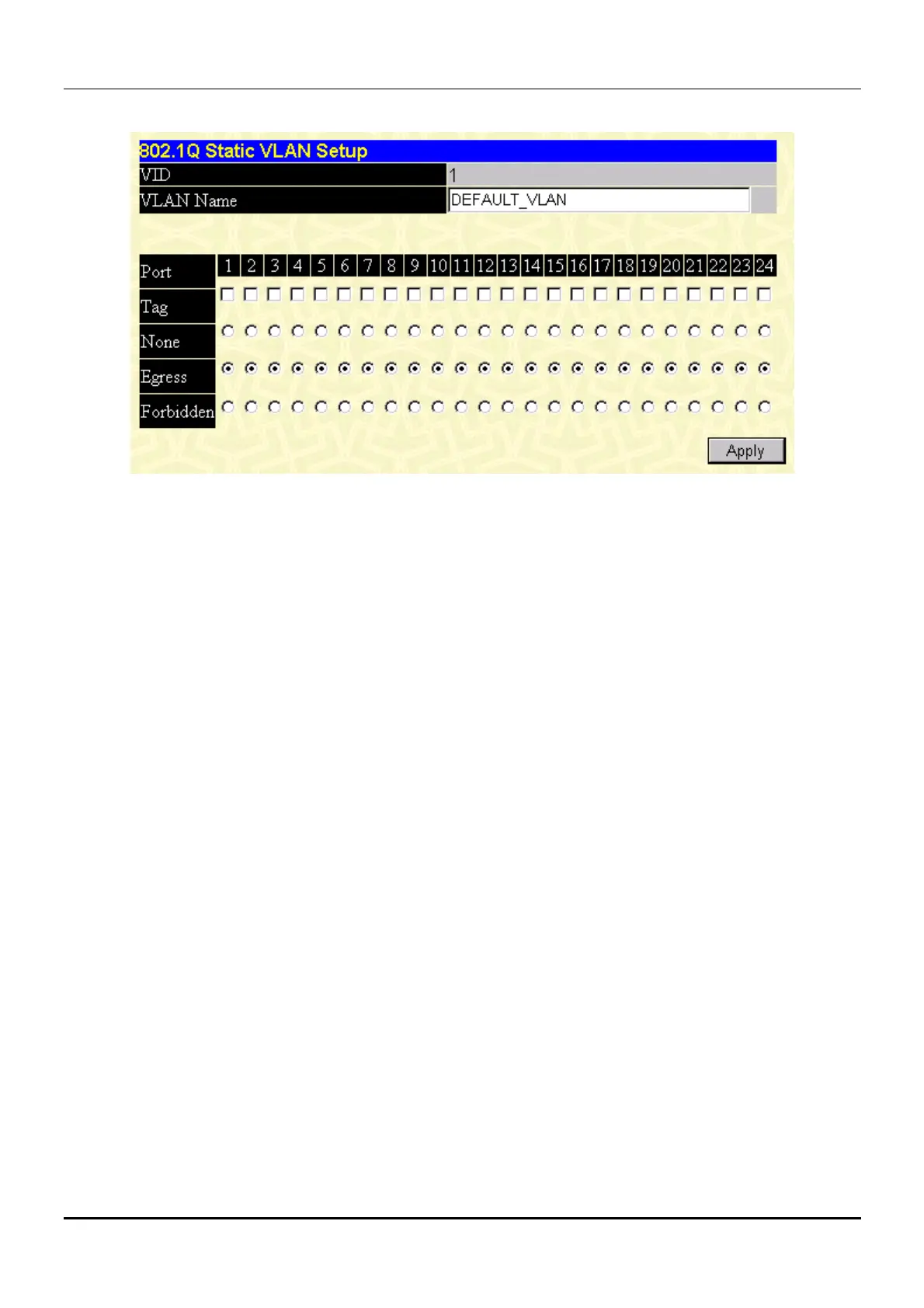

Figure 7-14. 802.1Q Static VLAN Setup window
To modify an entry, click the pointer icon next to the appropriate table entry on the 802.1Q Static
VLANs window and then complete the appropriate information on the window above. Click Apply to let
your changes take effect.
To delete an entry, click the X icon next to the appropriate table entry on the 802.1Q Static VLANs
window and then click Apply.
The information on the window is described as follows:
• VLAN ID (VID) – The VLAN ID of the VLAN that is being created.
• VLAN Name – The name of the VLAN that is being created.
• Tag – Specifies the port as either 802.1Q tagging or 802.1Q untagging. Checking the box will
designate the port as Tagging.
• None – Specifies the port as not being a static member of the VLAN, but with no restrictions for
joining the VLAN dynamically through GVRP.
• Egress – Specifies the port as being a static member of the VLAN. Egress Member Ports are ports
that will be transmitting traffic for the VLAN.
• Forbidden – Specifies the port that is not allowed to be a member of the VLAN.
93
