DGS-3224TG Gigabit Ethernet Switch User’s Guide
Static Forwarding Table
Static Unicast Forwarding

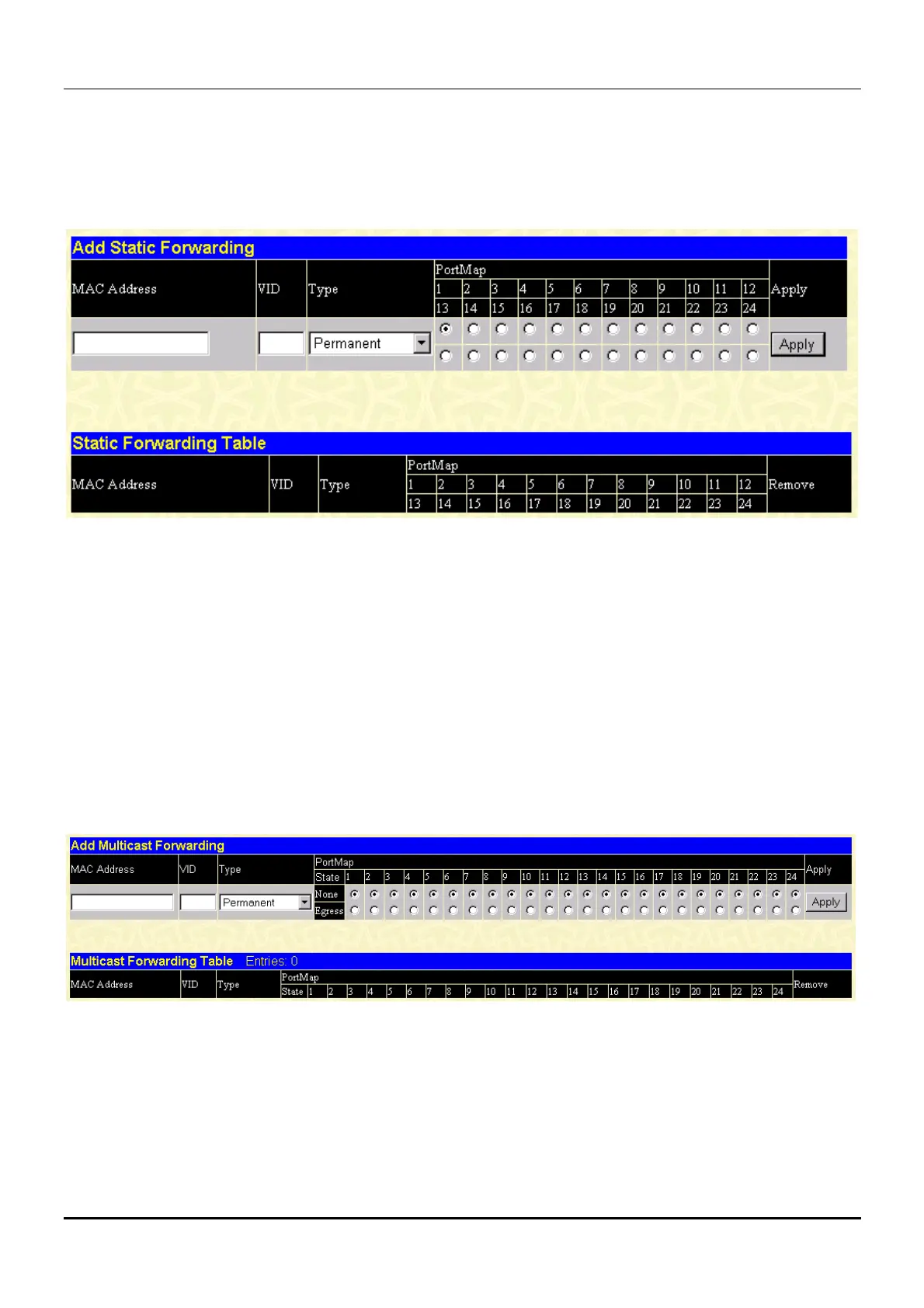

Figure 7-10. Add Static Forward window
The window above allows you to set up static packet forwarding on the switch.
The information on the window is described as follows:
• MAC Address – The MAC address from which packets will be statically filtered.
• VID – The VLAN ID number of the VLAN to which the MAC address belongs.
• Type – Select the filter type, Permanent or DeleteOnReset.
• Port Map – Allows the designation of the port on which the above MAC address resides.
Static Multicast Forwarding
Figure 7-11. Add Multicast Forwarding window
The information on the window is described as follows:
• MAC Address – The MAC address of the static source of multicast packets.
• VID – The VLAN ID number of the VLAN to which the MAC address belongs.
• Type – Select the filter type, Permanent or DeleteOnReset.
91
