10

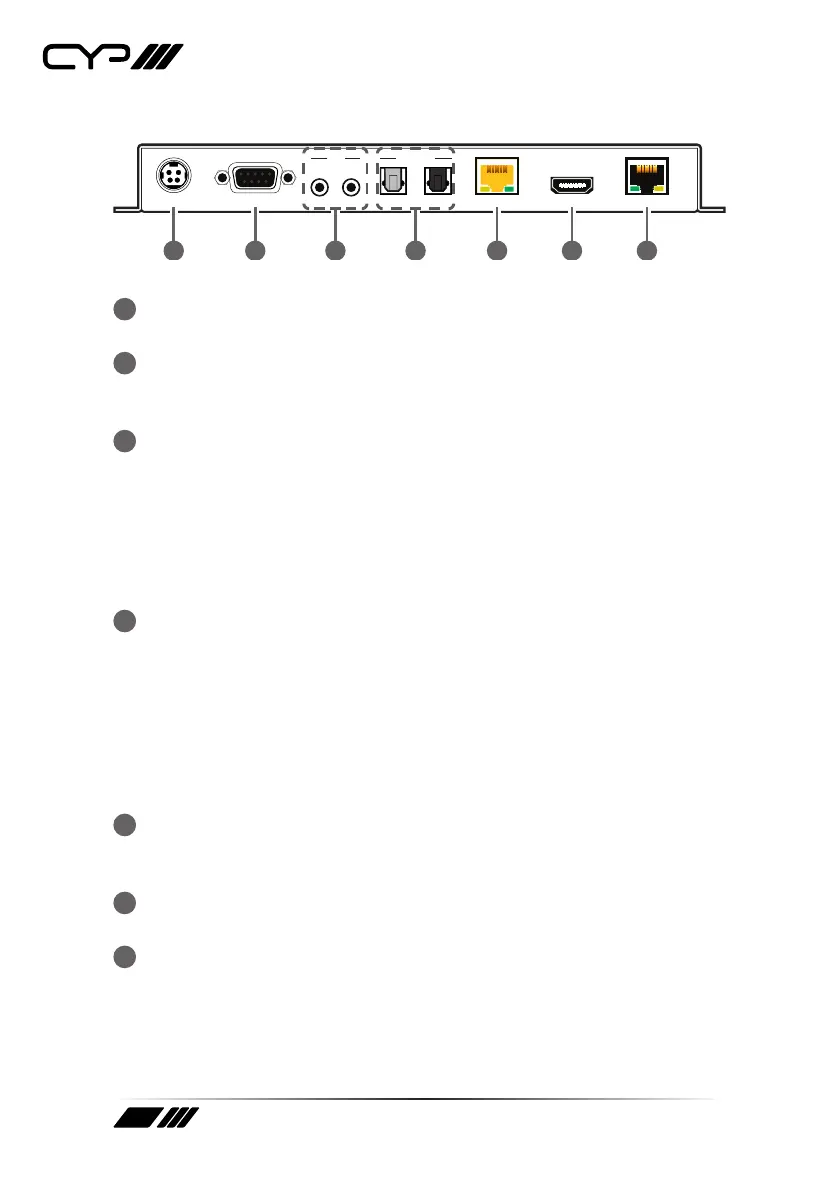

6.2 Transmitter Rear Panel
LANHDMI ININOUTDC 24V
RS-232
BYPASS
IR
OPTICAL
CAT5e/6/7 OUTOUT IN
1 2 3 4 5 6 7
1
DC 24V Port: Plug the 24V DC power adapter into this port and
connect it to an AC wall outlet for power.
2
RS-232 BYPASS Port: Connect to a PC, laptop or serial controllable
device for the extension of RS-232 signals between both ends of the
HDBaseT connection.
3
IR OUT Port: Connect to the provided IR Blaster to transmit IR signals
from the other end of the HDBaseT connection to devices within
direct line-of-sight of the IR Blaster.
IR IN Port: Connect to an IR Extender to extend the IR control range
of devices connected to the other end of the HDBaseT connection.
Ensure that the remote being used is within direct line-of-sight of the
IR Extender.
4
OPTICAL OUT Port: Connect to powered speakers or an amplifier
for digital audio output using an appropriate optical cable. Audio is
sourced from the Optical Audio Input port on a connected compatible
Receiver.
OPTICAL IN Port: Connect to the optical audio output of a device
such as a media player or game console using an appropriate optical
cable. Audio is sent to the Optical Audio Output on a connected
compatible Receiver.
5
CAT5e/6/7 OUT Port: Connect to a compatible HDBaseT Receiver
with a single Cat.5e/6/7 cable for transmission of all data signals. 48V
PoH will also be supplied to a connected compatible PD Receiver.
6
HDMI IN Port: Connect to HDMI source equipment such as a media
player, game console or set-top box.
7
LAN Port: Connect to an Ethernet supporting device or to your local
network, as appropriate, to extend the network to both ends of the
HDBaseT connection.
