6. OPERATION CONTROLS AND FUNCTIONS

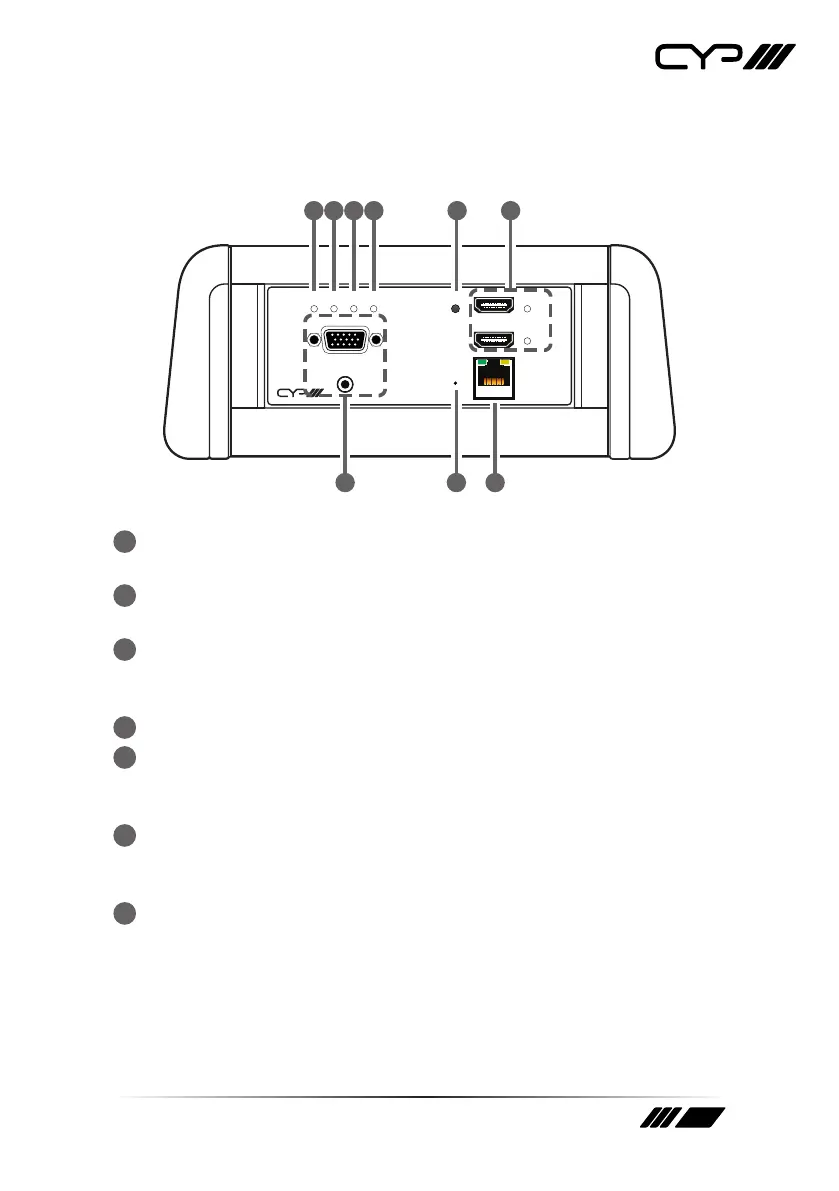

6.1 Front Panel
PWR LINK HDCP VGA IN
LAN
PUV-1630TTX
INPUT
SELECT
VGA IN 1
AUDIO IN
HDMI IN 3
HDMI IN 2
1
7 8 9
2 3 4 5 6
1
PWR LED: This LED will illuminate to indicate the unit is on and
receiving power.
2
LINK LED: This LED will illuminate when the unit is on, receiving
power, and has successfully linked to a compatible Receiver.
3
HDCP LED: This LED indicates the HDCP mode of the current input.
Green indicates Follow Display mode, orange indicates Follow Source
mode, off indicates HDCP support is disabled.
4
VGA IN LED: This LED will illuminate when the VGA input is selected.
5
INFO Button: A short press of this button will switch between the
available inputs. Pressing and holding this button for 2 seconds will
activate the information OSD.
6
HDMI IN 1 & 2 Ports and LEDs: Connect to HDMI source equipment
such as a media player, game console or set-top box. The appropriate
LED will illuminate when that HDMI input is selected.
7
VGA IN Port: Connect to VGA source equipment such as a PC or
laptop.
L/R IN Port: Connect to the stereo analogue output of a device such
as a CD player or PC for embedding into the HDBaseT output.
