10
8
FAC. RESET Pinhole: Press and hold for 5 seconds to reset the unit to
its factory defaults.
9
LAN Port: Connect to an Ethernet supporting device or to your local
network, as appropriate, to extend the network to both ends of the
HDBaseT connection and to control the unit.

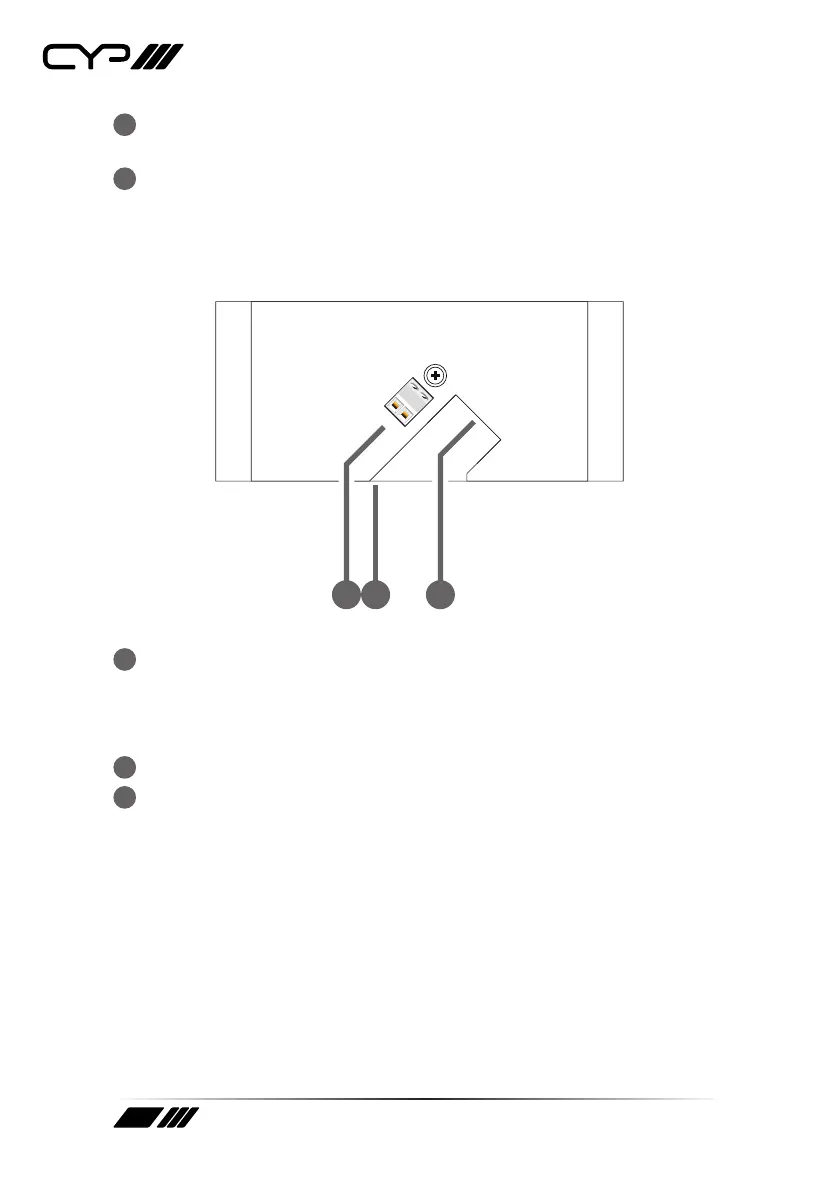

6.2 Rear Panel
DC 12V
+
−
CAT5e/6/7 OUT
31
2
1
DC 12V Port: Plug the 12V DC power adapter into this terminal block
and connect it to an AC wall outlet for power. (Optional)
Note: This connection is not required if the unit is receiving power via 48V
PoH from the Receiver.
2
SERVICE Port: This port is reserved for rmware update use only.
3
CAT5e/6/7 OUT Port: Connect to a compatible HDBaseT Receiver with
a single Cat.5e/6/7 cable for transmission of all data signals. 48V PoH
will also be supplied when connected to a compatible PSE Receiver.
Note: The 48V PoH function is designed to receive power from compatible
Receiver units only. Other brands of Receiver may not be compatible.
