8

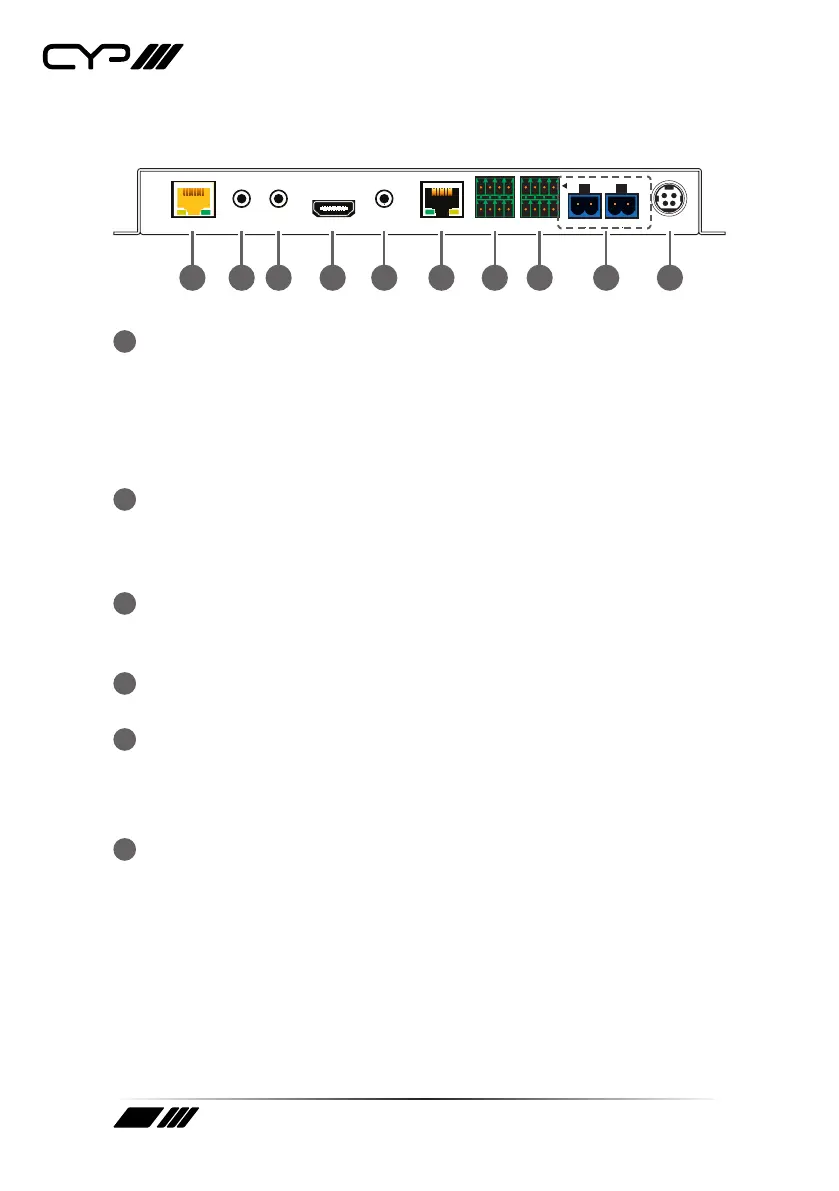

6.5 Rear Panel (Receiver)
CAT5e/6/7 IN
IR OUT
HDMI OUT
RS-232 RELAY OUTR L DC 24V
+
+
--
AUDIO OUT
CONTROL
IR IN
CTL CLI
1 2 3 4 5 6 7 8 109
1
CAT5e/6/7 Port: Connect to a compatible HDBaseT transmitter with
a single Cat.5e/6/7 cable for reception of all data signals. PoH will also
be supplied to a connected compatible PD transmitter.
Note: The PoH function is designed to power compatible transmitter
units only. Non-PoH transmitters will need their own power supply. Other
brands of transmitter may not be compatible.
2
IR IN Port: Connect to an IR Extender to receive local IR control
signals and extend them to devices connected to the other end of
the HDBaseT connection. Ensure that the remote being used is within
direct line-of-sight of the IR Extender.
3
IR OUT Port: Connect to an IR Blaster to transmit IR signals from the
other end of the HDBaseT connection to devices within direct line-of-
sight of the IR Blaster.
4
HDMI OUT Port: Connect to an HDMI TV, monitor, or amplifier for
digital video and audio output.
5
AUDIO OUT Port: Connect to powered speakers, headphones, or an
amplifier for analogue stereo audio output.
Note: Only LPCM 2.0 sources are supported. Bitstream sources will be
automatically muted.
6
CONTROL Port: Connect directly, or through a network switch, to
your PC/laptop to control the unit via Telnet/WebGUI.
