only.
10
DC 24V Port: Plug the 24V DC power adapter into this port and
connect it to an AC wall outlet for power.

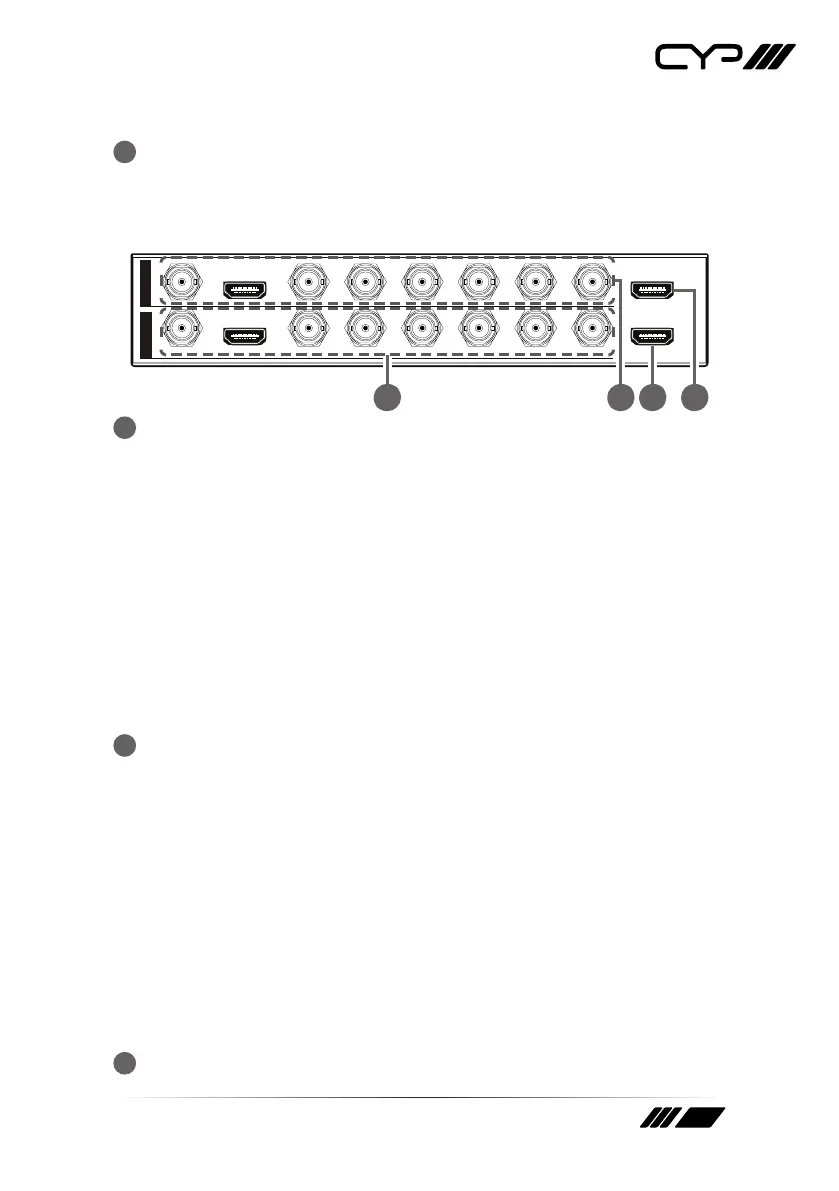

6.2 Rear Panel
HDMI IN
HDMI IN
SDI IN
SDI IN
VHBGR
VHBGR
CVBS
CVBS
CAM 2
CAM 1
GROUP 1 GROUP 2
1 3 42
1
GROUP 1:
SDI IN Port: Connect to SDI source equipment such as a video camera,
medical equipment, or set-top box.
Note: SDI audio is not supported.
HDMI IN Port: Connect to HDMI source equipment such as a video
camera, medical equipment, or set-top box.
RGBHV 5-BNC Port: Connect to VGA source equipment such as a
PC, medical equipment, or set-top box. The use of a 15-pin to 5-BNC
adapter may be required.
Note: YUV, RGBS and RGsB sources are not supported.
CVBS Port: Connect to composite video source equipment such as a
video camera or medical equipment.
2
GROUP 2:
SDI IN Port: Connect to SDI source equipment such as a video
camera, medical equipment, or set-top box.
Note: SDI audio is not supported.
HDMI IN Port: Connect to HDMI source equipment such as a video
camera, medical equipment, or set-top box.
RGBHV 5-BNC Port: Connect to VGA source equipment such as a
PC, medical equipment, or set-top box. The use of a 15-pin to 5-BNC
adapter may be required.
Note: YUV, RGBS and RGsB sources are not supported.
CVBS Port: Connect to composite video source equipment such as a
video camera or medical equipment.
3
CAM 1 Port: Connect to HDMI source equipment such as a media
