3

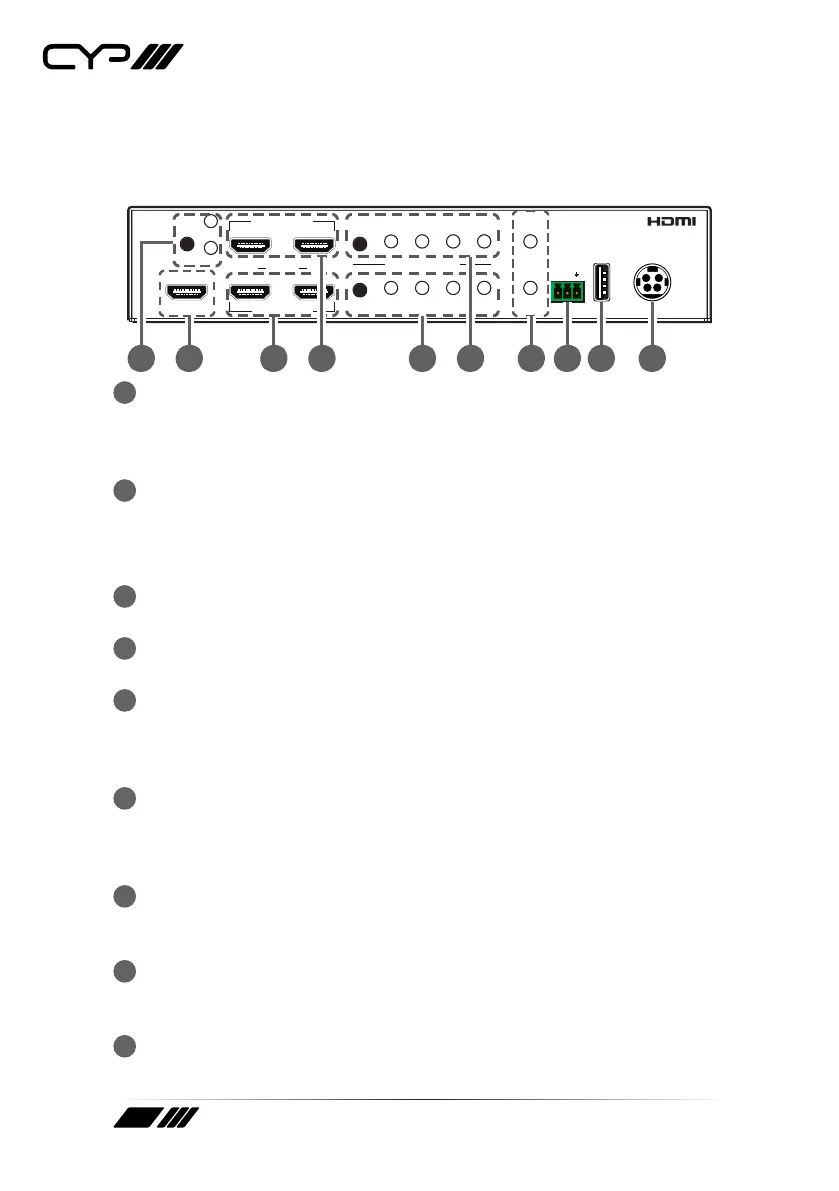

6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
IP
B
HDMI OUT B
HDMI OUT A
IP
12 PORT
A
CAM 2
SDIHDMIVGACVBS
1
2
CAM 1
SDIHDMIVGACVBS
RS-232
TX RXTX RX
SERVICE DC 24V
GROUP SELECT
LINK
21 3 4 5 7 8 9 106
1
IP A/B Button & LEDs: Press this button to toggle between
monitoring HDMI output A or B on the IP output. The LED will
illuminate to indicate which output is currently being monitored by
the IP output.
2
IP HDMI Output Port: Connect to an HDMI TV, monitor, amplier or
other HDMI receiving device for digital video and audio output.
Note: This output port is primarily intended for monitoring and will
typically be connected to a IP streaming or recording device.
3
HDMI OUT A Ports 1 & 2: Connect to HDMI TVs, monitors, or
ampliers for digital video and audio output.
4
HDMI OUT B Ports 1 & 2: Connect to HDMI TVs, monitors, or
ampliers for digital video and audio output.
5
GROUP SELECT 1 Button and LEDs: Press this button to sequentially
switch through the available sources to display in the “Group 1”
window. The LED will illuminate to indicate which source is currently
selected.
6
GROUP SELECT 2 Button and LEDs: Press this button to sequentially
switch through the available sources to display in the “Group 2”
window. The LED will illuminate to indicate which source is currently
selected.
7
CAM 1 & 2
Link LEDs: These LEDs will illuminate to indicate that a
live source has been detected on the associated input port. When no
source is detected the LED will remain o.
8
RS-232 3-pin Terminal Block: Connect directly to a PC, laptop, or
other serial control device with a 3-pin adapter cable to send RS-232
commands to control the unit.
9
SERVICE USB 2.0 Port: This port is reserved for rmware update use
