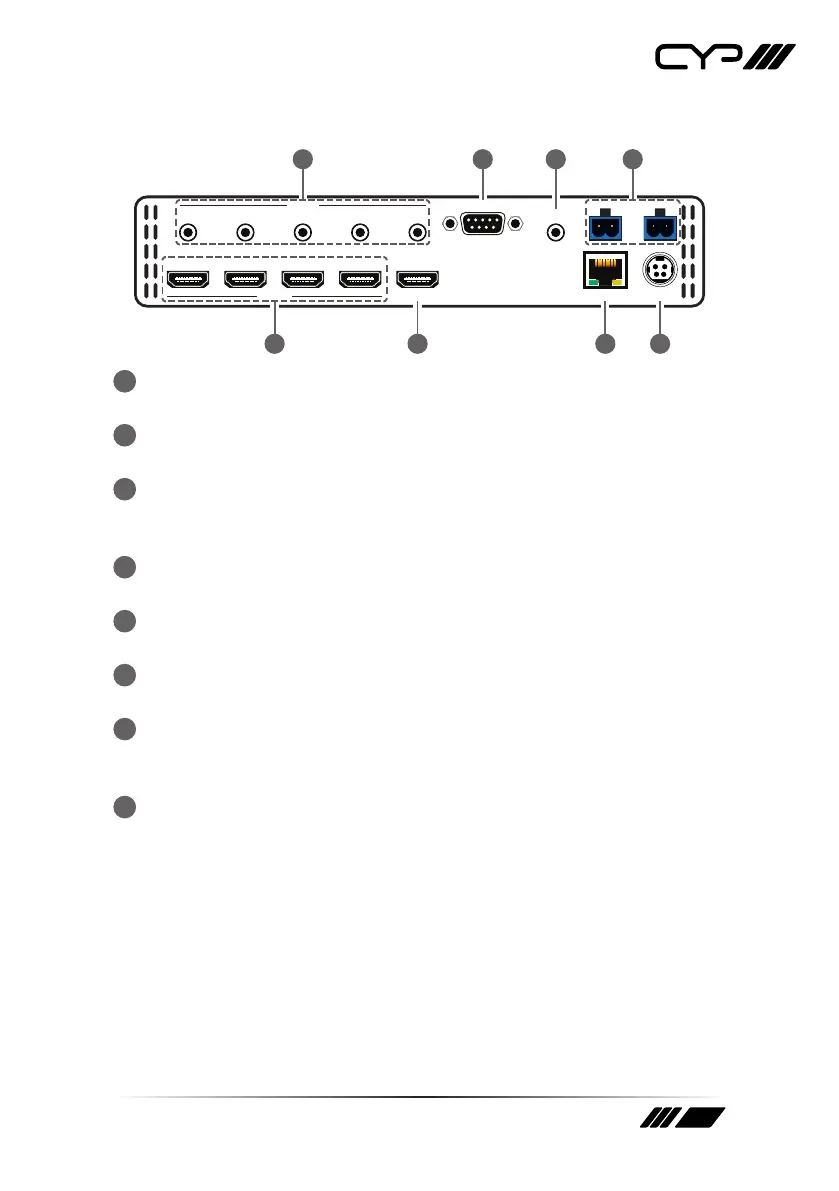

6.2 Rear Panel
RS-232
LINE OUT
CONTROLDC 24V
–
LEFT
+
34
12
HDMI IN
HDMI OUT
RIGHT
+
–
345
12
IR OUT
1
4 5 6 7
2 3 8
1
HDMI IN 1~4 Ports: Connect to HDMI source equipment such as
media players, game consoles or set-top boxes.
2
HDMI OUT Port: Connect to an HDMI TV, monitor, or amplier for
digital video and audio output.
3
CONTROL Port: Connect to the local network through a network
switch or router to control the unit via Telnet, WebGUI, or mobile
device app.
4
IR OUT 1~5 Ports: Connect to the provided IR Blasters to transmit IR
signals to devices within direct line-of-sight of the IR Blasters.
5
RS-232 Port: Connect directly to a PC, laptop or other serial control
device to send RS-232 commands to control the unit.
6
LINE OUT Port: Connect to powered speakers, headphones, or an
amplier for stereo analogue audio output.
7
RIGHT/LEFT 2-pin Terminal Blocks: Connect to unpowered 4Ω
speakers for stereo analogue audio output. Up to 20W of power is
provided to each speaker channel.
8
DC 24V Port: Plug the 24V DC power adapter into this port and
connect it to an AC wall outlet for power.
