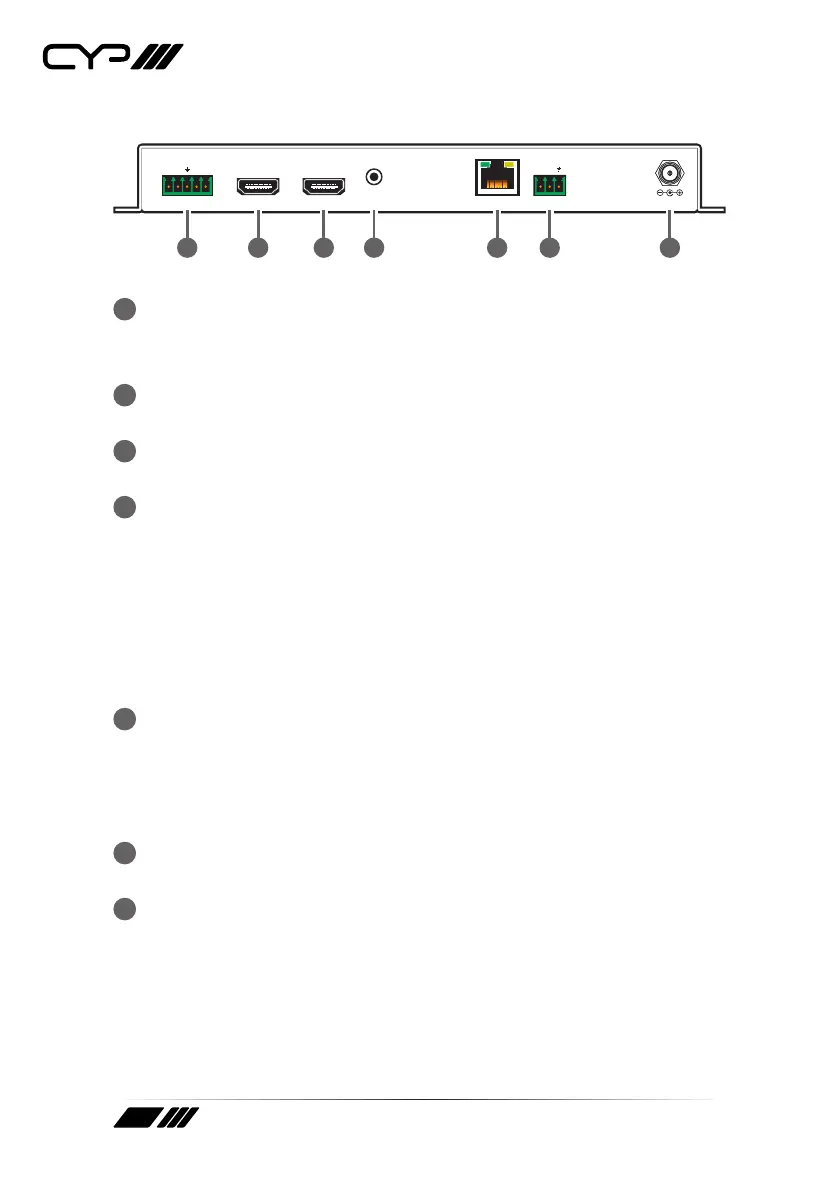

6.2 Rear Panel
DC 12VRS-232LAN (POE)AUDIO INHDMI INHDMI OUTAUDIO OUT
L+ L-
TXRX
R+R-
4 5 6 721 3
1
AUDIO OUT 5-pin Terminal Block: Connect to powered speakers or
an amplier for analogue stereo audio output.
Note: Only LPCM 2.0 sources are supported.
2
HDMI OUT Port: Connect to an HDMI TV, monitor, or amplier for
digital video and audio output.
3
HDMI IN Port: Connect to HDMI source equipment such as a media
player, game console, or set-top box.
4
AUDIO IN Port: Connect to the analogue stereo output of a device
such as an audio player or PC.
Note: This audio is output ONLY as a secondary audio-only stream. It
cannot currently be combined with the video stream. There will be an
update to enable this at a later stage.
To access the unit's audio only stream on the LAN enter the stream key of
“rtsp://"ip_addr"/audio2” into your desired streaming platform to stream
the line in audio.
5
LAN (PoE) Port: Connect to a network switch, or router for
transmission of streamed video as well as to control the unit via Telnet
or WebGUI.
Note: This unit can be powered via PoE when the LAN(PoE) port is directly
connected to a Gigabit Ethernet switch that provides PoE (802.3at).
6
RS-232 3-pin Terminal Block: Connect to a PC, laptop, or serial
controllable device for the extension of RS-232 signals.
7
DC 12V Port: Plug the 12V DC power adapter into this port and
connect it to an AC wall outlet for power.
Note: Optional, not required if the unit is powered via PoE
