20

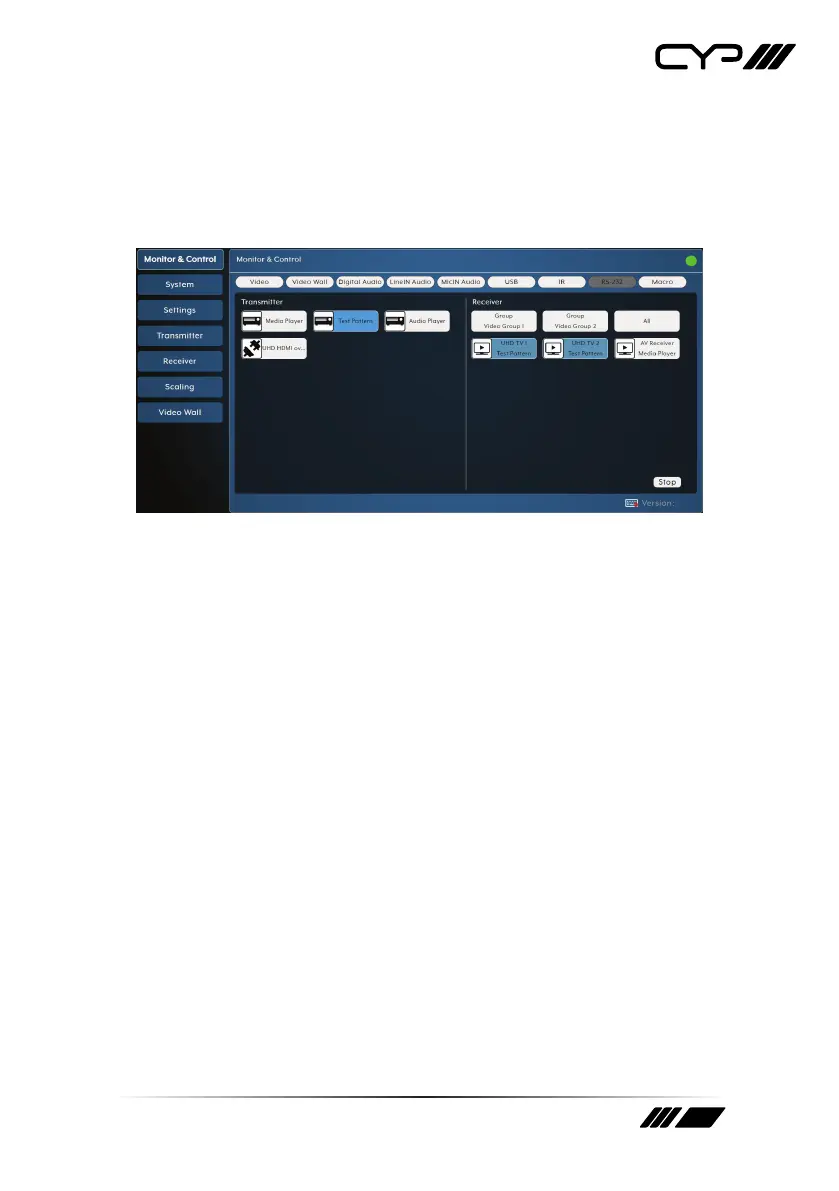

8) RS-232 Routing: Provides drag-and-drop control over the routing of
the RS-232 ports on all detected transmitters and receivers.
Note: If linked routing for RS-232 is enabled on the target receiver, then all
other linked routing enabled streams will also switch. See section 6.6.5 for
linked routing settings.
RS-232 Transmitter: This section provides drag-and-drop buttons
for all transmitters with RS-232 ports detected by the system.
Transmitter to Single Receiver Routing: To link a transmitter’s RS-
232 port to a receiver’s port, click and drag the transmitter’s button
on the left to the preferred display on the right side, then release
the mouse button. If the routing was completed successfully, the
newly routed transmitter’s name will appear below the display’s
name within the button. Clicking on any transmitter button will
change the colour of itself, and all currently routed displays.
Note: Receivers may also be drag and dropped onto sources to
activate a new route.
Transmitter to Multiple Receiver Routing: To link a transmitter’s
RS-232 port to multiple receivers at the same time, click and drag
the source’s button on the left to a Group button or the “All” button
on the right side, then release the mouse button. If the routing was
completed successfully, the transmitter’s name will appear within
all appropriate buttons.
RS-232 Receiver: This section provides drag-and-drop buttons for
all receivers with RS-232 ports detected by the system.
Stop Stream: To stop the RS-232 stream on a single display, drag
the display down to the “Stop” button at the bottom of the window,
then release the mouse button. To stop RS-232 streams on ALL
video outputs, drag the “All” button down to the “Stop” button.
