19

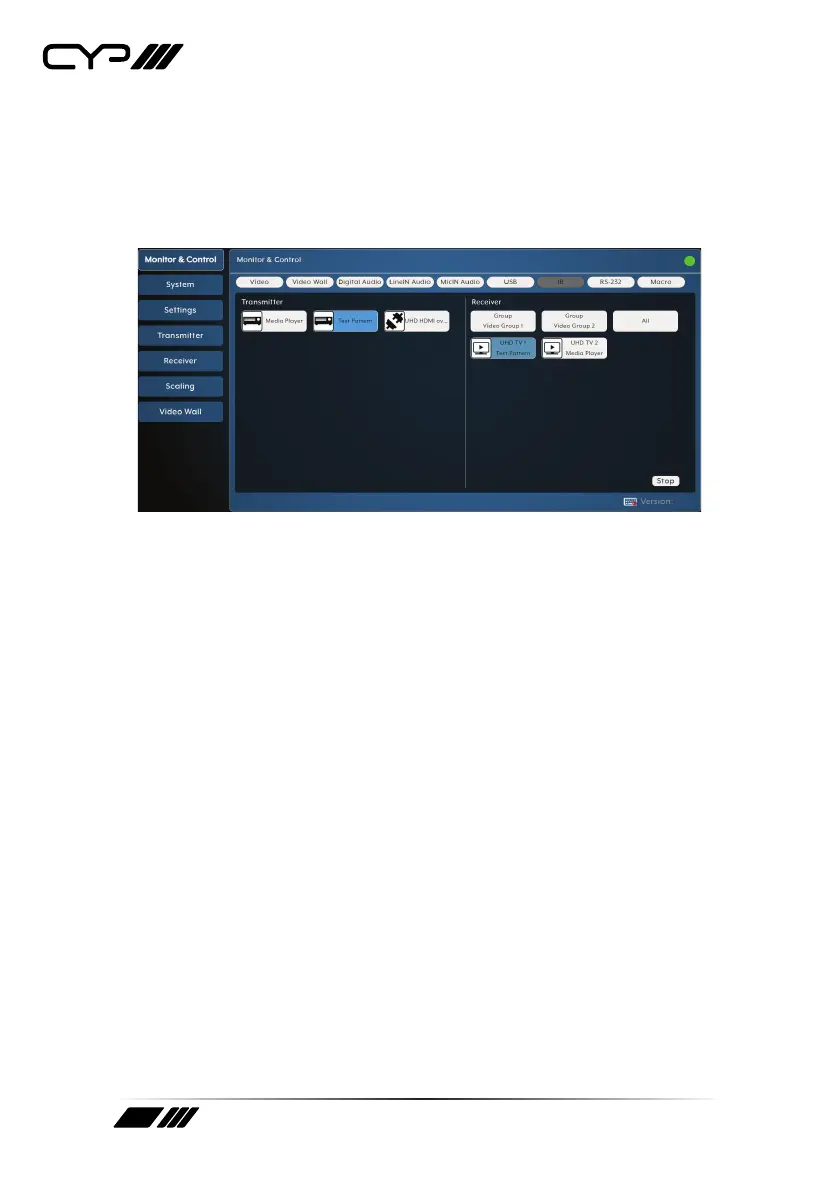

7) IR Routing: Provides drag-and-drop control over the routing of the IR
input and output pairs on all detected transmitters and receivers.
Note: If linked routing for IR is enabled on the target receiver, then all
other linked routing enabled streams will also switch. See section 6.6.5 for
linked routing settings.
IR Transmitter: This section provides drag-and-drop buttons for all
transmitters with IR ports detected by the system.
Transmitter to Single Receiver Routing: To link a transmitter’s IR
input/output pair to a receiver’s pair, click and drag the transmitter’s
button on the left to the preferred display on the right side,
then release the mouse button. If the routing was completed
successfully, the newly routed transmitter’s name will appear below
the display’s name within the button. Clicking on any transmitter
button will change the colour of itself, and all currently routed
displays.
Note: Receivers may also be drag and dropped onto sources to activate
a new route.
Transmitter to Multiple Receiver Routing: To link a transmitter’s
IR input/output pair to multiple receivers at the same time, click
and drag the source’s button on the left to a Group button or the
“All” button on the right side, then release the mouse button. If the
routing was completed successfully, the transmitter’s name will
appear within all appropriate buttons.
IR Receiver: This section provides drag-and-drop buttons for all
receivers with IR ports detected by the system.
Stop Stream: To stop the IR stream on a single display, drag the
display down to the “Stop” button at the bottom of the window,
then release the mouse button. To stop IR streams on ALL video
outputs, drag the “All” button down to the “Stop” button.
