6. OPERATION CONTROLS AND FUNCTIONS

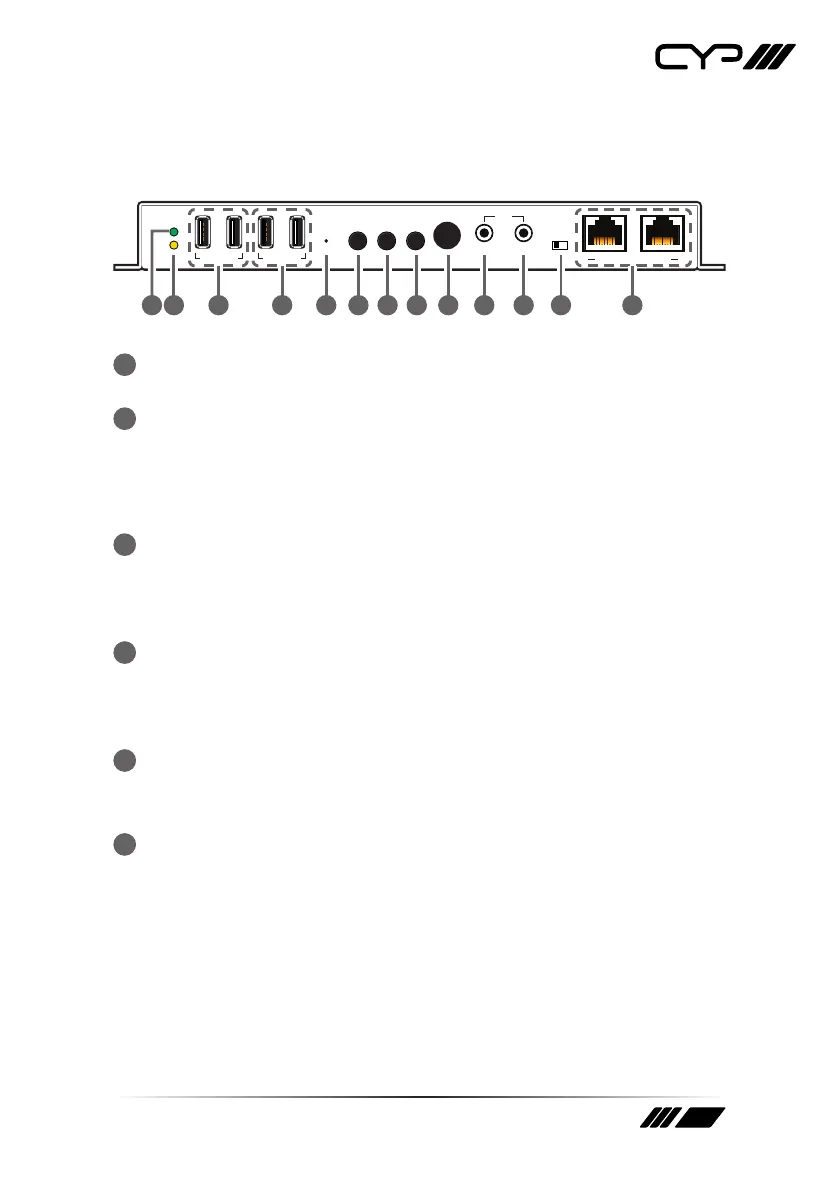

6.1 Transmitter's Front Panel
POWER
LINK USB 2.0
USB 1.1
RESET
MODE LINK USB IR IR IN IR OUT
SWITCH CH +CH -
IR
ISP
SEL
CONTROL BUTTON 21
3 4 132 5 6 7 8 9 10 11 121
1
POWER LED: This LED will flash while the unit is powering on and will
illuminate solidly once it is ready to be used.
2
LINK LED: If the receiver has no network connection the LINK LED
will not illuminate. While the receiver is attempting to establish a
connection with a transmitter the LINK LED will flash. When the
receiver has established a stable connection with a transmitter the
LINK LED will illuminate solidly.
3
USB 2.0 (Type-A) Ports: These 2 USB 2.0 slots provide connections for
USB devices requiring higher transfer speeds such as thumb drives.
Note: Isochronous (steady streaming) data devices such as USB cameras
and external hard drives are not supported.
4
USB 1.1 (Type-A) Ports: These 2 USB 1.1 slots provide connections for
slower USB devices such as keyboards, mice, etc.
Note: Isochronous (steady streaming) data devices such as USB cameras
and external hard drives are not supported.
5
RESET Pinhole: Press this recessed button to reset the unit’s power
supply and reboot the unit
Note: Settings will not be reset.
6
SWITCH/MODE Button: This button controls the following functions:
Switch Input: Press this button momentarily to switch between the
available video inputs on the currently routed transmitter.
Note: Due to the nature of streaming video and HDCP, the switch may
take up to 6–10 seconds to complete.
Video Mode: Press this button momentarily to toggle the currently
routed transmitter’s video data streaming method between
“Graphic” and “Video” modes. “Graphic” mode is optimised for high-
detail static displays and “Video” mode is optimised for full motion
video.
