LAN 1 (PoE) ~3 Ports: Connect via a Gigabit Ethernet switch to
compatible transmitters to receive video and data, or to a PC/laptop
to control the unit via WebGUI.
Note: This unit can be powered directly by the connected Gigabit Ethernet
switch if it provides PoE (802.3af). Only LAN 1 port supports PoE. Daisy
chaining additional receivers using LAN 1, 2, or 3 is also possible.
8
DC 5V Port: Plug the 5V DC power adapter into the unit and connect
it to an AC wall outlet for power.
Note: Optional, not needed if the unit is powered via PoE.

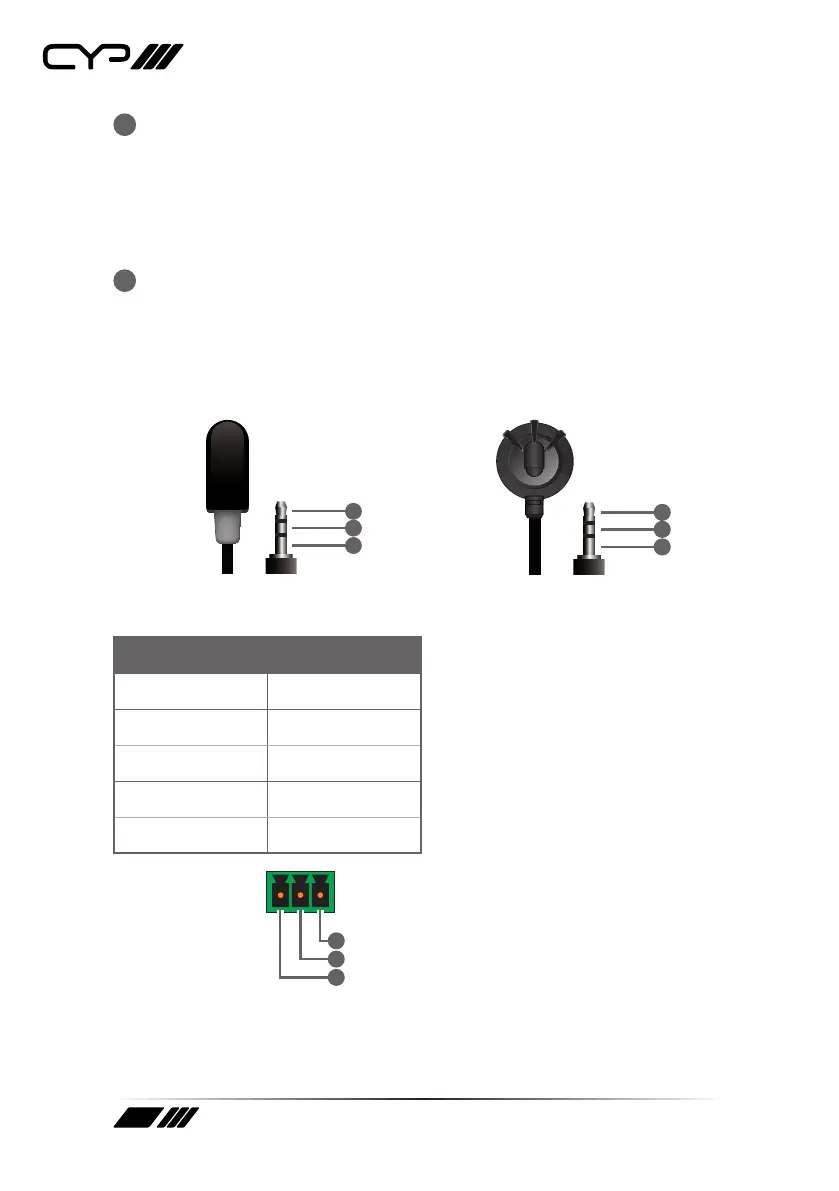

6.3 IR Cable Pinouts
IR Blaster
Cabl
e
1
2
3
Infrared
Power
Not Used
IR Extender
Cabl
e
1
2
3
Infr
ared
Power
Groun
d
6.4 Serial Pinout and Defaults
Serial Port Default Settings
Baud Rate 115200
Data Bits 8
Parity Bits None
Stop Bits 1
Flow Control None
1
2
3
RxD
GND
TxD
3-pin
Terminal Block
