6. OPERATION CONTROLS AND FUNCTIONS

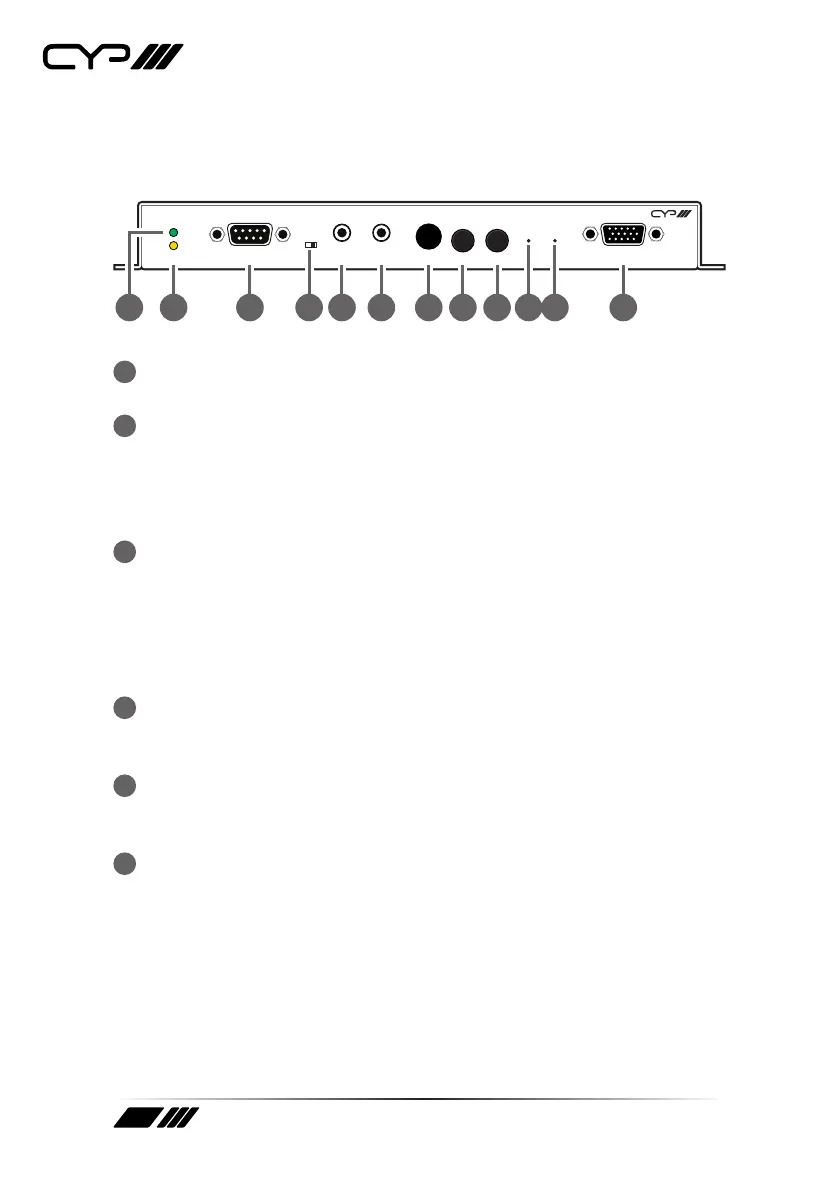

6.1 Transmitter's Front Panel
POWER
RS-232
ISP
SEL
IR
OUT
RESET
IR LINK
LOOPBACK
Anti-DITHER
MODE
ISP
VGA
LOOPBACK
LINK
IR
IN
IP-7000TX
1287654321 9 10 11
1
POWER LED: This LED will ash while the unit is powering on and will
illuminate solidly once it is ready to be used.
2
LINK LED: If the Transmitter has no network connection the LINK LED
will not illuminate. While the Transmitter is attempting to establish
a connection with a Receiver the LINK LED will ash. When the
Transmitter has established a stable connection with a Receiver the
LINK LED will illuminate solidly.
3
RS-232 IN: Connect directly to your PC/laptop to send commands
to RS-232 devices connected to the Receiver. The baud rate is
congurable, but the default baud rate is 115200.
Note: When the Transmitter is in multicast mode every connected Receiver
unit can send RS-232 commands to the Transmitter and commands sent
from the Transmitter side will be sent to all associated Receivers.
4
ISP SEL: For Factory use only. By default this is set to the right (away
from the RS-232 port) and allows normal RS-232 functionality. Setting
this switch to the left enables ISP engineering mode.
5
IR OUT: Connect to the provided IR Blaster to transmit IR signals sent
from the associated Receiver to devices within direct line-of-sight of
the IR Blaster.
6
IR IN: Connect to the provided IR Extender to extend the IR control
range of remotely located devices. Ensure that the remote being used
is within direct line-of-sight of the IR Extender.
Note: When the Transmitter is in multicast mode the IR signal is sent to all
associated Receivers.
