7

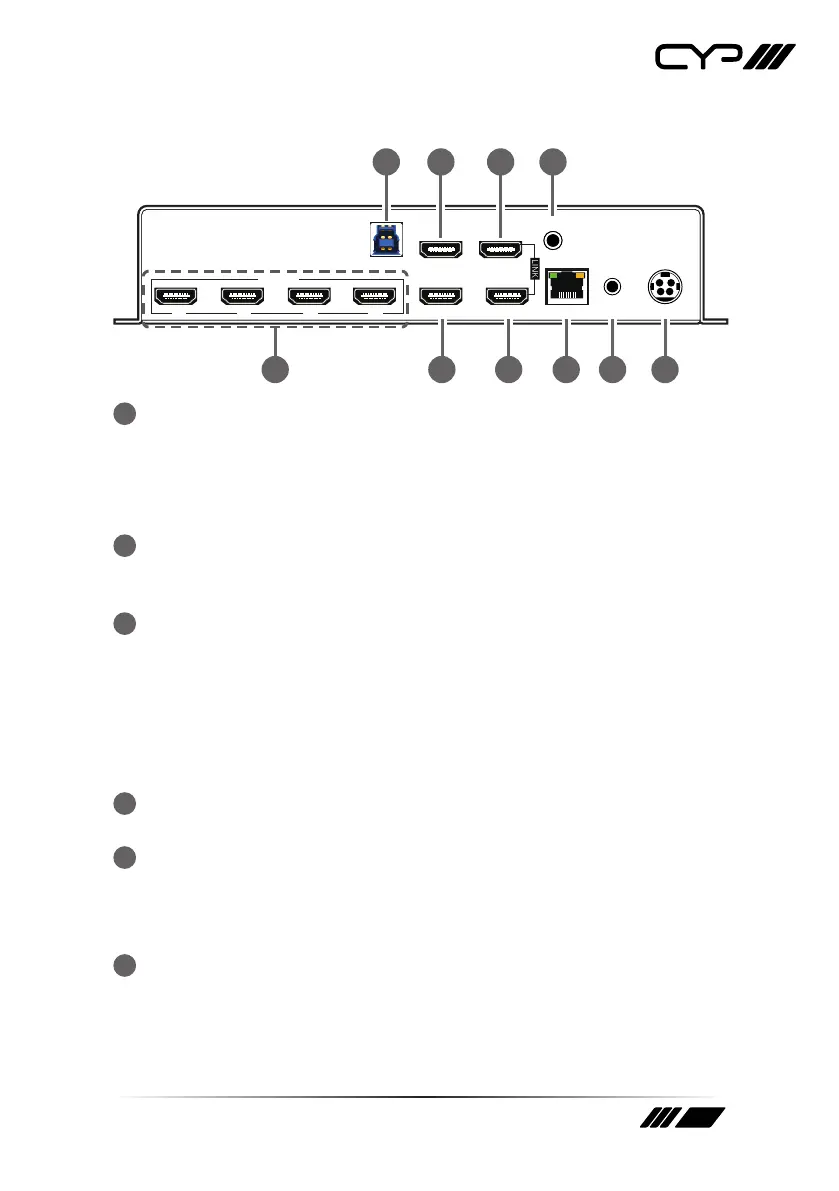

6.2 Rear Panel
USB 3.0 CAPTURE OUT
AUDIO IN
HDMI IN
123
4
HDMI OUT A
HDMI OUT B
CAPTURE IN
CONTROLRS-232 DC 24V
5
1 2 3 4
69
8
71
0
1
USB 3.0 Port: Connect directly to a PC’s USB 3.0 port to control and
power the video capture component of the unit.
Note: If connected via USB 2.0, use of a Y-cable connected to 2 USB 2.0
ports is required in order to properly power the video capture component
of the unit.
2
CAPTURE OUT Port: The video bypass output from the video capture
component of the unit. Connect to an HDMI TV, monitor or amplier
for digital video and audio output.
3
CAPTURE IN Port: The video input for the video capture component
of the unit. To capture video from the multiviewer component of the
unit, connect this port to the HDMI OUT B port located directly below
it.
Note: Capturing video sources containing HDCP protection is not
supported. Only the bypass CAPTURE OUT port will be active with HDCP
sources.
4
AUDIO IN Port: Connect to the stereo analogue output of a device
such as an audio player or PC for capture via USB 3.0.
5
HDMI IN 1~4 Ports: Video inputs for the multiviewer component of
the unit. Connect to HDMI source equipment such as players, game
consoles, or set-top boxes.
Note: Audio support on inputs 3~4 is limited to 2 channel LPCM.
6
HDMI OUT A Port: Primary HDMI output of the multiviewer
component of the unit. Connect to HDMI TVs, monitors, or ampliers
for digital video and audio output.
