10
knob controls the HDMI audio output (LPCM 2.0 only).
10
VOL. Rotary Knob & LEDs: Rotating the knob increases or decreases
the currently selected audio output’s volume level. The LED bar will
change according to the current level. Pressing in on the knob toggles
the audio mute function.

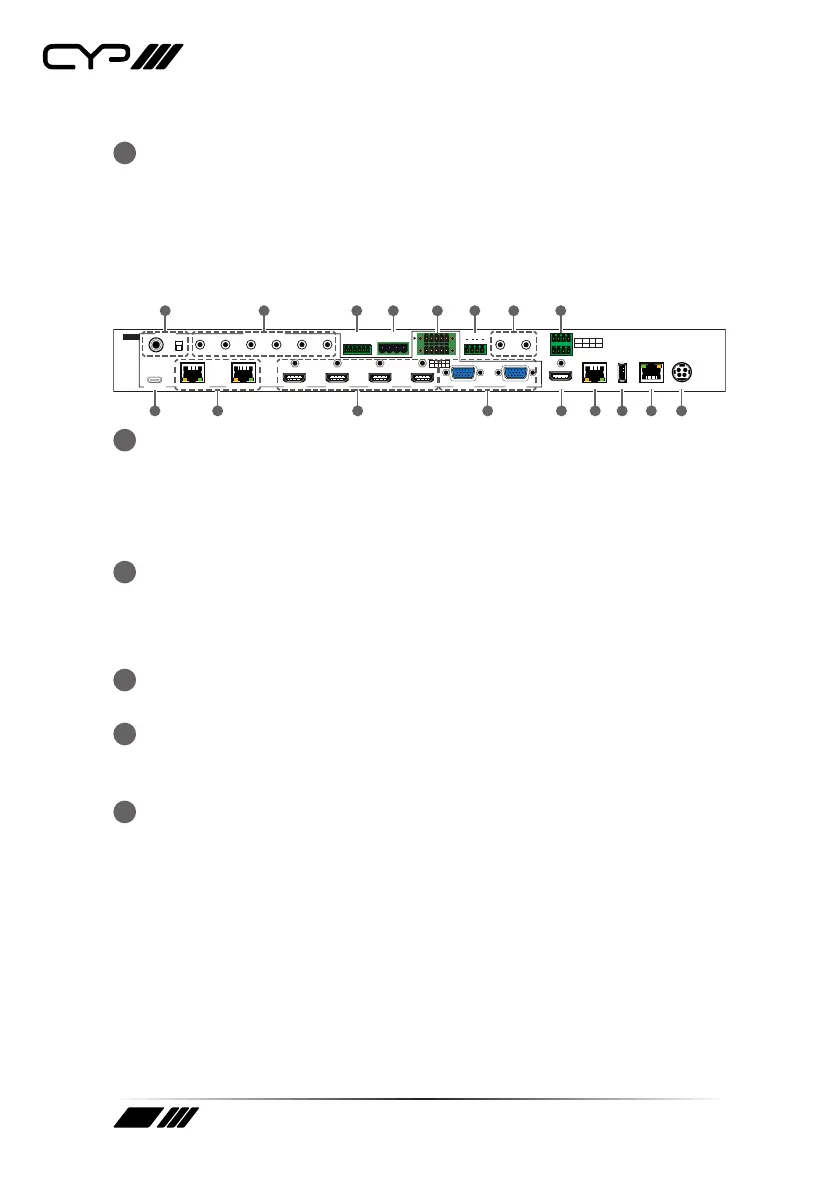

6.2 Rear Panel
ANALOGUE AUDIO
INPUT
USB-C
MIC IN
123456
IR IN IR OUT
L+
L+ L- R+ R-
L- GR+R-
CAT5e/6/7 1CAT5e/6/7 2
HDMI 1HDMI 2HDMI 3HDMI 4
VGA 1
VGA 2
HDMI OUT CAT5e/6/7 OUT
RS-232
SERV.
LAN
DC 24V
RELAY
12
OFF
48V
5V
G
G
24V
24V
TRIGGER IN
5V
G
1
5
2
6
4
8
3
7
AUDIO OUT
TX1
TX2
RX1
RX2
109 11 12 13 14 15 16 17
1 2 3 4 5 6 7 8
1
MIC IN Port & 48V/OFF/5V Switch: Connect to a standard
microphone using a 6.35mm plug. Set the switch based on the
phantom power requirements of the connected microphone.
Note: If no phantom power is required, this switch should remain in the
“Off” position to avoid potential damage to connected equipment.
2
Analogue AUDIO INPUT 1~6 Ports: Connect to the analogue stereo
output of a device such as an audio player or PC.
Note: By default, Analogue Audio 1 is paired with VGA input 1 and
Analogue Audio 2 is paired with VGA input 2.
3
AUDIO OUT 5-pin Terminal Block: Connect to powered speakers or
an amplifier for analogue stereo audio output.
4
AUDIO OUT L/R 2-pin Terminal Blocks: Connect to unpowered 4Ω
speakers for analogue stereo audio output. Up to 20W of power is
provided to each speaker.
5
TRIGGER IN 10-pin Terminal Block: Connect to the Trigger Control
Keypad (Optional) or any device with trigger switch functionality
such as window security alarms, motion detectors, door switches, etc.
Each of the 8 triggers will activate an assigned unit function when
triggered.
Note: A minimum of 5V DC is required to activate a trigger.
