16

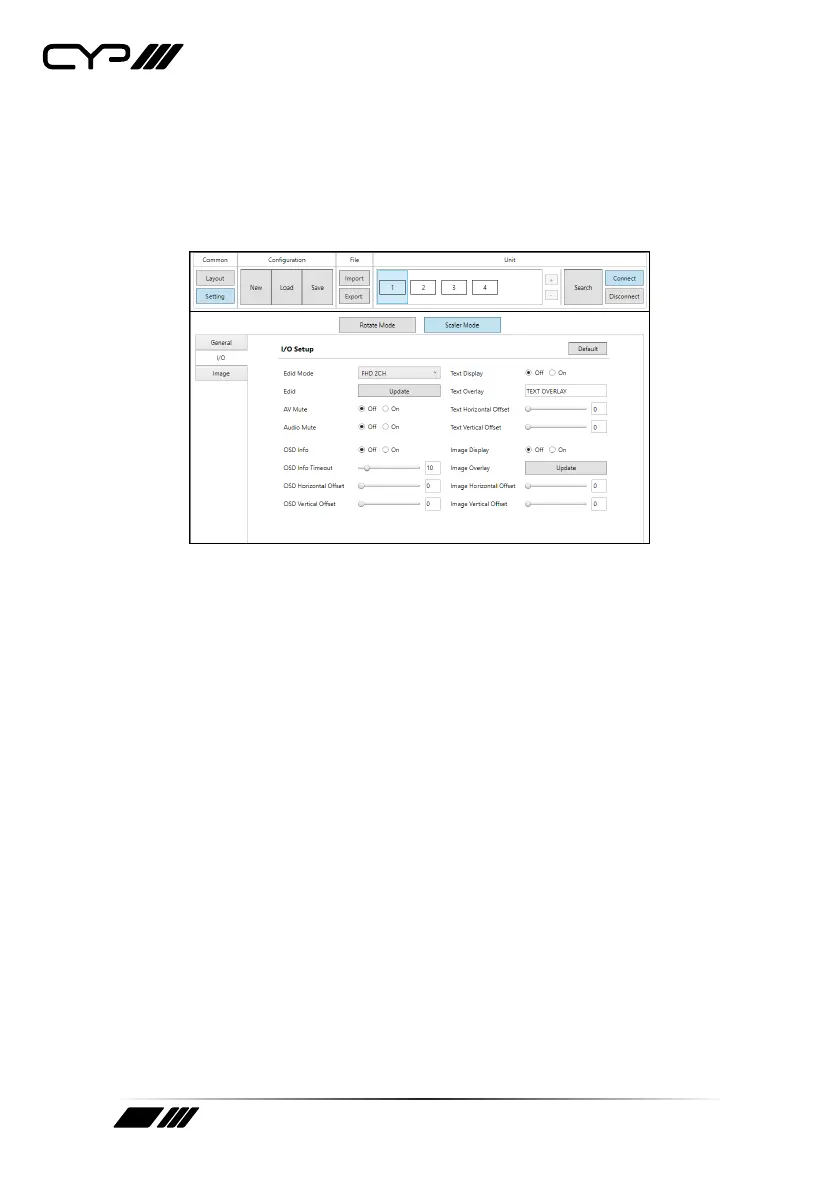

6.3.3.2 Scaler Mode Configuration
The “I/O” tab in Scaler Mode provides control over input and output
functions such as EDID selection, audio/video mute, OSD Information,
customised text overlay, and customised graphics overlay. To return these
settings to their factory defaults, click on the “Default” button.
1) EDID Mode: Select the preferred EDID for the unit to use from the
dropdown menu (FHD 2CH, FHD MCH, User, and Sink).
2) EDID Update: To upload a custom User EDID, insert a USB thumb
drive, with a valid EDID file named “USEREDID.BIN” in the root
directory, into the unit’s USB service port then click the “Update”
button.
3) AV Mute: Enables or disables the audio/video mute function. When
enabled, video output will be black, and audio will be muted.
4) Audio Mute: Enabled or disables the audio mute function. When
enabled, the audio output will be muted.
5) OSD Info: The OSD Info On/Off selector both shows the current OSD
Info state and provides a control to manually activate it. When “On” is
manually selected the OSD Info will show on the output until the set
timeout value has expired then it will revert to “Off”.
6) OSD Info Timeout and Offset: The OSD Info timeout value (in
seconds) and horizontal and vertical position may be set here.
7) Text Overlay Display: Enables or disables the custom text overlay
feature.
Note: Enabling OSD Info or Image Overlay will automatically disable the
Custom Text Overlay.
