3 — PROGRAMMER MENUS
Curtis 1355 CANopen Soft Starter Module Manual – September 2020
Return to TOC
pg. 14
ACTUATOR 1 — ACTUATOR 3 MENU (1355-X001 only)*
PARAMETER ALLOWABLE RANGE DESCRIPTION
Enable On / Off This parameter enables/disables the actuator output and fault check.
Note: Some severe faults, such as motor short and current sensor fault, will
still be checked even when this parameter is disabled.
Stall Current Limit 2 – 10 A Sets the maximum stall current for this actuator.
Stall Current Debounce 0.0 – 5.0 s This parameter allows a high startup current and momentary overload. If the
Stall timer exceeds the programmed debounce time, a stall fault is declared. It
is not possible to operate the motor in the stalled direction until the actuator is
rst operated in the opposite direction.
Accel 0.1 – 2.0 s Sets the rate (in seconds) at which the actuator output accelerates from zero
to 100% PWM; see Figure 4.
Decel 0.1 – 2.0 s Sets the rate (in seconds) at which the actuator decelerates.
* This menu is repeated for each of the three actuators.

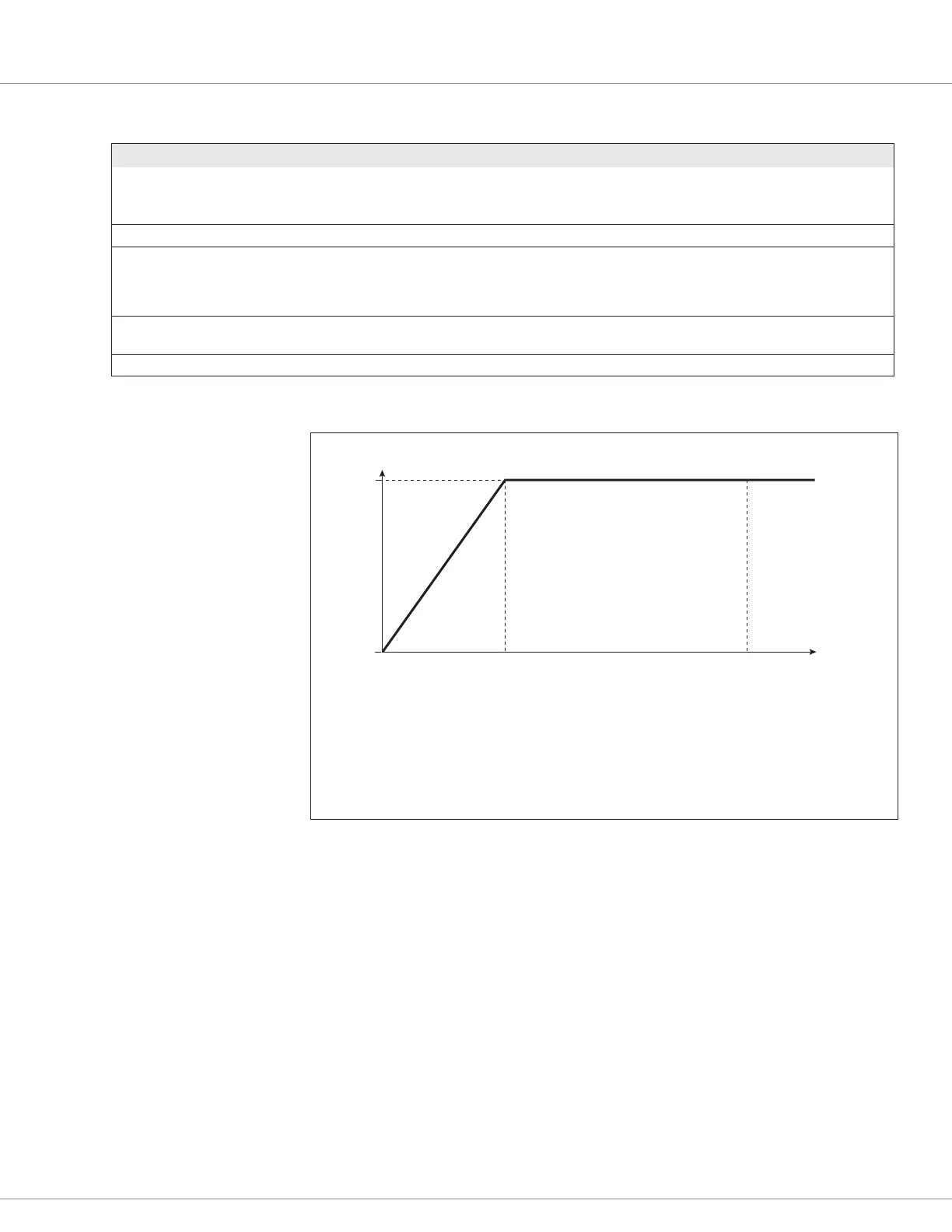

Figure 4
Driver acceleration.
TIME
0 %
PWM DEMAND
ACCEL
PWM accelerates from 0% to the programmed PWM Demand parameter at the
rate set by the Mx Accel or ActuatorX Accel parameters, and keeps that PWM
setting. e Accel parameters can be adjusted (over the CAN bus or with a Curtis
programer) from 0.1 to 2.0 seconds.
Note: In So Start mode the PWM Demand is not programmed and is always
100%.
