5 — SDO COMMUNICATIONS
pg. 29
Return to TOC Curtis 1352 eXm Manual, June 2021

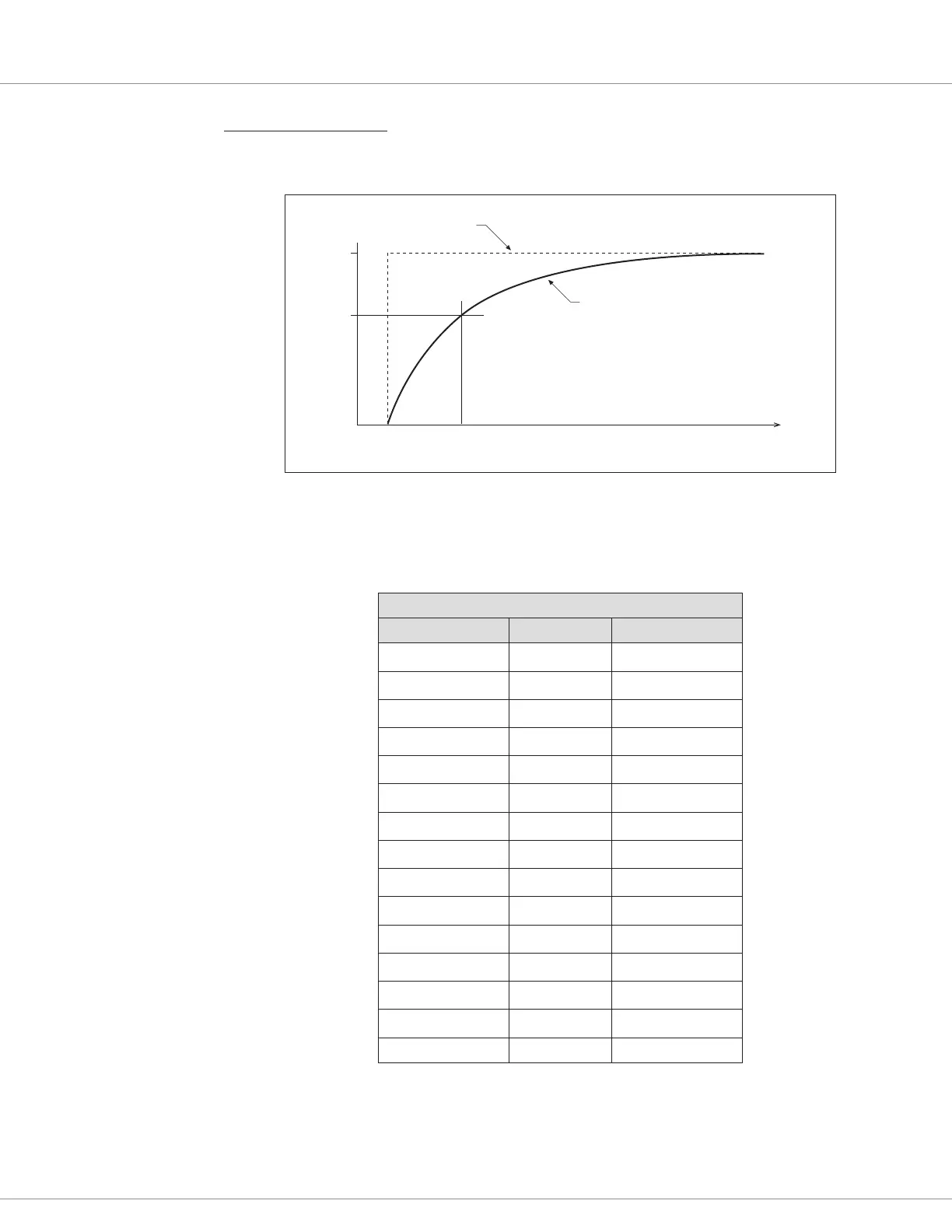

Analog Filter Rates
The filter applied to each analog input provides an exponential response, and the Filter Gain
parameter responds exponentially as well.
FILTER VALUE
100%
63%
TIME
Time
Constant
Step Input
Filtered Response
Typically an exponential lter is known by its Time Constant (TC), which is how long it takes the
lter to respond to a step input and reach 63% of its nal value. It takes approximately 5 TCs before
the ltered signal reaches its full output. e table below provides a way to estimate lter response.
Exponential Filter Response
Setting TC Time to 100%
1 64 s 320 s
2 32 s 160 s
4 16 s 80 s
8 8 s 40 s
16 4 s 20 s
32 2 s 10 s
64 1 s 5 s
128 512 ms 2.5 s
256 256 ms 1.25 s
512 128 ms 640 ms
1024 64 ms 320 ms
2048 32 ms 160 ms
4096 16 ms 80 ms
8192 8 ms 40 ms
16384 4 ms 20 ms
