2 — INSTALLATION AND WIRING
pg. 5
Return to TOC Curtis Model 1226BL – July 2024
2 — INSTALLATION AND WIRING
is chapter explains how to mount and wire the controller. e chapter also describes features and
basic conguration for the inputs and outputs.
MOUNTING THE CONTROLLER
e controller meets the IP54 requirements for environmental protection against dust and water. To
prevent external corrosion and leakage paths, mount the controller in a location that will keep the
controller clean and dry.
If you cannot find a clean, dry mounting location you must use a cover to shield the controller from
water and contaminants.
e following diagram shows the outline and mounting hole dimensions. e controller should be
mounted by means of the two mounting holes at the opposing corners of the heatsink, using M5 screws.
CAUTION

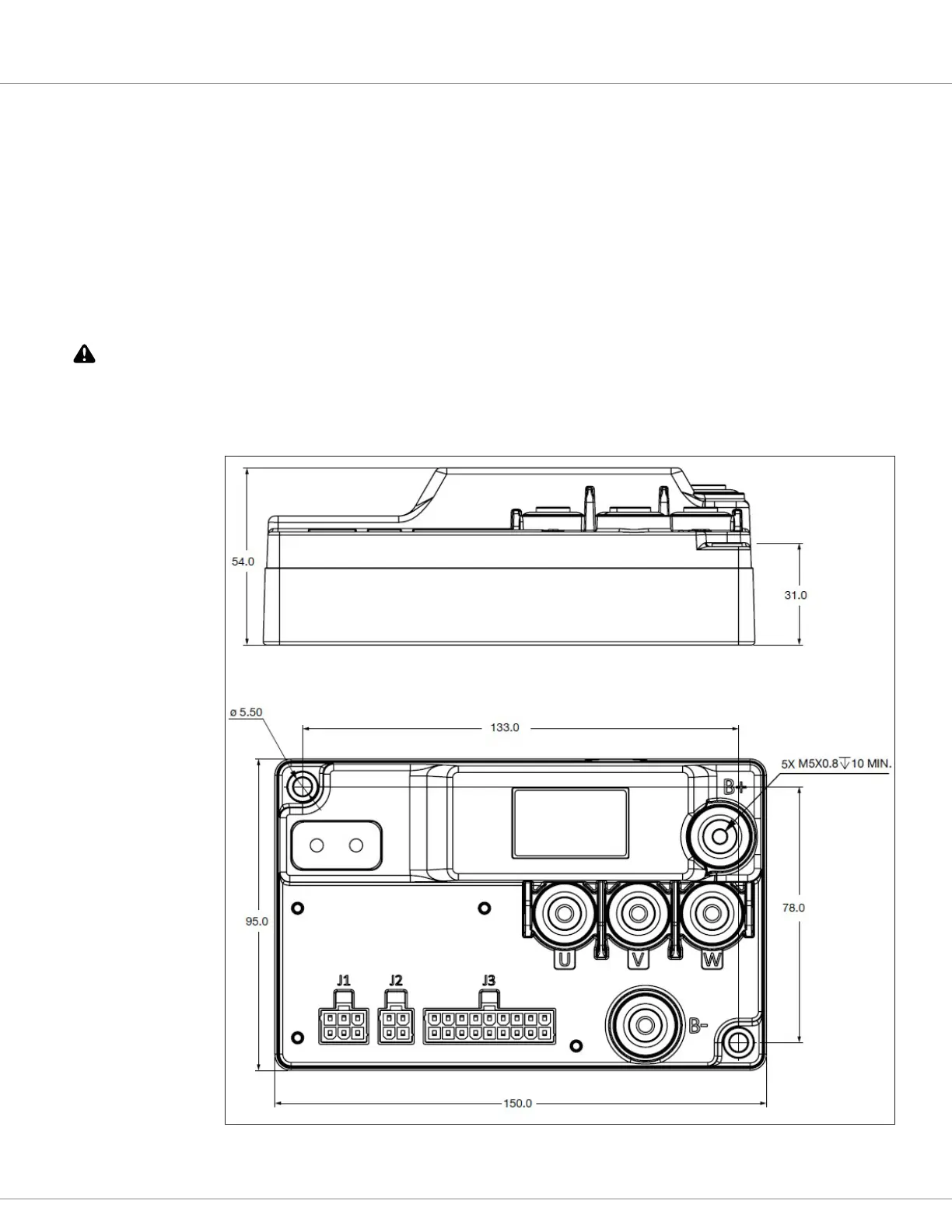

Figure 2
Mounting Dimensions, Curtis 1226BL Controller
