3 — PROGRAMMABLE PARAMETERS
pg. 23
Return to TOC Curtis Model 1220E – August 2022
POSITION ANALOG 1 AND 2
NAME
ALLOWABLE
RANGE RAW DATA DESCRIPTION
Position Analog1 Left Stop
(0x34F300, 16bits)
0 – 5.50V
0 – 3605
Denes the position analog 1 wiper voltage when the steer position
feedback is at the Left Stop.
(Wheel Position = Left Stop)
Position Analog1 Center
(0x34F400, 16bits)
0 – 5.50V
0 – 3605
Denes the position analog 1 wiper voltage when the steer position
feedback is at the center position.
(Wheel Position = 0°)
Position Analog1 Right Stop
(0x34F500, 16bits)
0 – 5.50V
0 – 3605
Denes the position analog 1 wiper voltage when the steer position
feedback is at the Right Stop.
(Wheel Position = Right Stop)
Position Analog1 Fault Min
(0x34F600, 16bits)
0 – 5.50V
0 – 3605
Sets the minimum threshold for analog 1 pot of position feedback.
If the position wiper voltage goes below this threshold for 60 msec. a fault
is issued.
Position Analog1 Fault Max
(0x34F700, 16bits)
0 – 5.50V
0 – 3605
Sets the maximum threshold for analog 1 pot of position feedback.
If the position wiper voltage rises above this threshold for 60 msec. a fault
is issued.
Position Analog2 Left Stop
(0x34F800, 16bits)
0 – 5.50V
0 – 3605
Denes the position analog 2 wiper voltage when the steer position
feedback is at the Left Stop.
(Wheel Position = Left Stop)
Position Analog2 Center
(0x34F900, 16bits)
0 – 5.50V
0 – 3605
Denes the position analog 2 wiper voltage when the steer position
feedback is at the center position.
(Wheel Position = 0°)
Position Analog2 Right Stop
(0x34FA00, 16bits)
0 – 5.50V
0 – 3605
Denes the position analog 2 wiper voltage when the steer position
feedback is at the Right Stop.
(Wheel Position = Right Stop)
Position Analog2 Fault Min
(0x34FB00, 16bits)
0 – 5.50V
0 – 3605
Sets the minimum threshold for analog 2 pot of position feedback.
If the position wiper voltage goes below this threshold for 60 msec. a fault
is issued.
Position Analong2 Fault Max
(0x34FC00, 16bits)
0 – 5.50V
0 – 3605
Sets the maximum threshold for analog 2 pot of position feedback.
If the position wiper voltage rises above this threshold for 60 msec. a fault
is issued.
Position Analog 1 Input
(Pin J3-2)
[5.0V]
[12 bits]
Position Left
Position Center
Position Right
Wheel Position
Left Stop (deg)
Right Stop (deg)
NormalizationLow Pass FilterAnalog/Digital ConverterDivider + Filter
+100%
0
−100%

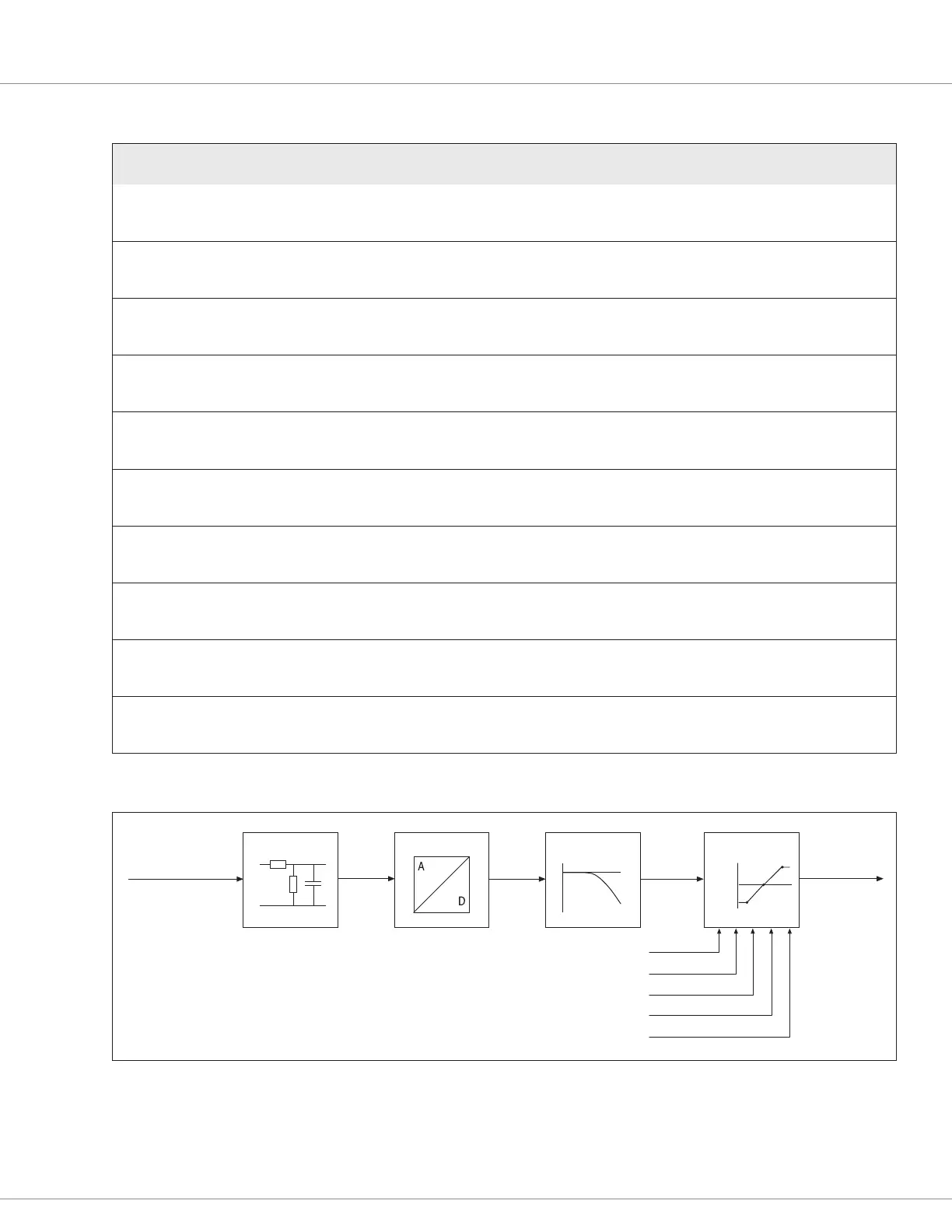

Figure 8
Position Feedback Device “0” signal ow (Analog 1 shown; Analog 2 is similar).
