07
08

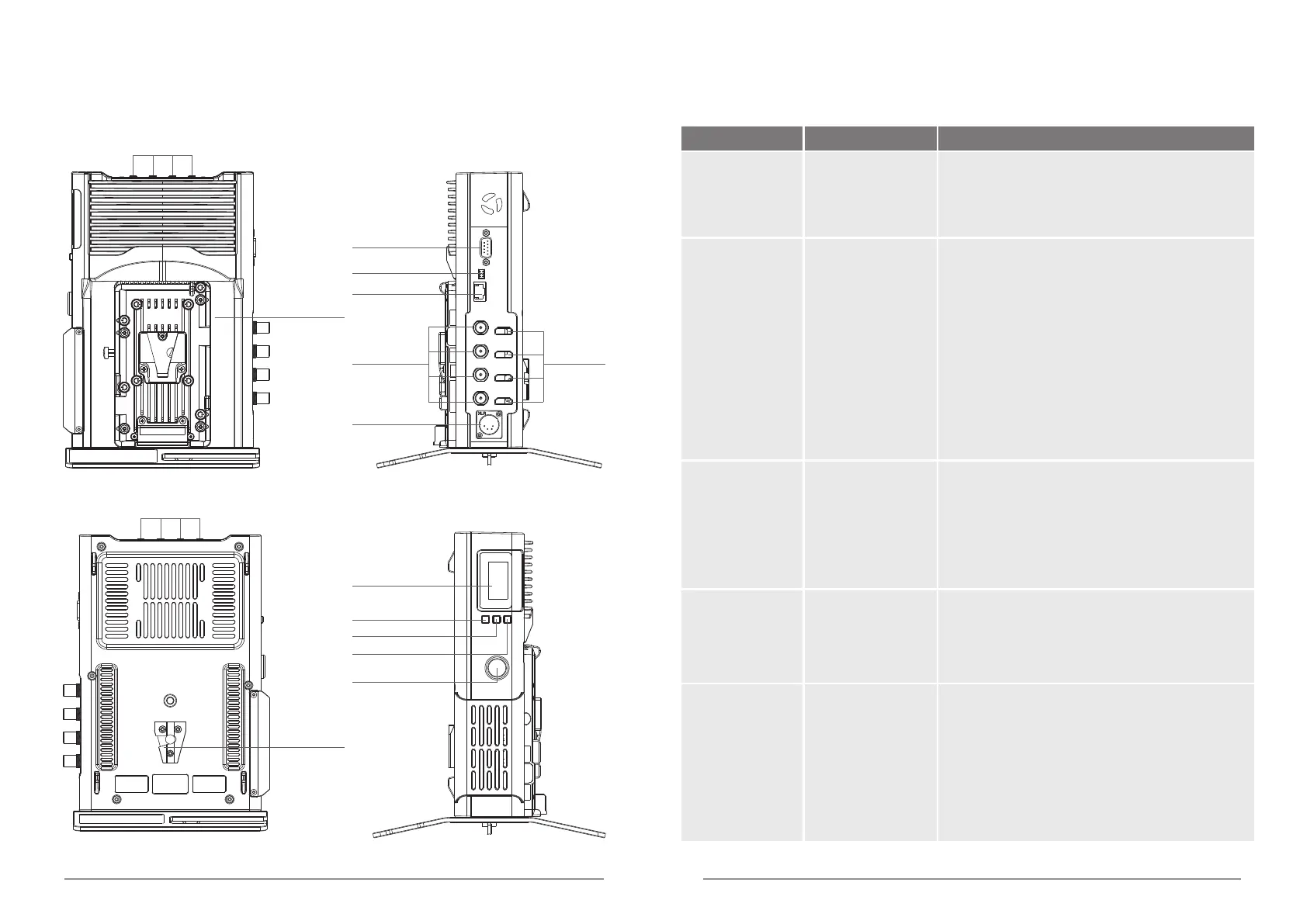

V-Mount
RX: 3060
Antenna Interface
Tally(DB9)
RJ-45
RS232/422
SDI Out
DC-IN
HDMI Out
Antenna Interface
OLED Display
LNA ON/OFF
CH/WPS
Reset
Power Button
Receiver Key Operation
Function
Operation Description
Frequency
channel
switching
Short press
the “CH/WPS”
button about 1S
Channel number increases one cycle from
CH1 to CH11 when each short pressing. After
receiver frequency switching, transmitters
will automatically display the updated channel
number.
Code matching
Press the “CH/
WPS” button for
about 3s
During the code matching process of the
transmitter and receiver, the word “WPS”
will always be blink displayed on the OLED
display, and the string will disappear after
the code matched. The transmitter and
receiver need to be in code matching
status at the same time to achieve
code matching success.
OLED display
switching
between
landscape
mode and
portrait mode
Short press the
“LNA ON/OFF”
button for
about 1s
Short press the “LNA ON/OFF” button,
and the display will switch between
landscape mode and portrait mode.
Reset decode
board
First, short press the
[RESET] button for
cyclical selection
among 1, 2, 3 and 4 to
reset the
correspoding decode
board. Then press
and hold the [RESET]
button for 3s to
confirm the restart.
After long pressing the button to confirm,
the “RESET” string will be displayed on
the OLED display for 3s, and the string
will disappear after the decoding board
begins to reset.
V-mount Plate
High-gain and
low-gain mode
switching
Hold the “LNA
on/off” button for
3 seconds to
switch the mode.
OLED without “L”
letter means
high-gain mode.
OLED with “L”
letter means
low-gain mode.
Line-of-sight scenarios:
TX-to-RX <200m/656ft: L(low-gain)
mode is recommended.
RX-to-LX >=200m/656ft: H(high-gain)
mode is recommended.
None-line-of-sight scenarios
(Human or wall blocking signal):
H(high-gain) mode is recommended.
