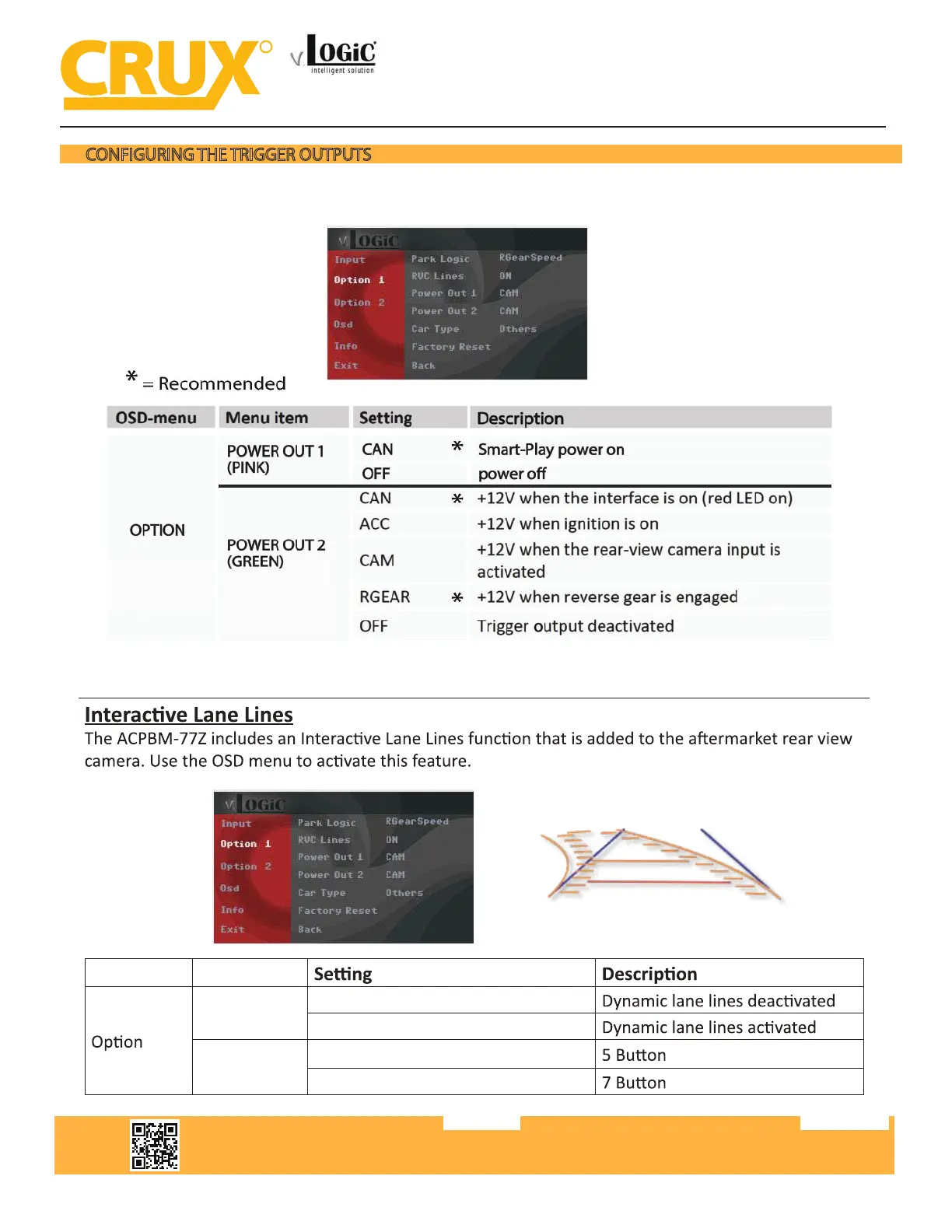

You can congure the +12V trigger outputs in the OSD menu. The PINK wire (12V OUTPUT 1) in for
the SMARTPLAY module. Power Out 2 is for the Cameras.
Tip: We recommend for all cameras to use power out setting “CAN” or RGEAR and for Smart-Play,
power out setting of “CAN”
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.05182022
5 of 15
R
INTERFACING SOLUTIONS
ACPBM-77Z
Smart-Play Integration with Rear-View Camera Input
for F Series BMW with 6.5”, 7”, 8.8”, & 10.25” Monitor and 4+2 LVDS Connector
OSD Menu Menu Item
RVC Lines
OFF
ON
Car Type
LOW
HIGH
CONFIGURING THE TRIGGER OUTPUTS
