Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.091322
15 of 17
R
INTERFACING SOLUTIONS
ACPBM-77Y

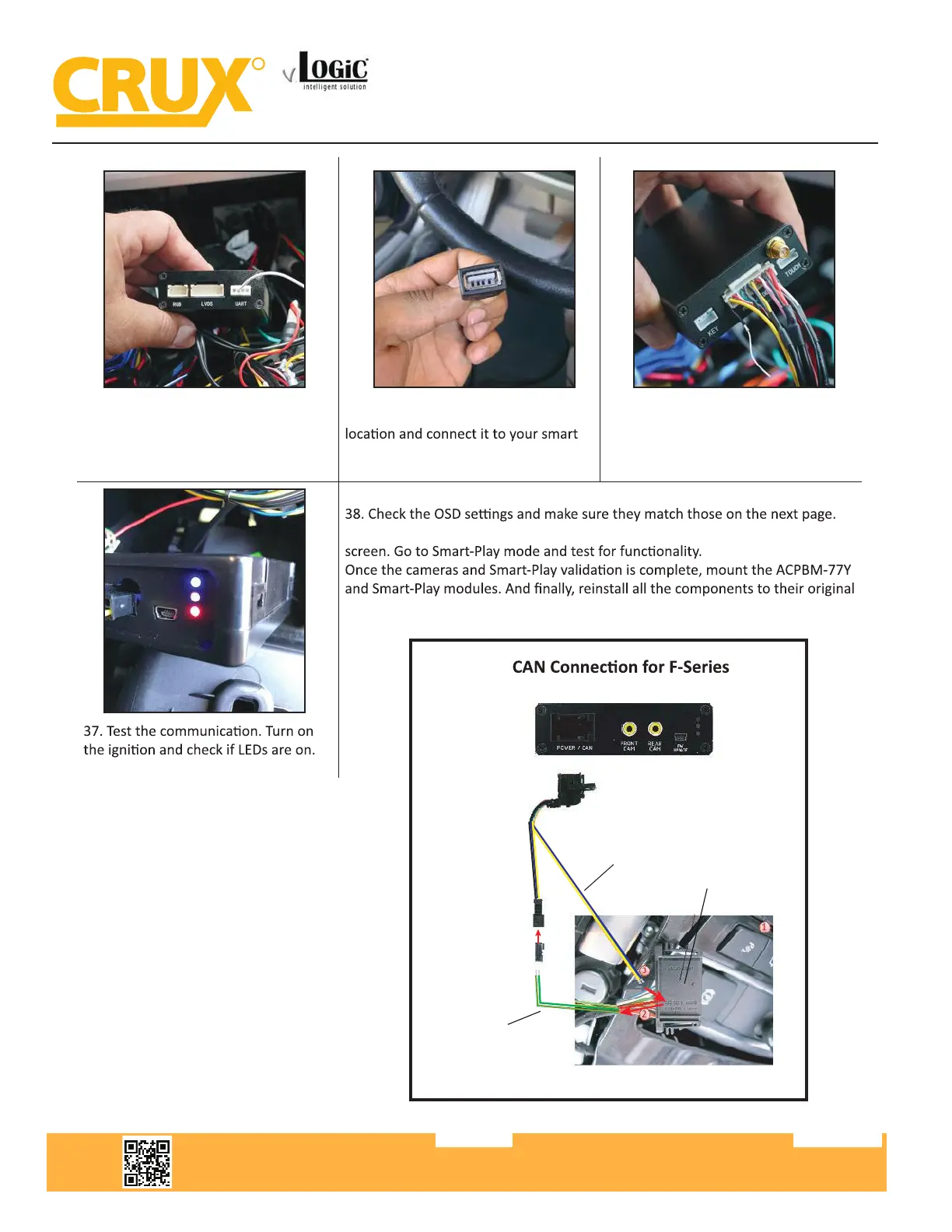

34. Connect the white wire with the
4-pin connector from the Power/CAN
harness to the UART port on the Smart-
Play module.
35. Route the USB cable to a desired
-
phone’s lightning cable.
36. Connect the Power/Video harness
to the POWER/VIDEO port on the
Smart-Play module.
Test the Back-Up camera. Put gear in reverse and check for rear camera image on
set-up.
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems
Female 10-Pin
iDrive Connector
CAN-Low Pin 4 (Green)
CAN-High Pin 3 (Green/Orange)
CAN-Low (Blue)
CAN-High (Yellow)
F-Series
Power/CAN2
Harness
ACPBM-77Y Module
