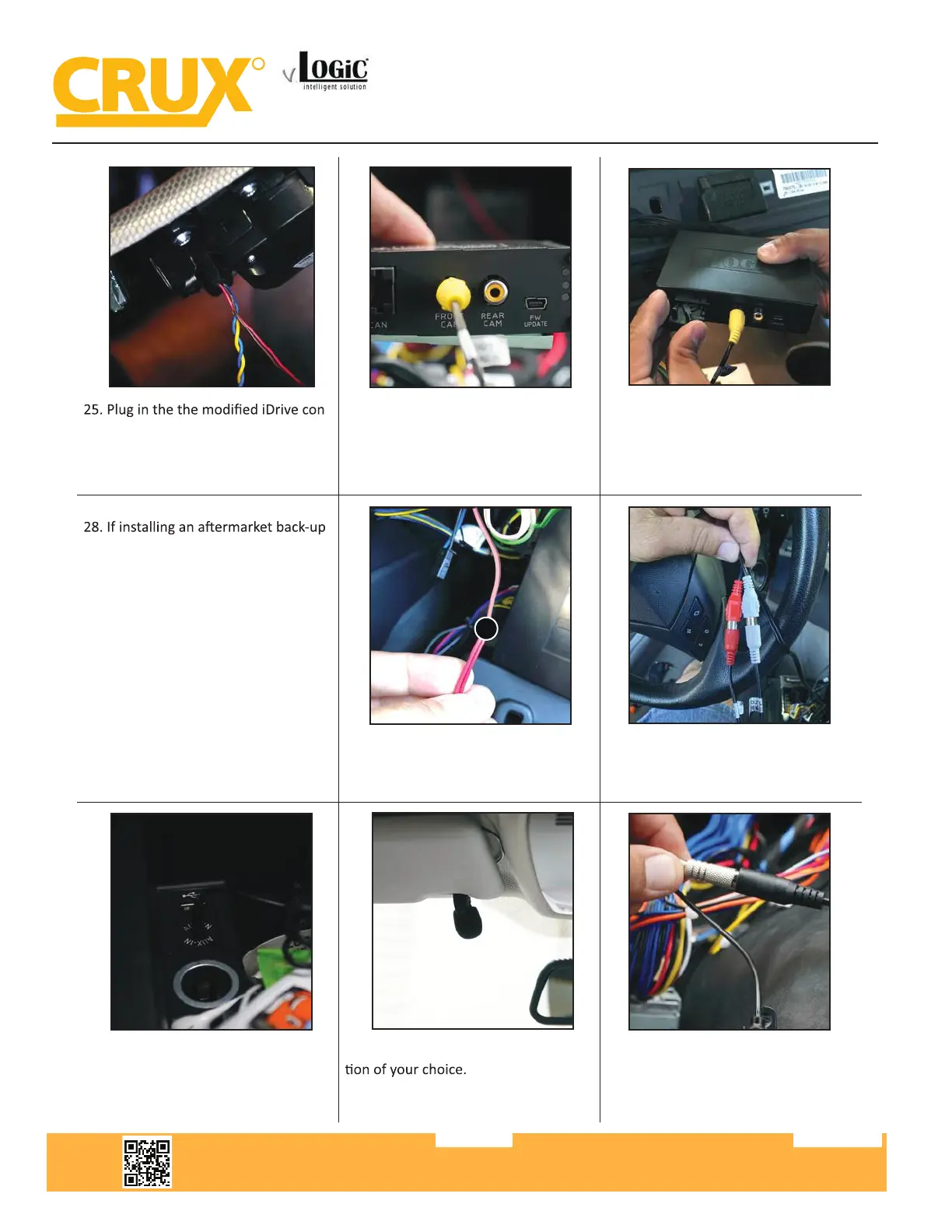

nector back into the port underneath
the iDrive knob.
26. Plug the Video Out from the Smart-
Play Power/Video harness into the
FRONT CAM input on the module.
27. Plug the otherside of the LVDS 1
cable into to the LVDS OUT port on
the ACPBM-77Y module. And plug the
otherside of the LVDS 2 cable into the
LVDS IN port on the same module.
camera, plug the camera’s video out
to the REAR CAM input on ACPBM-77Y
module. Use the PINK power output 1
wire provided on the Power/CAN har-
ness to power the camera. An image
is displayed in step 26. If retaining an
OEM camera or if you’re not installing
a back-up camera, skip steps 25 and 26.
29. Connect the red power wire to the
PINK power output 1 wire.
30. Connect the audio out RCAs from
the Power/Video harness to the RCA
inputs on the 3.5mm to RCA adapter.
31. Plug in the 3.5mm jack into the
vehicle’s factory AUX input.
32. Mount the microphone to a loca-
33. Connect the 3.5mm microphone
jack to the MIC input on the Power/
Video harness.
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.091322
14 of 17
R
INTERFACING SOLUTIONS
ACPBM-77Y
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems
