DALI Lighting Design Guide
4
Doc. 7386H | crestron.com
Emergency and DALI Drivers
Crestron DALI drivers comply with open DALI standards. When the DALI signal is lost or the DIN-DALI-2 override
port is triggered, the driver goes to an emergency state (100% ON by default.) This complies with the National
Electrical Code
®
and Life Safety Code
®
(NFPA 101) standards, as well as many other state and local codes.
In the example below, five of the six fixtures are fed with a normal power source. One of the fixtures is fed with an
emergency power source. The Class I or Class II DALI wiring can loop through normal and emergency fixtures.

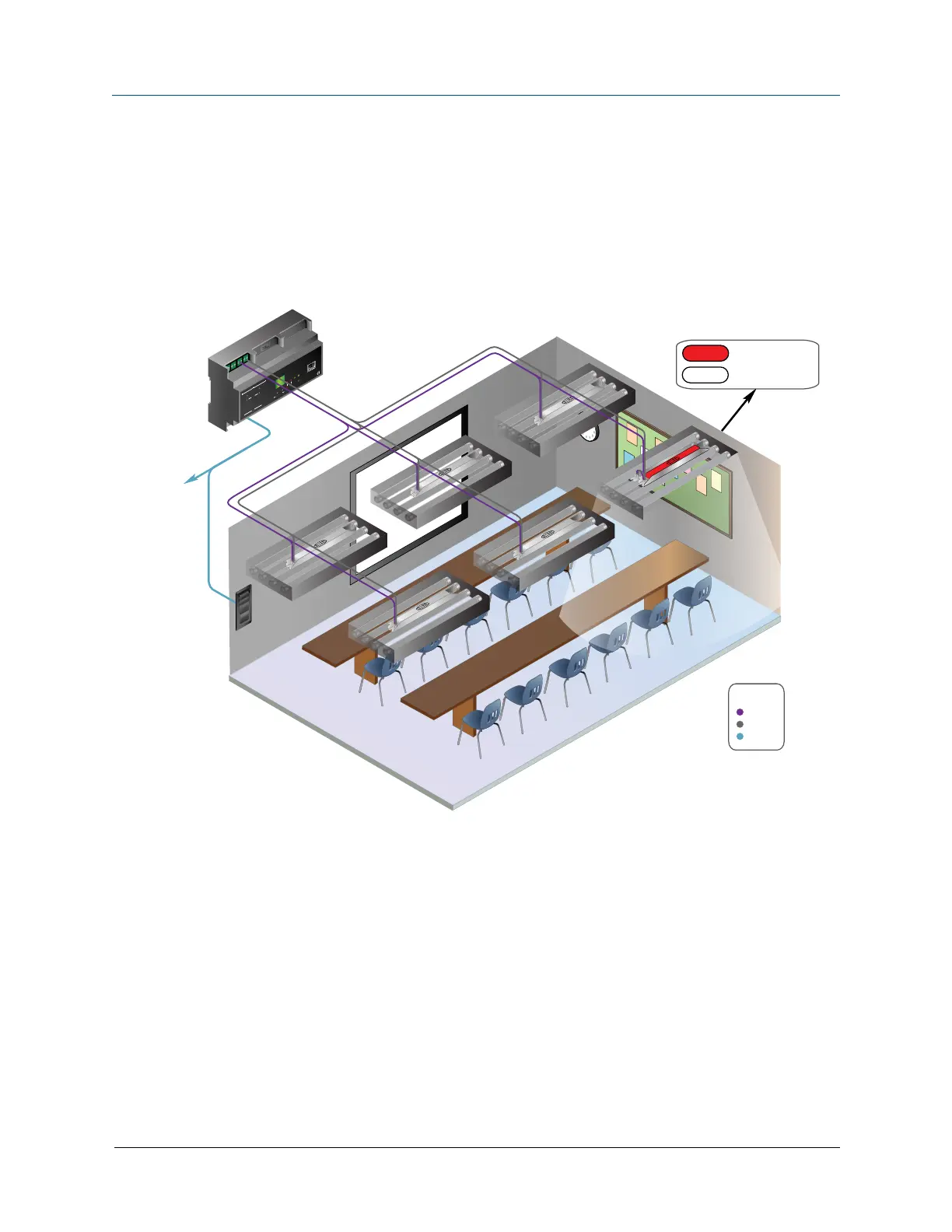

Emergency Driver-Powering Scenario
D
A
L
I
D
A
L
I
D
A
L
I
D
A
L
I
D
A
L
I
COMPUTER
LAN PoE
NET
NET ID
24 Y Z G
24 Y Z G
2-CHANNEL DALI INTERFACE
WITH BUS POWER SUPPLY
DIN-D ALI-2
CRESTRON
SETUP
NET
OVR
PWR
INT EXT
DALI POWER
DALI 1 DALI 2
TEST
OVERRIDE
OVR G OVR G
RESET
+ - + - + - + -
LIGHTS ON
LIGHTS OFF
SHADE
SHADE
Ethernet to
Central Processor
D
A
L
I
DIN-DALI-2
DALI +
DALI -
Color Key
DALI +
Ethernet
DALI -
Emergency Source Fed
Fixture
Normal Source Fed
Fixture
