DALI Lighting Design Guide
20
Doc. 7386H | crestron.com
Training Room
Each light fixture is controlled directly from the grid with each row of lights controlled by a separate channel on the
DALI control system. One channel dims the row closest to the windows while the second channel dims the other
row. Both a photocell and occupancy sensor are connected to the DALI control system for energy savings.

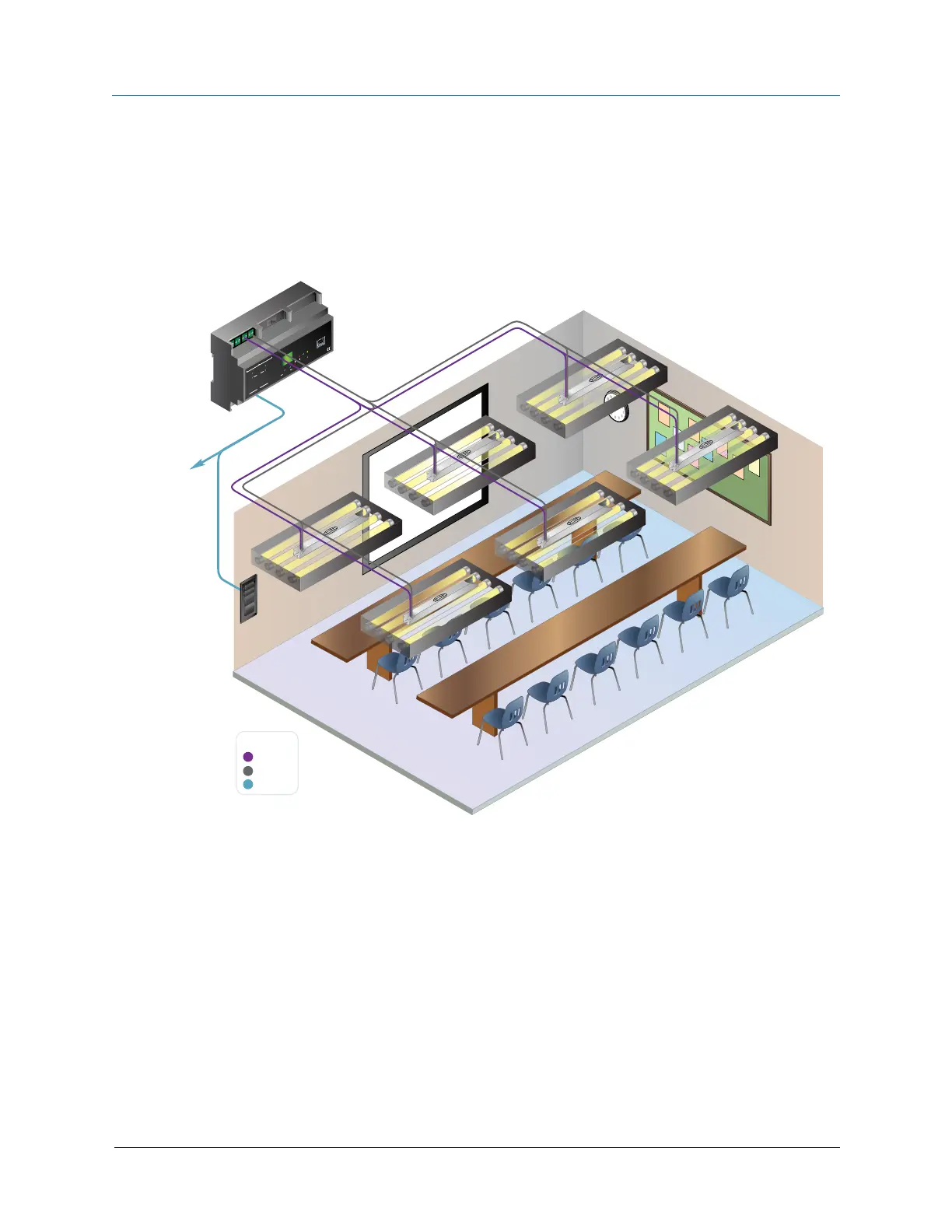

The example below shows how a DALI control system can be utilized in a training room setting.
Training Room Using a DALI Control System
D
A
L
I
D
A
L
I
D
A
L
I
D
A
L
I
D
A
L
I
D
A
L
I
COMPUTER
LAN PoE
NET
NET ID
24 Y Z G
24 Y Z G
2-CHANNEL DALI INTERFACE
WITH BUS POWER SUPPLY
DIN- DALI-2
CRESTRON
SETUP
NET
OVR
PWR
INT EXT
DALI POWER
DALI 1 DALI 2
TEST
OVERRIDE
OVR G OVR G
RESET
+ - + - + - + -
Color Key
DALI +
Cresnet
DALI -
LIGHTS ON
LIGHTS OFF
SHADE
SHADE
Cresnet to
Central Processor
DIN-DALI-2
DALI -
DALI +
