DALI Lighting Design Guide
Doc. 7386H | crestron.com
19
Conference Room
Each light fixture is controlled through the DALI control system. A photocell and occupancy sensor are incorporated
into the system. Keypads connected to the Cresnet bus provide scene recall and zone control.

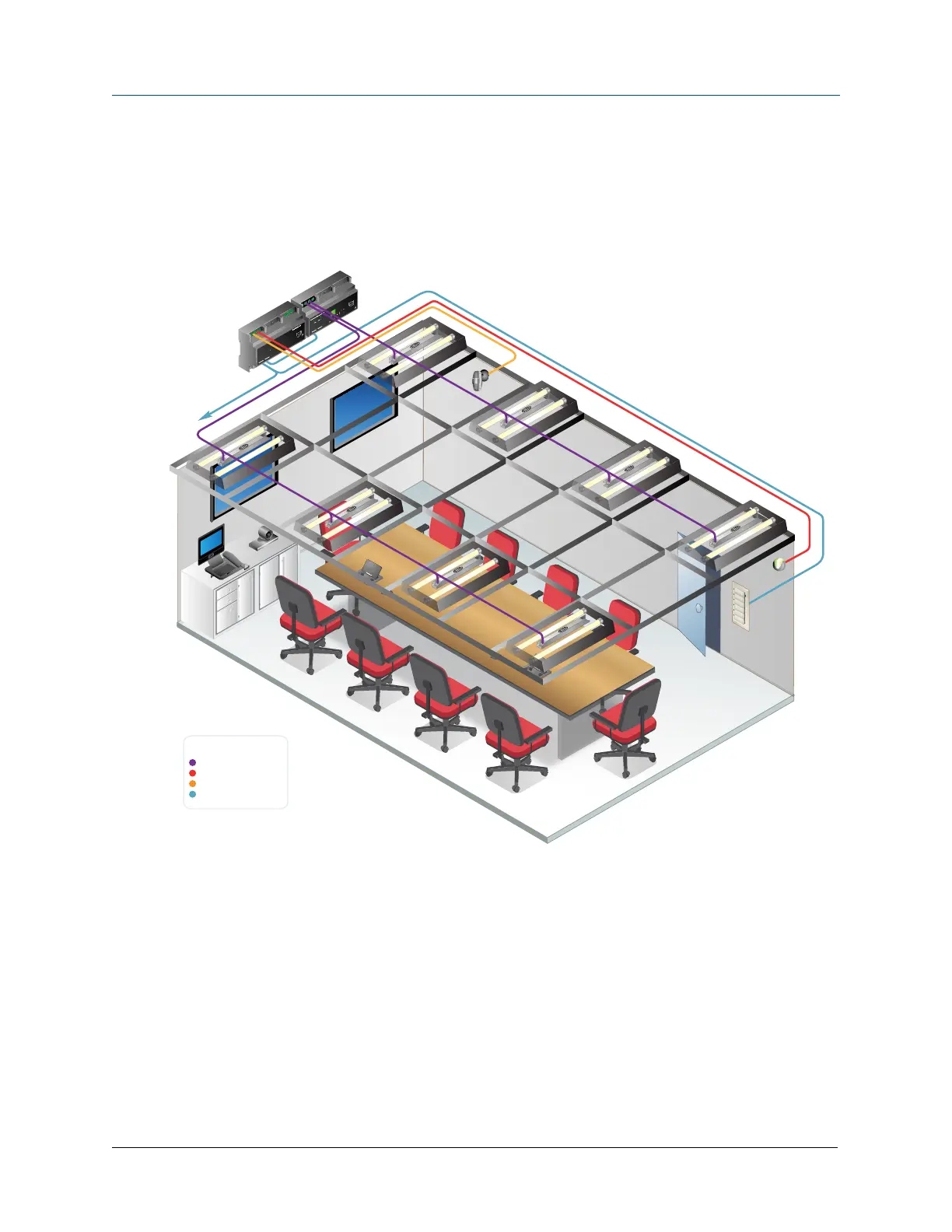

The example below shows how a DALI control system can be utilized in a conference room setting.
Conference Room Using a DALI Control System
POWER CENTER
POWER CENTER
DALI Control
Daylight Sensor
Occupancy Sensor
Cresnet
D
A
L
I
D
A
L
I
D
A
L
I
D
A
L
I
D
A
L
I
D
A
L
I
D
A
L
I
D
A
L
I
DIN-AP3
DIN-DALI-2
COMPUTER
LAN PoE
NET
NET ID
24 Y Z G
24 Y Z G
2-CHANNEL DALI INTERFACE
WITH BUS POWER SUPPLY
DIN-DALI -2
CRESTRON
SETUP
NET
OVR
PWR
INT EXT
DALI POWER
DALI 1 DALI 2
TEST
OVERRIDE
OVR G OVR G
RESET
+ - + - + - + -
IR/SERIAL
S G
S G
S G S G
1
2
3
4
1
2
3
4
RELAYS
COMPUTER
LAN
MEMORY
COM 2
COM 1
NET
G 1 2 3 4 5 6 7 8
I/O
POWER
HW-R
SW-R
MSG
NET
GND
TX
RX
RTS
CTS
GND
TX
RX
RTS
CTS
24 Y Z G
24 Y Z G
2-SERIES
AUTOMATION PROCESSOR
DIN-AP2
CRESTRON
Color Key
DALI Control
Occupancy Sensor
Cresnet
Daylight Sensor
LIGHTS
LIGHTS
TEMP
SHADES
TEMP
SHADES
KEYPAD
Cresnet to
Central Processor
(Optional)
