DALI Lighting Design Guide
Doc. 7386H | crestron.com
17
Individual Office
Daylight and room occupancy sensors can be easily added when a DALI control system is used to control lighting
fixtures.
In the individual office example below, the fixture closer to the window is dimmed lower than the one further from
the window based on the amount of natural light. The photo sensor measures the outdoor light while the
occupancy sensor determines if the room is in use. The Cameo keypad provides the user with control of preset
lighting scenes and dimmer control.

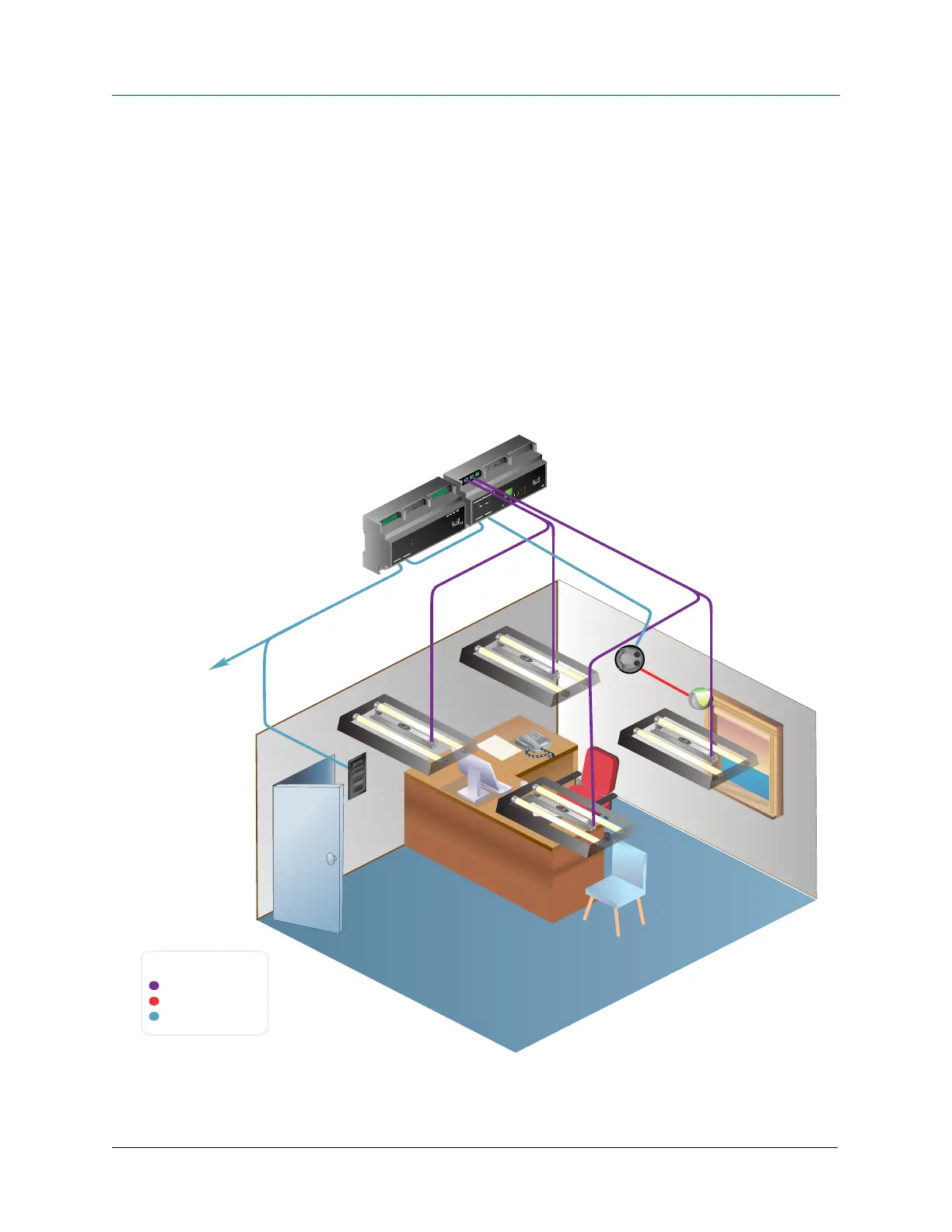

Individual Office Using a DALI Control System
DALI Application Examples
The examples in this section show how a DALI control system can be utilized in an individual office, open office,
conference room, and training room.
Photocell
Sensor
DIN-AP3
DIN-DALI-2
COMPUTER
LAN PoE
NET
NET ID
24 Y Z G
24 Y Z G
2-CHANNEL DALI INTERFACE
WITH BUS POWER SUPPLY
DIN-DA LI-2
CRESTRON
SETUP
NET
OVR
PWR
INT EXT
DALI POWER
DALI 1 DALI 2
TEST
OVERRIDE
OVR G OVR G
RESET
+ - + - + - + -
IR/SERIAL
S G
S G
S G S G
1
2
3
4
1
2
3
4
RELAYS
COMPUTER
LAN
MEMORY
COM 2
COM 1
NET
G 1 2 3 4 5 6 7 8
I/O
POWER
HW-R
SW-R
MSG
NET
GND
TX
RX
RTS
CTS
GND
TX
RX
RTS
CTS
24 Y Z G
24 Y Z G
2-SERIES
AUTOMATION PROCESSOR
DIN-A P2
CRESTRON
D
A
L
I
D
A
L
I
D
A
L
I
Occupancy
Sensor
LIGHTS ON
LIGHTS OFF
SHADE
SHADE
D
A
L
I
Keypad
Cresnet to
Central Processor
(Optional)
Color Key
DALI Control
Cresnet
Daylight Sensor
DALI Control
Cresnet
DALI Control
