REFRIGERATED BASES & PIZZA PREP TABLES
OPERATIONS MANUAL
DOOR ADJUSTMENT
All doors are aligned at the factory, however vibration during
transit may cause them to shift and adjustment may be neces-
sary. If a door requires realignment, carefully open the door
(90°) and loosen, but do not remove the mounting screws
securing both the top (see Figure 6) and bottom (see Figure
8) hinge brackets to the cabinet. Move the door to the desired
position by hand or by gently tapping on the edge with a rubber
mallet. Hold the door firmly in place and tighten all mounting
screws securely, above and below the door. Check alignment
and repeat adjustment if necessary.
HINGE TENSION ADJUSTMENT
The self-closing doors on your unit have a spring-loaded hinge
cartridge concealed in the door (see Figure 7) with a hold-open
feature and a cushioned stop. When the door is fully opened
(115°) the hinge should be tension free. When the door is
moved between the open and closed position, the spring-loaded
hinge will automatically rotate the door toward the closed posi-
tion. For proper operation, self-closing doors must be installed
with the spring-loaded hinge mechanism set to apply tension in
the proper direction (see Figure 8).
To adjust spring tension, open the door fully (115°) so it stays
in position when released. Remove the mounting screws secur-
ing the cartridge bracket to the cabinet (see Figure 6). The
bracket should stay in position when released, but if it is moved
or bumped, it may snap into the closed position.
THE HINGE CARTRIDGE IS SPRING LOADED AND MAY
SNAP BACK ON FINGERS WHEN BRACKET IS LOOSE.
WEAR WORK GLOVES AND USE CAUTION WHEN
REMOVING MOUNTING SCREWS!!
A
LEG
LEG INSTALLATION
BLOCKS
THREADED
END
TURN FOOT CLOCKWISE
TO REDUCE HEIGHT, OR
COUNTERCLOCKWISE
TO INCREASE HEIGHT.

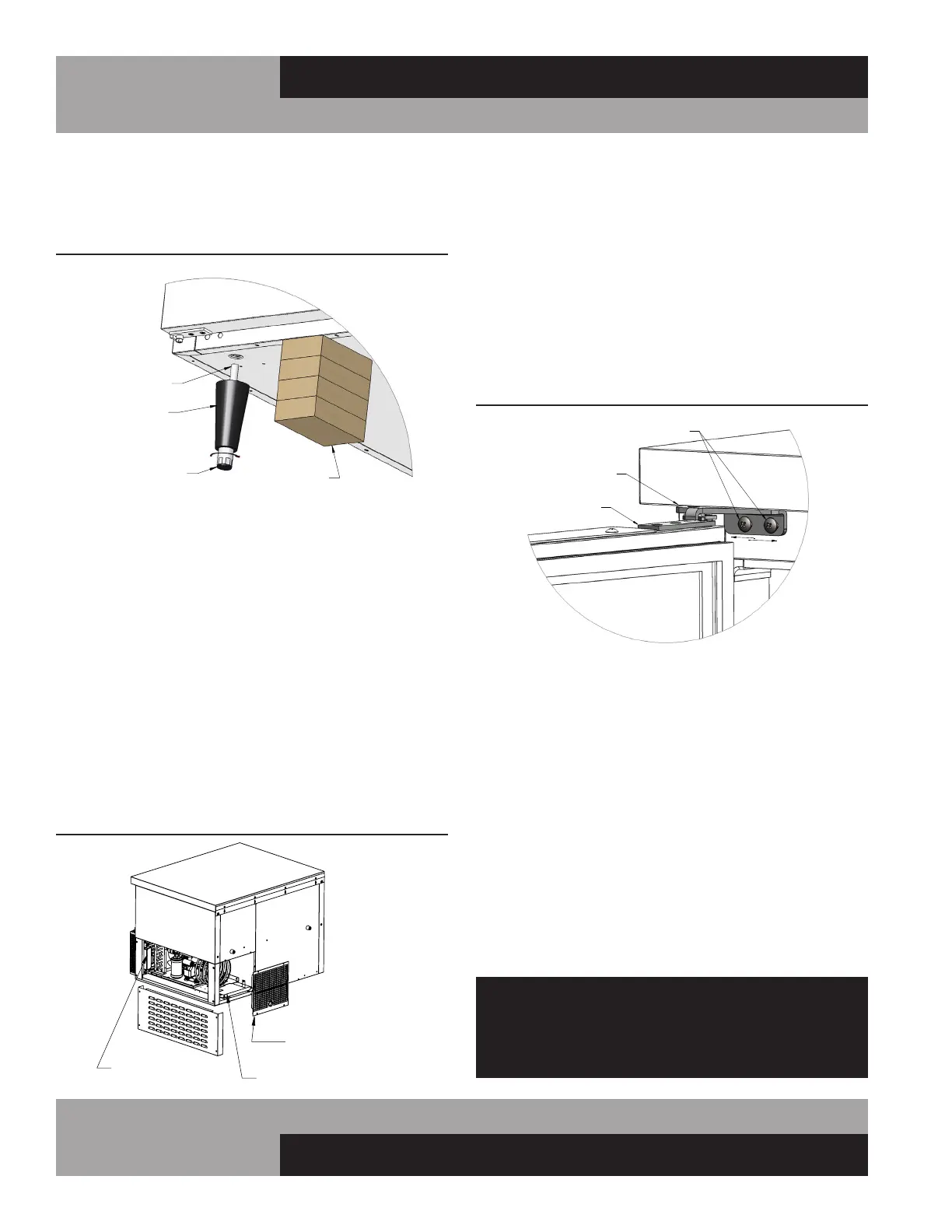

FIGURE 6: Hinge Adjustment
To assure your cabinet is level, all legs are equipped with bullet-
type leveling bolts. These bolts can be turned by hand or by
wrench, clockwise or counterclockwise to level the cabinet.
CONDENSATE REMOVAL
All models utilize a unique hot air condensate water evaporat-
ing system which is completely self-contained and no further
assembly or maintenance is required (see Figure 5). In some
adverse conditions such as high ambient temperature, high
humidity, extremely heavy usage, frequent loading for prolonged
periods of time, or heavy pan loading, the amount of conden-
sate water generated could overflow the pan. If this occurs, the
plastic drain tube from the cabinet can be diverted directly to
a floor drain, bypassing the condensate pan. Alternatively, an
optional electric condensate heater may be purchased as an
accessory. An electric condensate heater is also supplied with
all remote models. To install the electric heater, see “Installing
Electric Condensate Heater” in the “Optional Accessories”
section at the back of this manual.
FIGURE 4: Leg Installation
FIGURE 5: CPA/CRA Components (Rear View)
DC POWER SUPPLY
(WHEN EQUIPPED)
DRAIN PAN
REMOVE SCREWS FROM
ACCESS PANEL AND
LIFT OFF TO REMOVE
FIGURE 5A: CPA/CRA Components
(Rear Veiw)
