4
REACH-INS & ROLL-INS
OPERATIONS MANUAL
After skid removal, the cabinet should never be moved without
dollies or rollers to avoid damage to the cabinet bottom or floor.
IMPORTANT NOTE: Do not under any circumstances, lay
your new model on its front or sides. For a brief period
of time, you may lay the cabinet on its back, but only
when it’s properly blocked so as not to crush the back
or end panels and also to allow provision for your hands,
in order to set it in its upright position without damaging
the cabinet. Do not plug in and operate model for at
least three (3) hours after cabinet is set upright from
being on its back as this can damage the compressor.
MODEL COMPONENTS
Standard Reach-In refrigerators and freezers have an internal
evaporator coil located behind the fan panel on the inside ceil-
ing of the refrigerated compartment (see Figure 2). Designer
Line Reach-In, as well as all Pass-Thru, Roll-In and Roll-Thru
refrigerators and freezers have an insulated housing located on
top of the cabinet, that contains the evaporator coil, out of the
refrigerated storage area (see Figure 2A & 2B).
All warmers have an insulated housing located on top of the
unit, that contains a blower fan to circulate warm air inside the
cabinet (see Figure 2C). On most models, the high-wattage,
finned electric heating elements are located inside the cabinet,
at the bottom of the interior side walls. On single-section Roll-In
and Roll-Thru models, the heating elements are located in the
housing on top of the unit, to optimize space for carts inside
the cabinet.

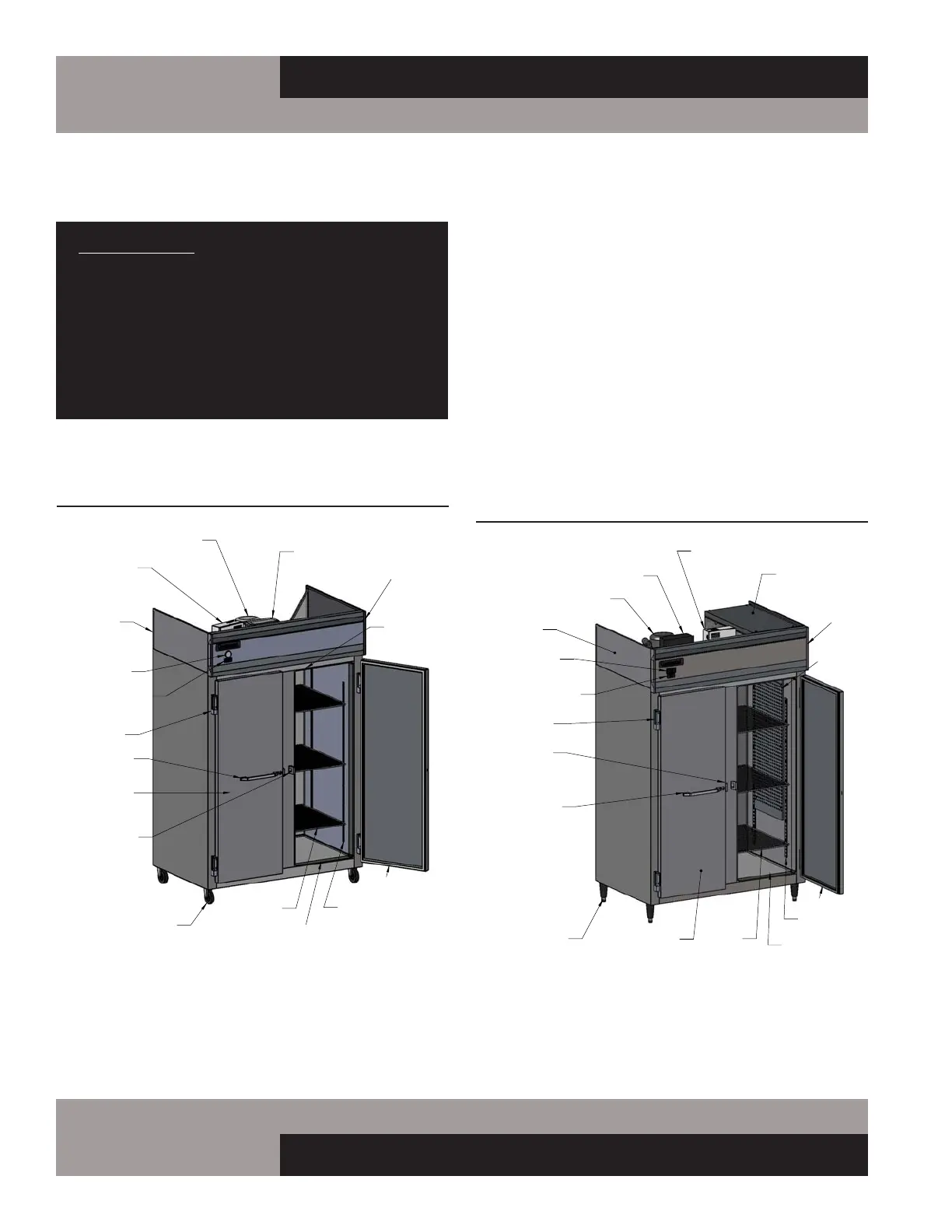

FIGURE 2A: Designer Line Reach-In or Pass-Thru
Refrigerator or Freezer
DOOR HANDLE
LOCK KEEPER
PILASTER STRIP
SWITCH
CONTROL BOX
(CONTAINS COIL
AND FANS)
ADJUSTABLE LEGS
ANTI-CONDENSATE
CONDENSER
COMPRESSOR
GRILL
UPPER
THERMOMETER
DIGITAL
HEAVY DUTY
DOOR HINGE
AIR
DUCT
END PANEL
SHELFDOOR
EVAPORATOR
HOUSING
BREAKER STRIP
(RETAINS
ANTI-CONDENSATE
HEATER WIRES)
DESIGNER LINE COMPONENTS
GASKET
DOOR
FIGURE 2: Standard Reach-In Refrigerator or Freezer
VALUE LINE COMPONENTS
DOOR HANDLE
DOOR
SWIVEL CASTERS
ANTI-CONDENSATE
CONTROL BOX
COMPRESSOR
UPPER
CONDENSER
LOCK KEEPER
GASKET
THERMOMETER
GRILL
PILASTER STRIP
SHELF
DOOR
END PANEL
DIAL
SWITCH
DOOR HINGE
EVAPORATER
HOUSING
(CONTAINS
COIL AND
FANS)
BREAKER STRIP
(RETAINS ANTI-SWEAT
CONDENSATE HEATER WIRES)
