OPERATIONS MANUAL
REACH-INS & ROLL-INS
WARMER WITH AXIAL FANS
Heaters Inside Cabinet; Fan in Housing on Top of Cabinet
The unique plug-type heating system used on most warmer
models have heating elements located inside the cabinet storage
area (see Figure 9C). An axial fan is contained within a plug-type
insulated housing, readily accessible on the top of the cabinet,
for even temperature distribution. The insulated housing on all
models can easily be removed from the cabinet for locations
with restricted access for installation. Before attempting to
remove any housing assembly, consult the factory.

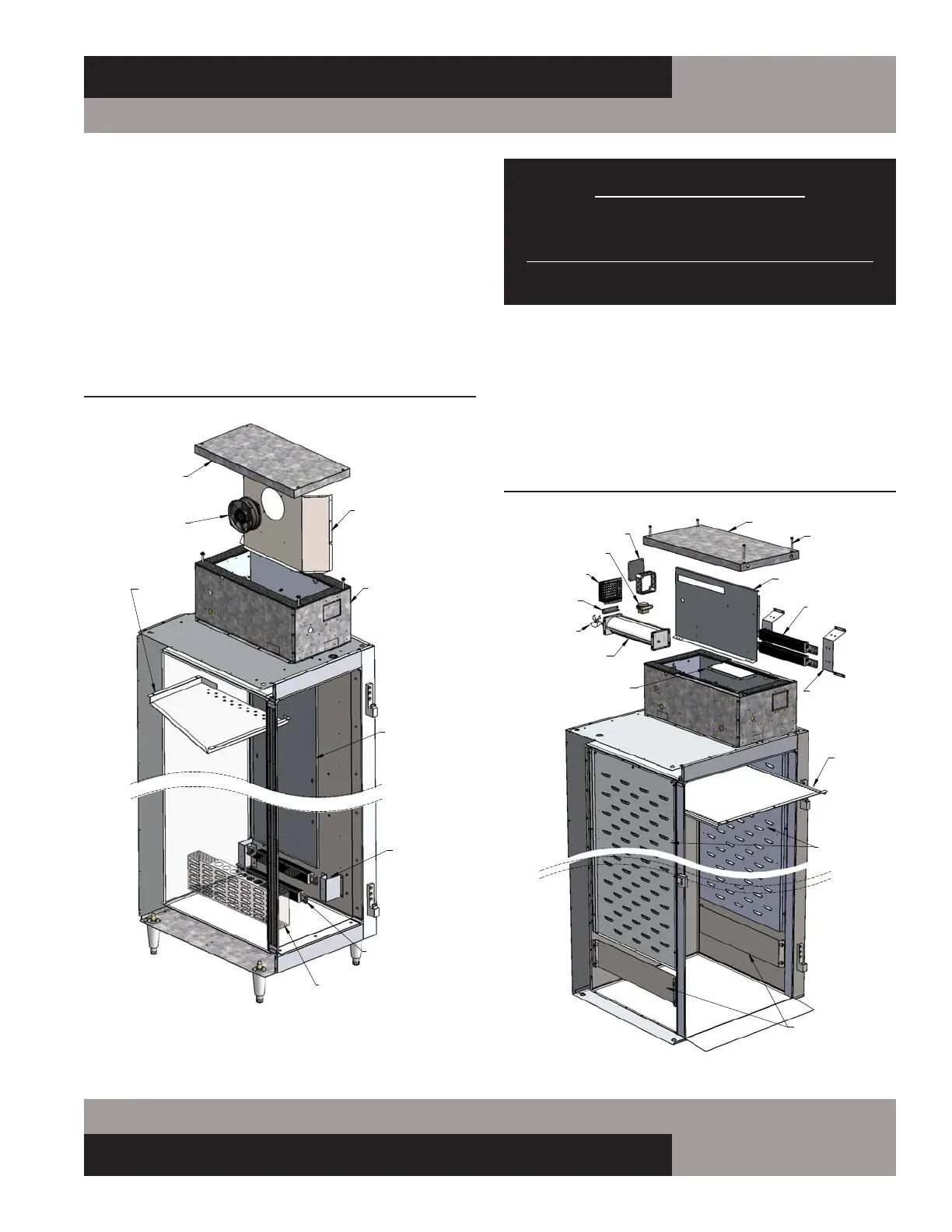

FIGURE 9C: Warmer Heating System with Axial Fans
WARMER SYSTEM W/AXIAL FAN
BAFFLE
AIR DUCT
HEATER COVER
FINNED STRIP
HEATER
HOUSING
LID
FAN
FAN PANEL
FAN
TOP
MOUNTING
BRACKET
FIGURE 9D: Warmer with Top-Mount Heaters and Blower
FAN GUARD
BLOWER
COOLING
FAN
1-SEC ROLL-IN WARMER COMPONENTS
BRACKET
HEATER
LID
ELECTRICAL
BOX & COVER
BAFFLE
BRACKET
HEATER
AIR BLOCK
CART GUARD
TOP
DUCT
SIDE DUCTS
TRANSFORMER
LID
SCREWS
IMPORTANT WARNING:
Heating Element Cover Hot!
Do Not Touch or place food next to or on heater cover.
Do not store combustible material inside cabinet.
ROLL-IN WARMER WITH BLOWER
Heaters and Blower in Housing on Top of Cabinet
For maximum storage on single-section Roll-In and Roll-Thru
models, the heating elements are contained within the insulated
plug-type housing on top of the cabinet, along with a cross-flow
blower, for even air circulation (see Figure 9D).
