REACH-INS & ROLL-INS
OPERATIONS MANUAL
115/208-230 VOLT, 60 HZ, 1 PHASE CONNECTION
All 115/208-230 volt models are provided with three (3) sup-
ply wires, which exit the electrical box located in the machine
compartment rear, next to the compressor. The cabinet circuitry
is 115 volts and the condensing unit operates on 208-230 volts.
A permanently connected, 3-wire (plus ground) power supply is
required, consisting of (2) hot conductors and (1) neutral wire,
plus (1) ground wire. The supply leads must be connected to
the appropriate leads from the cabinet and the supply ground
wire must be attached to the electrical box with a ground lug
to provide proper grounding of the metal cabinet and chassis.
All wiring and connections should only be made by a qualified
electrician and must conform to all local electrical codes.
SPECIAL VOLTAGE CONNECTIONS
When models are ordered from the factory with special voltages,
connections should be made as required on the electrical wiring
diagram provided next to the electrical control box.
START-UP CHECKLIST
After your unit has been installed and electrically connected in
accordance with this manual, please take time to check the fol-
lowing before loading product, to assure trouble-free operation:
q Sufficient clearance and ventilation provided around
cabinet (see “Ventilation”)
q Unit connected to separate power supply at correct
voltage (see “Electrical Connections”)
q Cabinet is level and casters/legs are tight
(see “Installation and Location”)
q Doors close and seal properly
(see “Door Removal and Adjustment”)
q Cabinet operating at correct temperature
(see “System and Adjustment”)
q Thermometer properly calibrated
(see “Thermometer and Calibration”)
q Condensate vaporizer installed correctly
(see “Condensate Removal”)
q All refrigeration lines free of kinks and excess vibration
(see “Refrigeration System”)
q Condenser and evaporator fans rotate freely
(see “Refrigeration System”)
q Freezers only: defrost time clock set correctly
(see “Freezer System and Adjustment”)
q All pilaster clips installed securely and shelves are level
(see “Shelving Installation”)
q All packing materials discarded and cabinet properly
cleaned (see “Periodic Cleaning”)
(GFCI or GFI). These devices are not recommended for most
commercial refrigerators and freezers, since nuisance trips can
occur (typically due to moisture) causing temporary loss of
power. This may result in high storage temperatures and poten-
tially unsafe food product. If you connect your equipment to a
GFCI protected receptacle, a properly sized, commercial grade
circuit breaker should be used on a separate, power supply.
Alternatively, a qualified electrician may be able to hard wire
your equipment, eliminating the need for a GFCI device. Contact
Continental’s Service Department before making any modifica-
tions to your cabinet, to avoid loss of warranty.
GFCI devices are not recommended. Product loss and/or prob-
lems resulting from nuisance trips or connection to a defective
or improper power supply, are not covered under warranty.
Unauthorized modifications to your equipment or power cord
can cause an electrical hazard and will void factory warranty.

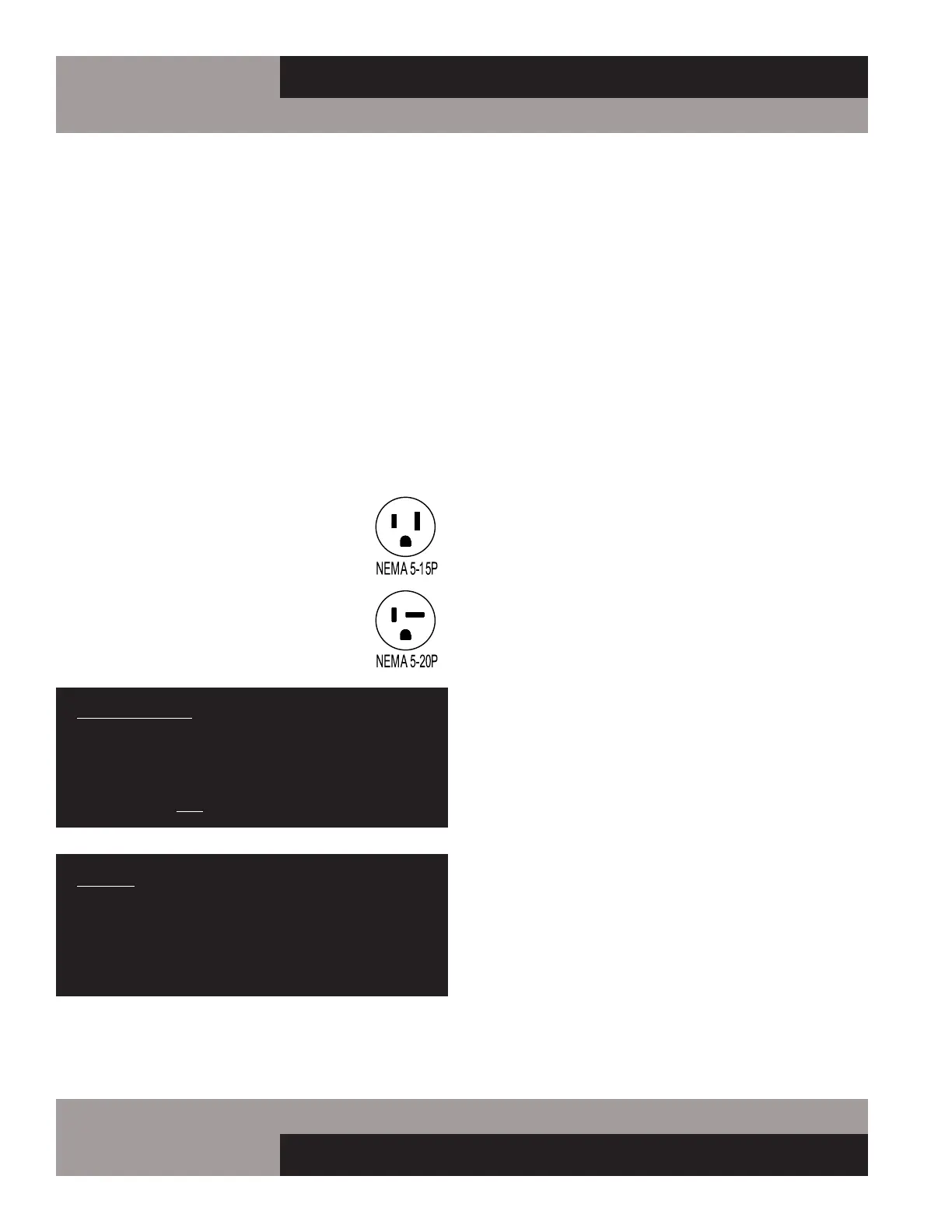

115 VOLT, 60 HZ, 1 PHASE CONNECTION
All 115 volt models are provided with a factory
installed, UL 15-amp power cord and NEMA
5-15P plug, or a 20-amp cord with NEMA 5-20P
plug. Your unit must be plugged into a compat-
ible, grounded receptacle that can supply the full
voltage and amperage stated on the serial plate
(see Figure 1).
IMPORTANT NOTE: A SEPARATE, ISOLATED, PROPERLY
SIZED POWER SUPPLY MUST BE PROVIDED. GFCI
DEVICES AND/OR EXTENSION CORDS SHOULD NOT
BE USED. PRODUCT LOSS, AS WELL AS PROBLEMS
RESULTING FROM NUISANCE TRIPS OR HIGH/LOW
VOLTAGE, ARE NOT COVERED UNDER WARRANTY.
CAUTION: IF UNIT IS UNPLUGGED OR DISCONNECTED
FOR ANY REASON, ALLOW 5-6 MINUTES BEFORE
TURNING THE UNIT BACK ON TO ALLOW THE SYSTEM
TO EQUALIZE. DISREGARDING THIS PROCEDURE
COULD CAUSE AN OVERLOAD AND PREVENT THE UNIT
FROM OPERATING.
