5. Operation Controls and Functions

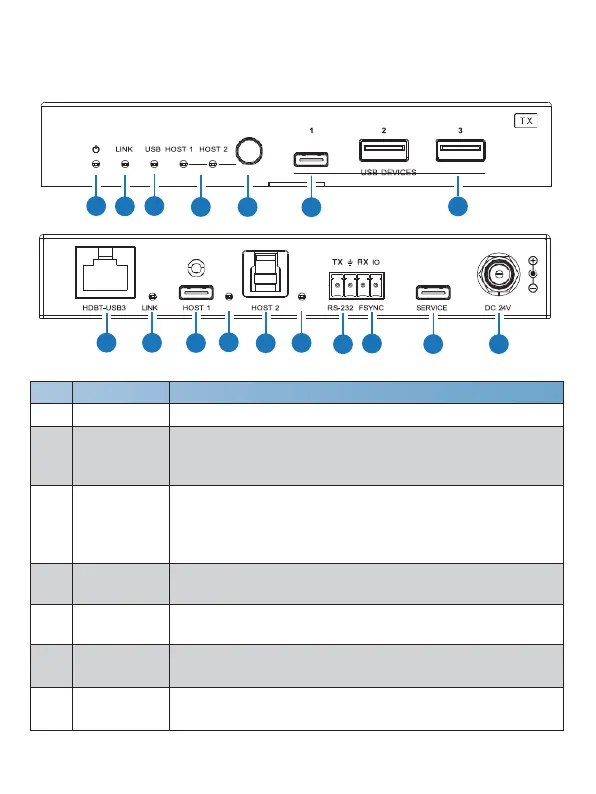

5.1 Transmitter Panel

No.

Name

Function Description

1

Power LED

The LED will be on when the transmitter is powered on.

2

LINK LED

Connection signal indicator.

▪ On: Transmitter and Receiver are connected and linked.

▪ Off: Transmitter and Receiver are not connected.

3

USB LED

USB signal indicator.

▪ On: USB 3.0 signal is detected.

▪ Blinking: USB 2.0 signal is detected.

▪

Off:

USB signal is not detected.

4

HOST (1~2)

LED

When HOST 1/2 is selected, the corresponding LED will be on.

5

HOST switch

button

Press this button to switch between HOST 1 and HOST 2.

6

USB DEVICES

(1)

Downlink USB-C port, connected to USB devices such as U disk

or hard disk. Its output power is up to 5V/1A.

7

USB DEVICES

(2~3)

Downlink USB-A port, connected to USB devices such as U disk

or hard disk. Its output power is up to 5V/1A.
