Exhaust Hood Requirements
The Gemini gas steamer MUST be installed under a suitable ventilation hood as required by the
National Fuel Gas Code, ANSI Z223.1/NFPA 54. The venting hood system must also include an
interlock to prevent the operation of this steamer without the operation of the ventilation hood.
The exhaust hood must extend over the gas flue opening on top of the steamer and meet the
following requirements:
1). The Gemini gas steamer must be vented in accordance with all local, state and national
codes for venting gas fired appliances.
2). The exhaust hood must be sized for the cumulative ventilation requirements of all the gas-
fired appliances in the area including the Gemini. Figures 2-1, 2-2, 2-3 and 2-4 contains the
dimensions, gas flow, and BTU per hour data required to calculate the minimum required
hood dimensions and minimum ventilation capacity (c.f.m.) for the Gemini 6 and 10 pan
steamers.
3). Do not connect the exhaust hood directly to the flue outlet of the steamer.
4). If an existing hood cannot be used, a new one should be constructed over the steamer.
b. Positioning and Leveling the Steamer
NOTE: If there is not enough room to work on the drain, electrical, gas and water lines with the
unit in place, postpone positioning and leveling the unit until all site preparation is
completed. After the lines are prepared, position and level the steamer then connect the
utility lines.
Move the steamer into position. Using a level, adjust the adjustable legs until the unit is level.
2. Install Slide Racks
a. Refer to Figure 2-5. Each rack has four
loops: two at the top and two at the bottom.
Hold the slide rack so the ends of the
hanger loops are towards the cavity wall, as
shown in the figure.
b. Slide one rack into the compartment with
loops toward one side.
c. Hook the loops over the top and bottom pins.
d. Repeat steps a. through c. for the other
racks.

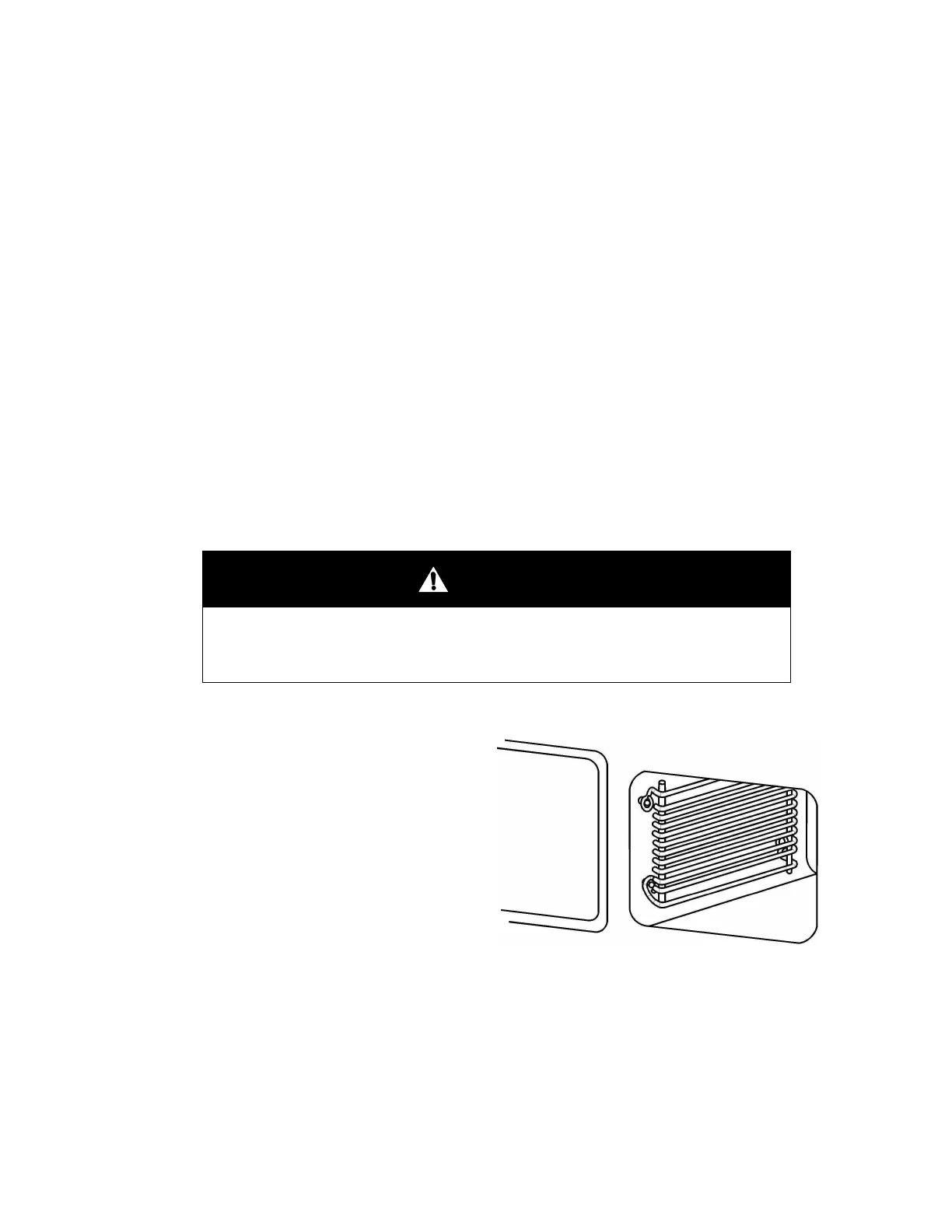

Figure 2- 5 Slide
Rack Installation
WARNING
INJURY AND EQUIPMENT DAMAGE could result from improper lifting. A Gemini
Steamer weighs approximately 545 pounds. Use enough workers with experience
lifting heavy equipment to place the steamer on the supporting surface
