3. Drain Installation for Models 24CGA6.2SES & 24CGA10.2ES (high efficiency) Only
Furnishing and installing the drain line is the responsibility of the owner and/or installer. Figure 2-7 illustrates
a drain layout recommended by Cleveland Range.
1. The drain lines must be installed in compliance with the Food Service Sanitation Manual of the
Food and Drug Administration (FDA) and WITH THE applicable Federal State, or Local plumbing
codes.
2. Do not install the steamer directly over a drain. Steam rising up out of the drain will adversely
affect operation, cooling air ventilation and may damage electrical components.
3. The total length of pipe and number of bend fittings required to reach the open drain determines
the pipe size used to extend the drain line to an open drain.
•
If the drain outlet extension requires 6 feet or less of pipe, and no more than two elbows are
required, 1- ½ inch ID pipe and fittings are acceptable.
•
If the drain outlet extension requires 6 to 12 feet of pipe, or requires three or more elbows,
2-inch ID pipe and fittings are required.
4. The drain line must have a gravity flow from the steamer drain
outlet to the floor drain. Do not install a trap in the drain line.
5. Free air venting requires a minimum of 1 inch of clearance
between the end of the drain line and the top of the floor drain.
6. Do not connect the steamer drain directly to drains or
plumbing of any other equipment.
7. Connect the drain to the steamer as described below:
•
The steamer is supplied with a 2 in tube connection at
the bottom of the unit and a no-hub connector, included
(Figure 2-7).
•
When assembling the pipes and fittings of the drain
outlet extension, apply a hardening type pipe sealant to
the threads, and thread them together FINGER TIGHT
ONLY. DO NOT USE A WRENCH.
REAR DRAIN
1" CLEARANCE
MINIMUM
DRAIN
D
DRAIN LINE

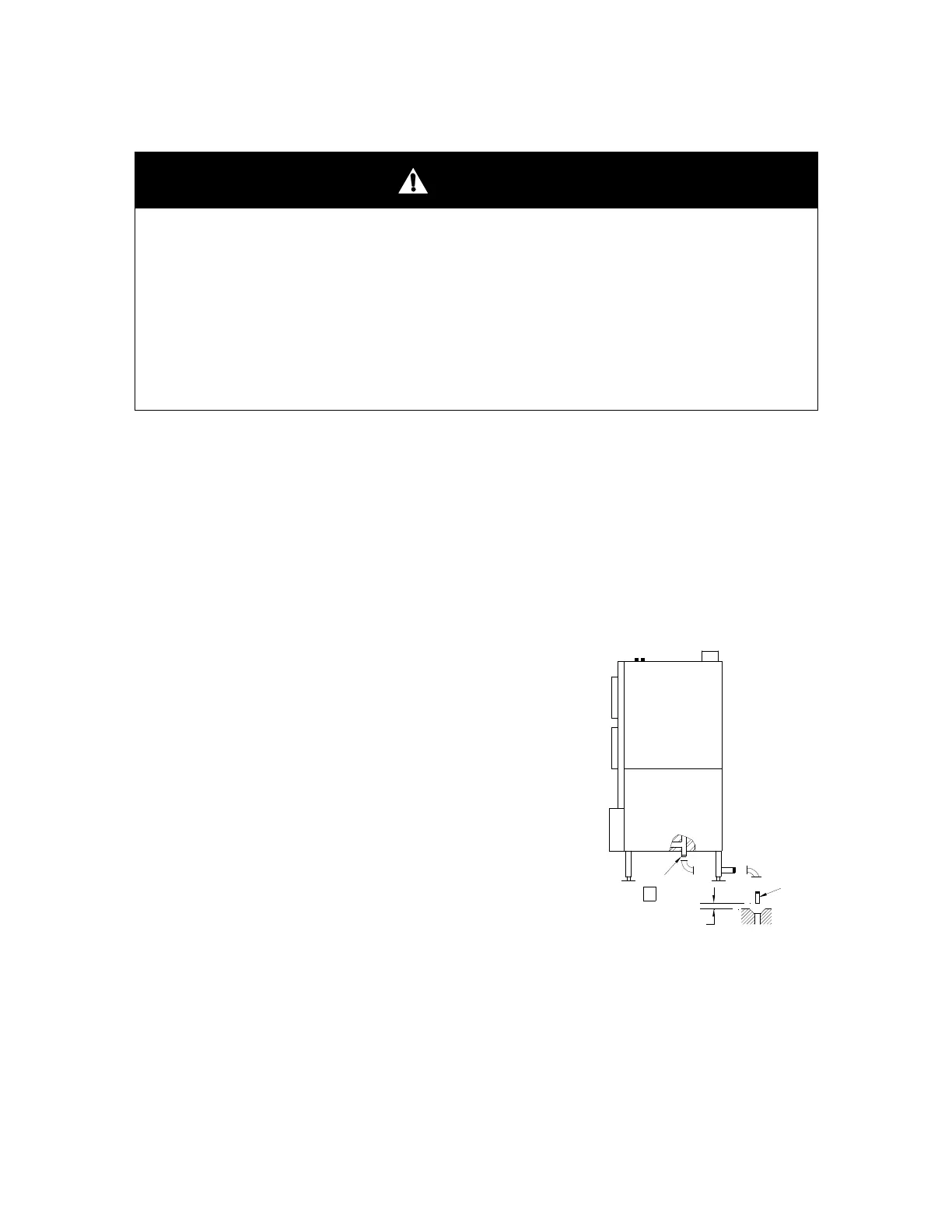

Figure 2-7
Typical Drain Connection
WARNING
DEATH, INJURY, AND EQUIPMENT DAMAGE could result from improper installation of
the drain outlet lines.
Improper installation of these lines could void the Gemini Steamers warranty. The following
restrictions are critical to the safety of personnel and equipment, and must not be violated
under any circumstances.
Do not connect the drain line into any drain material that cannot sustain 140
o
F.
Do not connect drains from any other equipment to the drain line of the Gemini Steamer.
Do not connect the drain outlet extension line directly to a floor drain or sewer line.
The drain line must be free air vented, have gravity flow from the steamer, and terminate
outside the perimeter of the unit.
