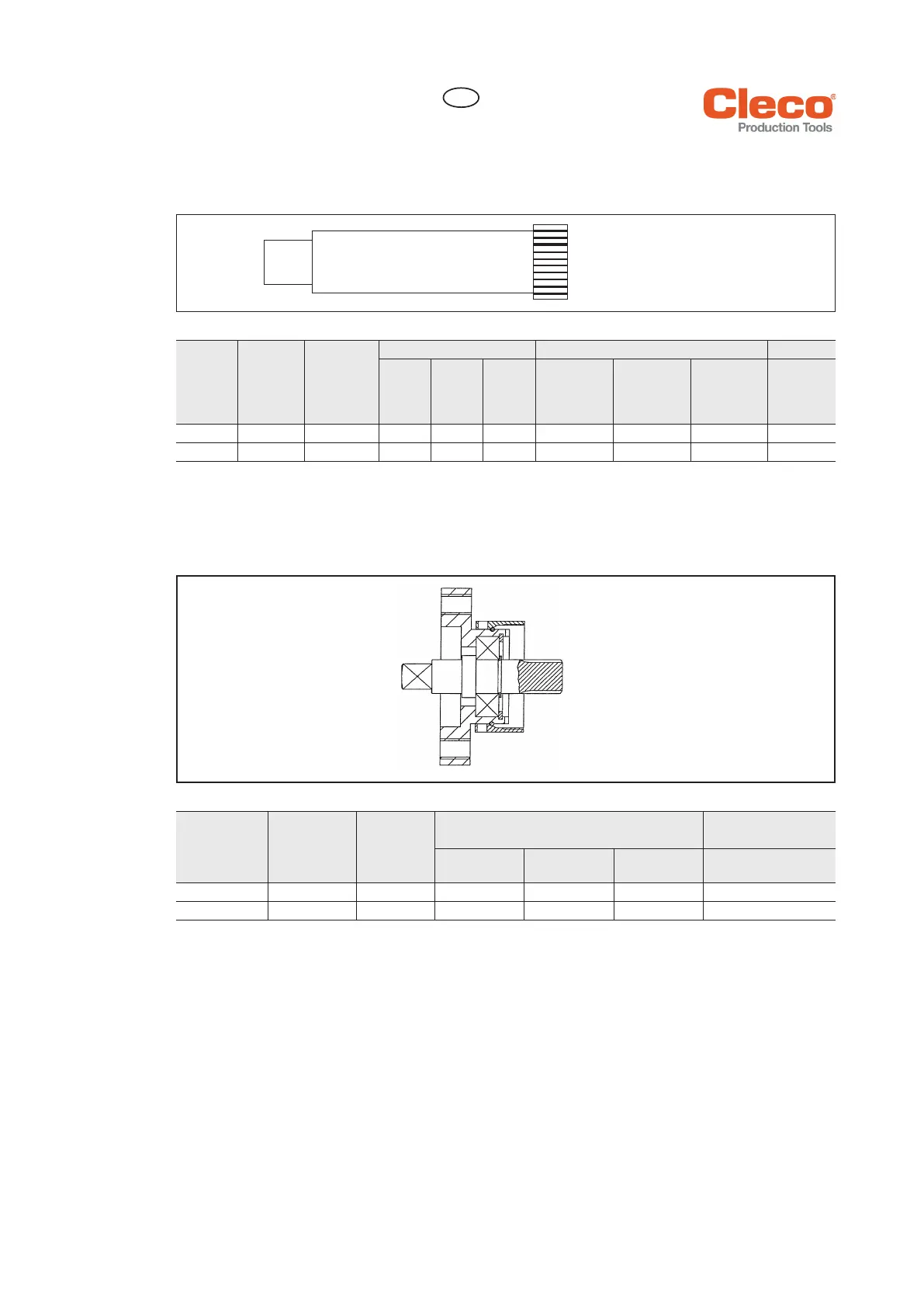

Attachment spindle for size 4Z..
9.4 Attachment for Customer-Specific Adaptation
for
Size
Part no. Square
drive
Permissible load Lateral force on the shaft
1)
Weight
TQ
[Nm]
Pres-
sure
1)
[N]
1) In the event of continuous load, the specified values should be multiplied by the factor 0.3.
Ten-
sion
1)
[N]
Extended
[N]
25 mm
Retracted
[N]
50 mm
Retracted
[N]
[kg]
4Z.. 916643 3/4" 460 9000 8800 4300 4800 5400 1,21
4Z.. 916642 1" 630 9000 8800 4300 4800 5400 1,24
for
Size
Part no. Square
drive
Permissible load Lateral force on the
shank
1)
TQ
[Nm]
Pressure
1)
[N]
1) In the event of continuous load, the specified values should be multiplied by the factor 0.3.
Tension
1)
[N] [N]
1 927541 3/8" 53 1900 1500 2200
2 927542 1/2" 160 4500 3200 3800
