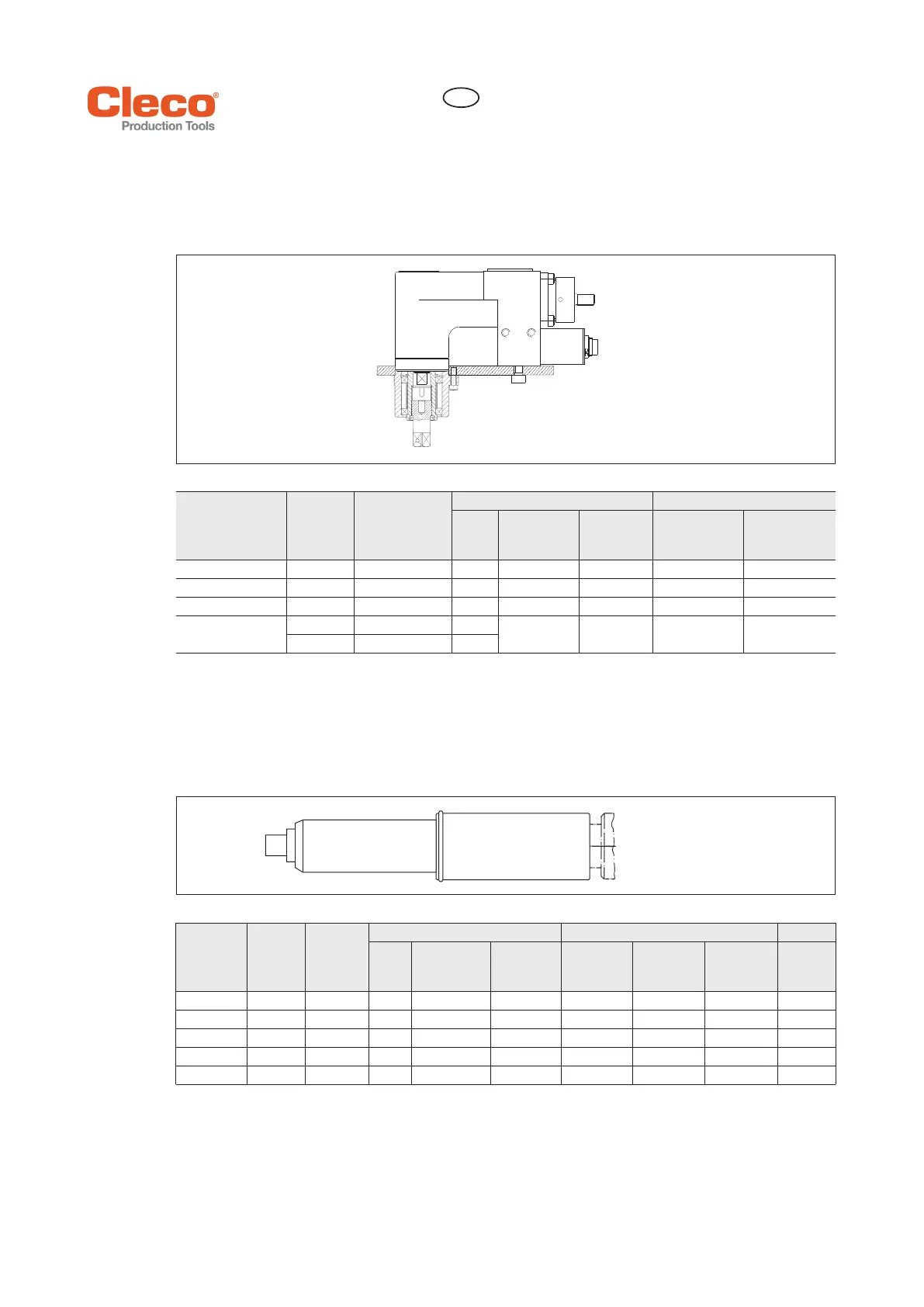

9.2 Spring Attachment for Angle Head
Stroke of spring: 25 mm
9.3 Chuck for Straight and Offset Attachment
Chuck for size 1 - 3
For angle head
attachment Part no. Square drive
Permissible load Lateral force on the shaft
1)
TQ
[Nm]
Pressure
1)
[N]
1) In the event of continuous load, the specified values should be multiplied by the factor 0.3.
Tension
1)
[N]
Extended
[N]
25 mm
Retracted
[N]
1W.. 929041 3/8" 53 1700 6800 1800 2100
2W.. 929053 1/2" 160 1850 6800 2500 3000
3W.. 929065 3/4" 260 3800 7800 3000 3450
4W..
929077 3/4" 380 12000 13000 4300 5050
929089 1" 650
for
size
Part
no.
Square
drive
Permissible load Lateral force on the shaft
1)
Weight
TQ
[Nm]
Pressure
1)
[N]
Tension
1)
[N]
1) In the event of continuous load, the specified values should be multiplied by the factor 0.3.
Extended
[N]
25 mm
Retracted
[N]
50 mm
Retracted
[N]
[kg]
1Z.. / 1V.. 922325 3/8" 53 2300 1500 1510 1720 2000 0,33
2Z.. / 2V.. 910609 1/2" 160 4500 3200 2300 2600 3100 0,45
3Z.. / 3V.. 910613 3/4" 260 6500 5000 2850 3250 3750 0,67
4V.. 912106 3/4" 460 9000 8800 4300 4800 5400 0,87
4V.. 912147 1" 1000 9000 8800 4300 4800 5400 0,90
