Page 5
PL70EN-B4
03/10/2014
Cleco
®
Repair Instructions

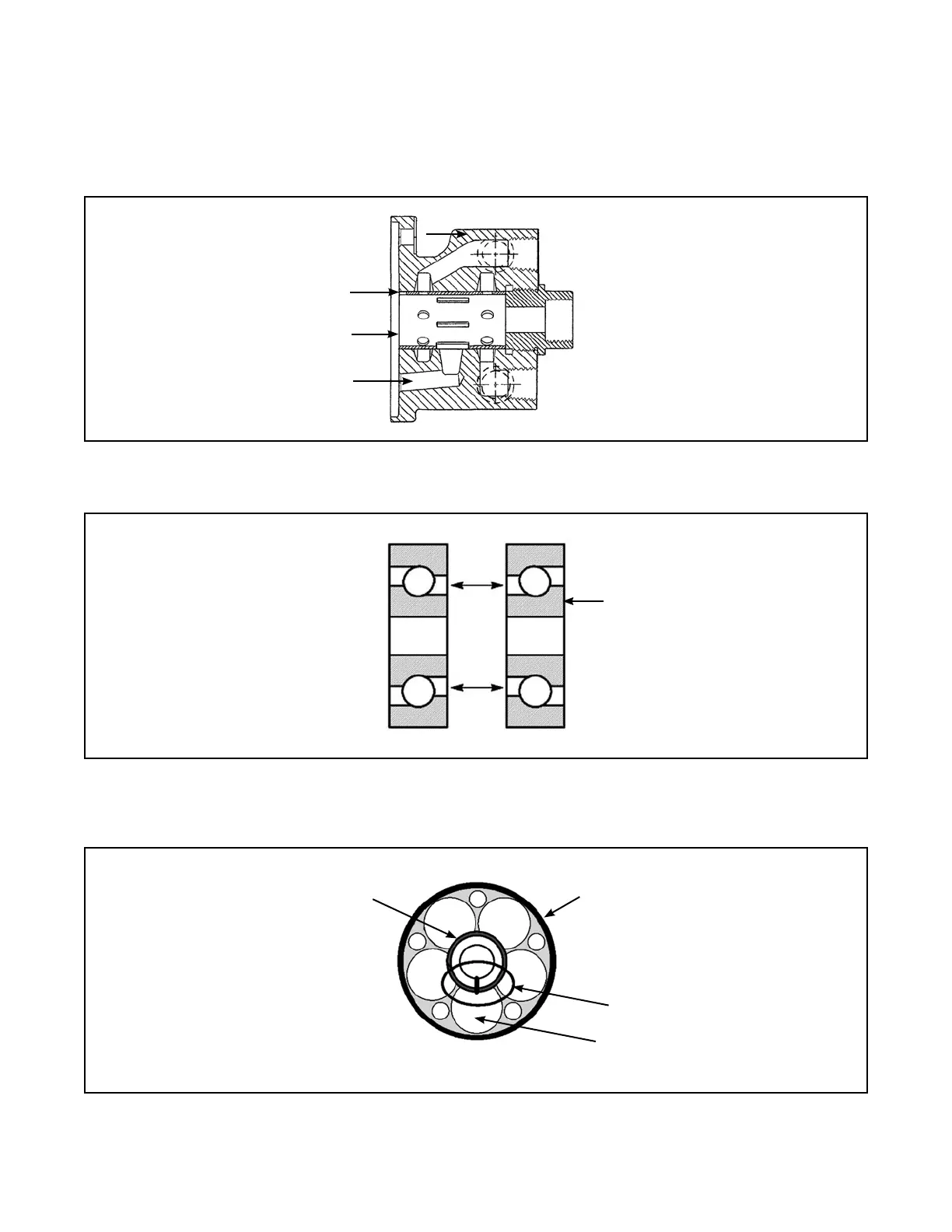

Distributor bushing assembly
Press the new bushing into the head as shown. Notch “A” in the bushing must be opposite hole “B” in the head.
Duplex bearing assembly
The small diameters of the bearings must face each other when assembled.
Bevel gear timing mark
Make sure the timing mark on the bevel gear is aligned with the center of a piston chamber before assembling the
driveshaft assembly into the cylinder.
A17740
Head
1VR77
Bushing
Hole
“B”
Notch
“A”
22655
Duplex Bearing
A21385
Cylinder
Piston Chamber
Bevel Gear Timing Mark
213772PT
Bevel Gear
