PL70EN-B4
03/10/2014
Cleco
®
Repair Instructions
Repair instructions
Lubrication
“DO NOT SUBSTITURE LUBRICANTS”
The proper grades of oil and grease are essential too the efcient operation of these air motors. Heavy oil will not
ow through a lubricator at a satisfactory rate too insure proper lubrication to the motor. Greases that are too stiff will
channel and fail to lubricate properly and greases that are tool thin will blow out of the motor. Improper lubrication
or inadequate lubricants can cause extensive motor damage.
Grease ttings are located on the motor housing and the gear housing for each stage of gearing. The following
quantities of A123771 (High Temp 540450) grease are provided during factory assembly and these same amounts
must be provided whenever the air motor is disassembled.
Motor assembly: 3 oz.•
Gearing assembly (each): 2 oz.•
During normal operation, the motor wil loose a small amount of grease through the exhaust making it necessary
to add grease at regular intervals. After each 50 hours of operation add 1.5 oz. of A123771 (High Temp 540450)
grease to the motor housing.
Excessive grease in the motor housing will cause a loss in motor performance. Not enough grease will
cause premature motor failure.
Too much grease in the gear case will force the seal out of the front housing.
The gear case will lose grease through the motor. The motor will siphon gear grease, saturated with airline oil,
through the exhaust. After 200 hours of operation, add 0.5 oz. of A123771 (High Temp 540450) grease into each
gear housing.
Valving

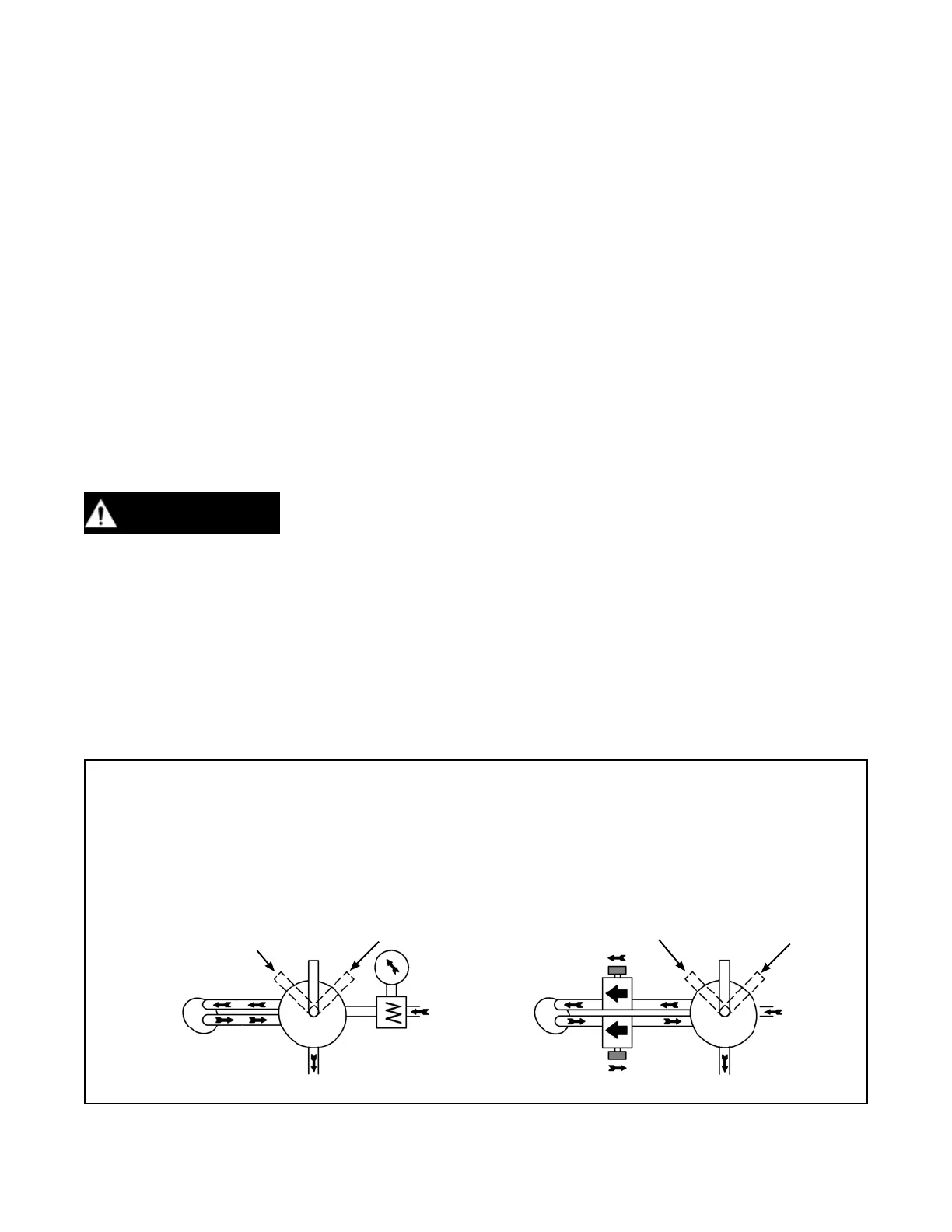

If a valve is used, it should have a full ow air passage to utilize full powe of the motor. For quick motor stops, an
all-ports closed-in-neutral type valve with a spring return should be used.
A8
Motor
Forward
Reverse
Off
A
B
C
D
E
A8
Motor
Forward
Reverse
Off
A
B
C
D
Torque Output Control
A) When air enters from this side
B) it must exhaust without restrictions.
C) Four-Way valve
D) Pressure regulator
E) Air supply
Control Forward and Reverse Speeds
A) Metered ow control (inlet)
B) Free (open) ow control (exhaust)
C) Four-Way valve
D) Air supply
CAUTION
