81
Expansion Audio RX and TX

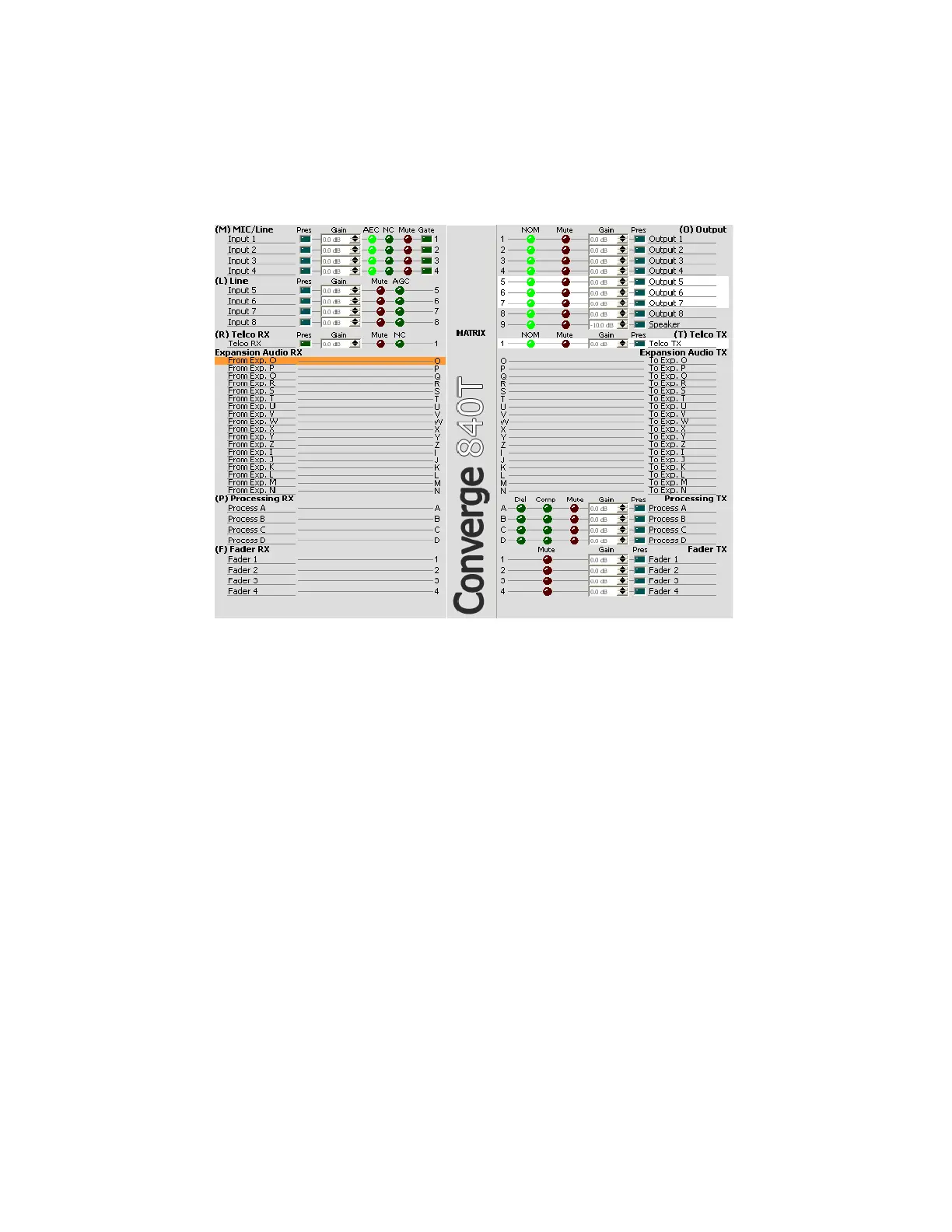

Pointing to an Expansion RX or Expansion TX channel in the Matrix section of the screen highlights it in orange.
Clicking the channel selects it and shows the Input (Tx channels only), Output (RX channels only), Processing,
Expansion, and Fader channel routing (white highlights) for the selected channel as shown above.
Power Amp Channels (CONVERGE Pro 880TA and SR 1212A)
The CONVERGE Pro 880TA and SR 1212A units are equipped with four 35 watt amplifiers capable of running in
either 8 ohm or 70/100 volt modes. Each amplifier operates independently to provide maximum flexibility.
Click the Channel Tab and refer to the Matrix Row. The four Power Amp channels are listed after the Outputs -- click
any of the Power Amp channels to access the available options.
