24 | CIGWELD.COM.AU
OPERATING MANUALBLUEVENOM 4R-ROVER
3
MIG GUN ADAPTOR (EURO STYLE)
The MIG Gun adaptor is the connection point for the MIG
welding gun. Connect the gun by aligning and pushing the
connector into the brass gun adaptor rmly and screwing the
plastic nut clockwise to secure in position. To remove the MIG
Gun simply reverse these directions. Refer to Section 5.02.
4

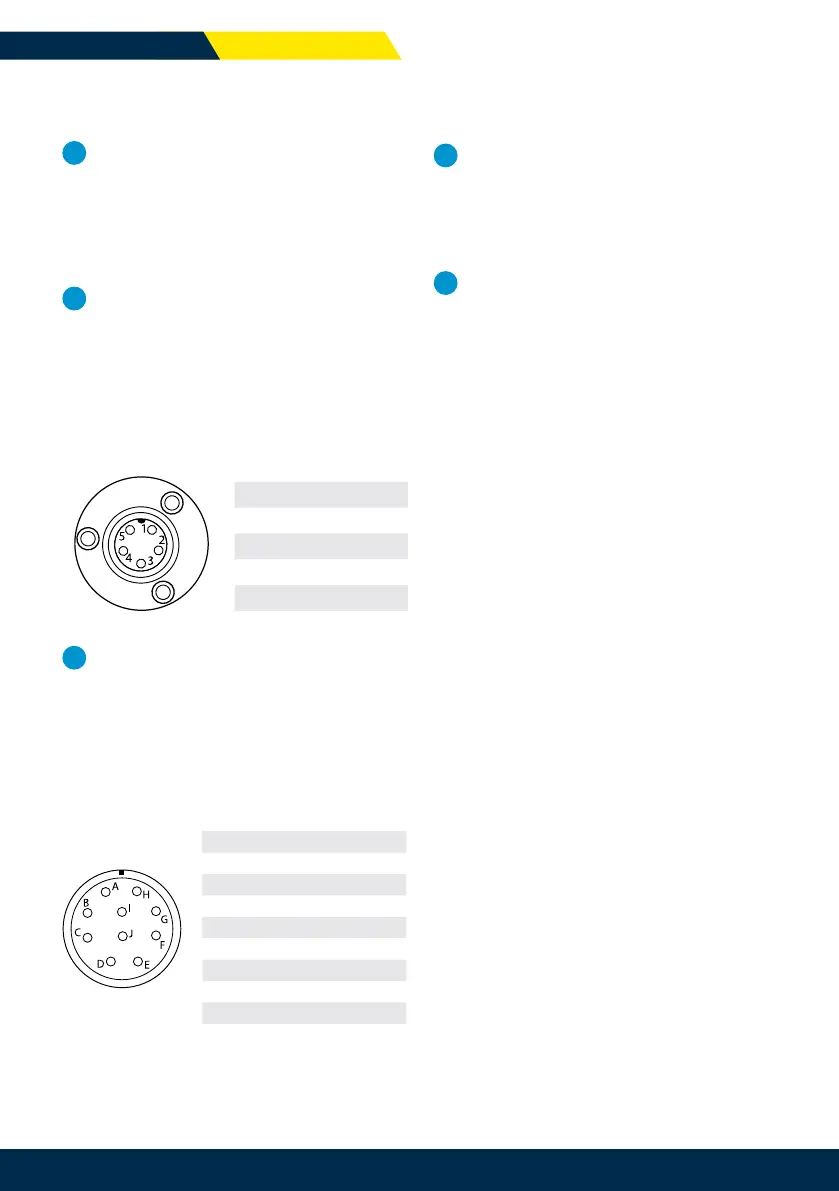

PULSEMATE SOCKET 5 PIN
This 5 Pin PulseMate Control Socket is used to connect the
Optional BlueVenom PulseMate.
If further details are required refer to an Accredited Cigweld
Service Provider.
Socket
Pin Description
1 TX
2 Common
3 RX
4 NC
5 +15V
5
REMOTE CONTROL SOCKET 10 PIN
This 10 Pin Remote Control Socket is used to connect the
BlueVenom Wheeled Power Source.
If further details are required refer to an Accredited Cigweld
Service Provider.
Socket
Pin Description
A CAN H
B CAN Common
C CAN L
D NC
E +24V
F +40V
G +24V & +40V Common
H NC
I NC
J NC
6
SHIELDING GAS INLET
The Shielding Gas Inlet connection is a Quick Connect inlet
tting located on the rear of the machine which is used to
supply the appropriate MIG welding gas to the unit. Refer to
section 5.01.
7
OUTPUT WELDING TERMINAL
The welding terminal is used to connect the welding output
of the power source to the Wirefeeder. Welding current ows
from the power source via this twist & lock terminal, known
as a DINSE Connector. It is essential, that the male plug is
inserted to the power source, the female plug is inserted to
Wirefeeder and turned securely to achieve a sound electrical
connection. Refer to section 5.10.
