Color Force II Plus User Manual V1.1 9 July 2024
www.chroma-q.com
Group DMX address examples:
Group 1: Fixture DMX address
Group 2: Fixture DMX address + 4 (RGBA) or +3 (RGB or HSI)
Group 3: Fixture DMX address + 8 (RGBA) or +6 (RGB or HSI)
Group X: Fixture DMX address + (X - 1) x 4 (RGBA) or +
(X - 1) p15-x3 (RGB or HSI)
Group 24: Fixture DMX address + 92 (RGBA) or + 69 (RGB or HSI)
4.3. Flip Options
The starting DMX address can be selected to be on the right or left of the fixture as indicated on the
display. “Left” is defined as the side where the power & data enter the fixture, “right” is the side where
power and data exit. Shown below is the example of address ordering for a Color Force II Plus 72
TM
with
x1 Grouping selected.

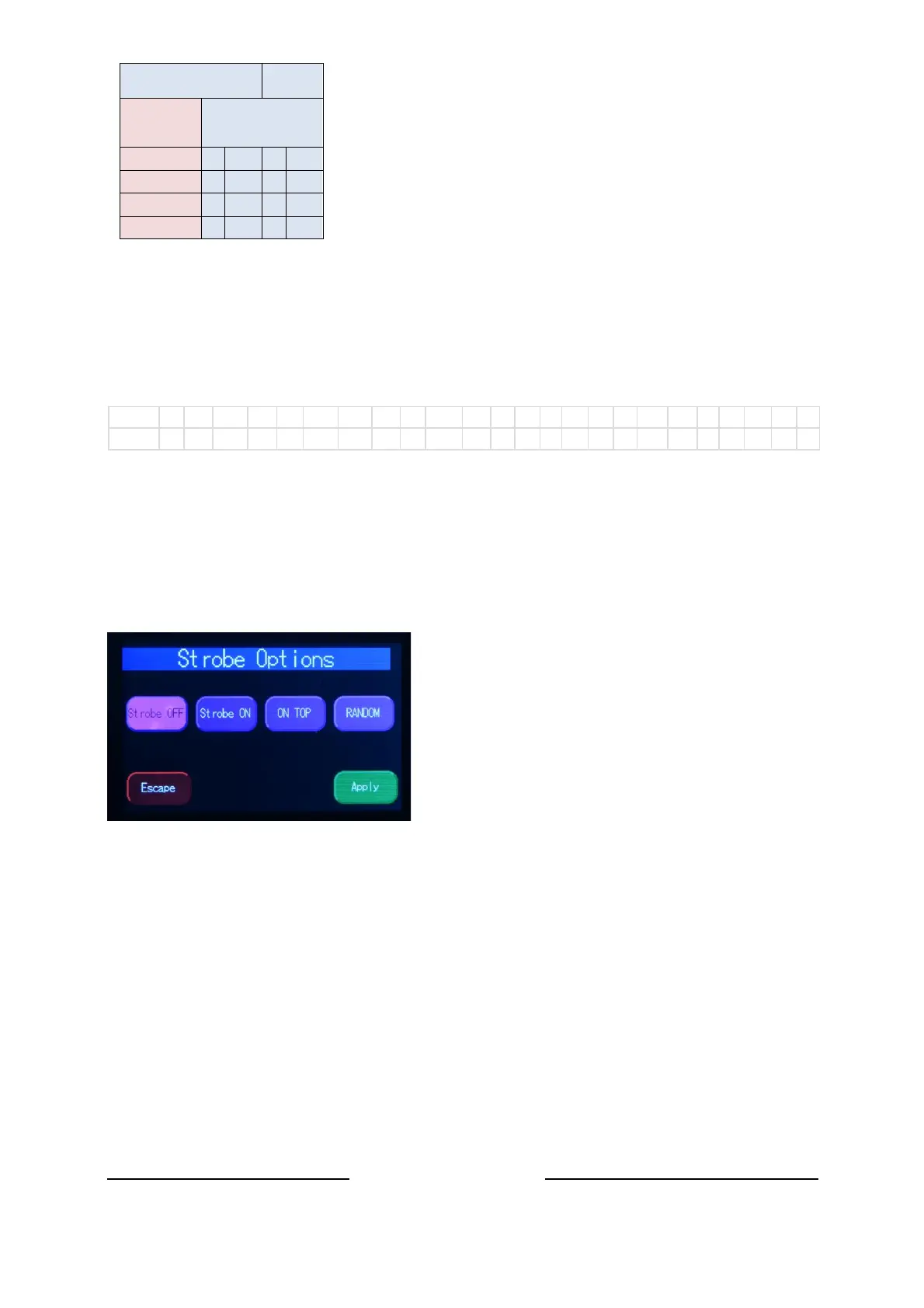

4.4. Strobe Options
These options allow LEDs to flash at different frequency, duration and density depending on the
selection and application requirements. All these factors can be varied using a DMX console. Current
mode on Main Screen will display sRGBA or sRGB / sHSI, where the “s” indicates a Strobe function is
ON. Multiple strobe options can be selected at the same time.
OFF: Select this and the Press Apply to disable strobe option.
Strobe On: Press this button and then select Apply to enable strobe options. This will add 2 control
channels at the beginning of the current channel footprint; first channel for flash frequency and second
channel for flash duration. This setting will be indicated on Main menu touch screen.
ON TOP: Selecting Strobe On with On Top option will add 5 or 6 channels at the beginning of the
fixture DMX footprint based on current mode selected. For RGBA – 6 extra channels and for RGB/HSI
– 5 extra channels as follows: flash, frequency, flash duration, On Top strobe color. On Top color will
be 3 or 4 channels depending on control mode.
RANDOM: Choosing this option LED’s flashing frequency and duration can be randomized allowing
unit to have a base color with strobe enabled adding another 1 extra channel for density (how may
pixels are flashed at a time). Lowest density value is 1, highest is all 24 pixels.
Color Force II Plus
12
TM
L→R
Group
Selected
Group
Number(s)
x4
1
1
1
1
x2
1
1
2
2
x1
1
2
3
4
Od/Ev
1
2
1
2
L→R
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
R→L
24
23
22
21
20
19
18
17
16
12
14
13
12
11
10
9
8
7
6
5
4
3
2
1
