Installation Instructions CMA472
5
TOOLS REQUIRED FOR INSTALLATION / PARTS
#2
A (1)
[CMA472]
Grounding Screw
B (6)
10-24 x 5/8"
C (1)
1"
D (1)
1/2"
INSTALLATION
WARNING: IMPROPER INSTALLATION CAN LEAD TO
MOUNT FALLING CAUSING SEVERE PERSONAL INJURY
OR DAMAGE TO EQUIPMENT! The equipment must be
assembled and installed by qualified service personnel.
1. Install CMA-440/-450/-455 or CMS-440 (accessory not
included). See installation instructions included with the
accessory.
Figure 1

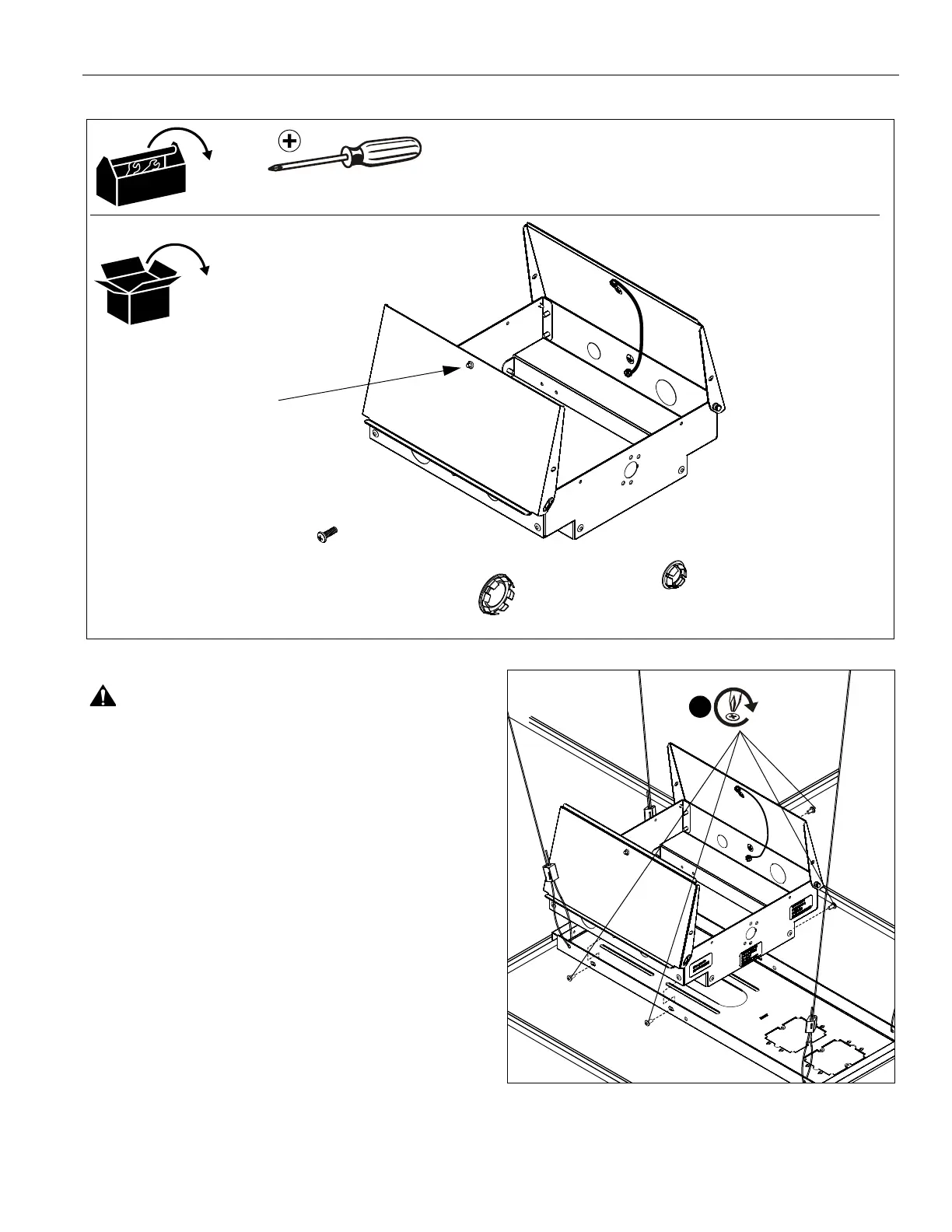

2. Install CMA472 (A) with four 10-24 x 5/8" Phillips pan head
screws (B). (See Figure 1) Tightly fasten.
2
(B) x4
