Maverick Storm 3 Profile User Manual Rev. 2

Gobo Replacement

The gobos in the Maverick Storm 3 Profile are removable from their gobo holders.

Procedure

Follow the recommended procedure below to remove or replace the gobos:

1. Turn the product off and disconnect it from the power outlet.

2. Open the head cover by loosening the screws on the sides of the top cover.

3. Separate the gobo holder away from the gobo wheel by pushing it toward the front of the moving

head (see direction 1 in the diagram). Be careful not to push the gobo out of the gobo holder.

4. Extract the gobo holder by pulling it outward (see direction 2 in the diagram).

5. On a flat surface, remove the expansion ring that holds the gobo in place and remove the gobo

from the gobo holder.

6. Insert a new gobo and hold it in lace with the expansion ring.

7. Slide the tip of the gobo holder under the pressure plate near the center of the gobo wheel.

8. Push the gobo holder inwards. DO NOT force the gobo holder into the gobo wheel slot. If correctly

installed, the gobo plate should easily slide itself into the gobo wheel slot.

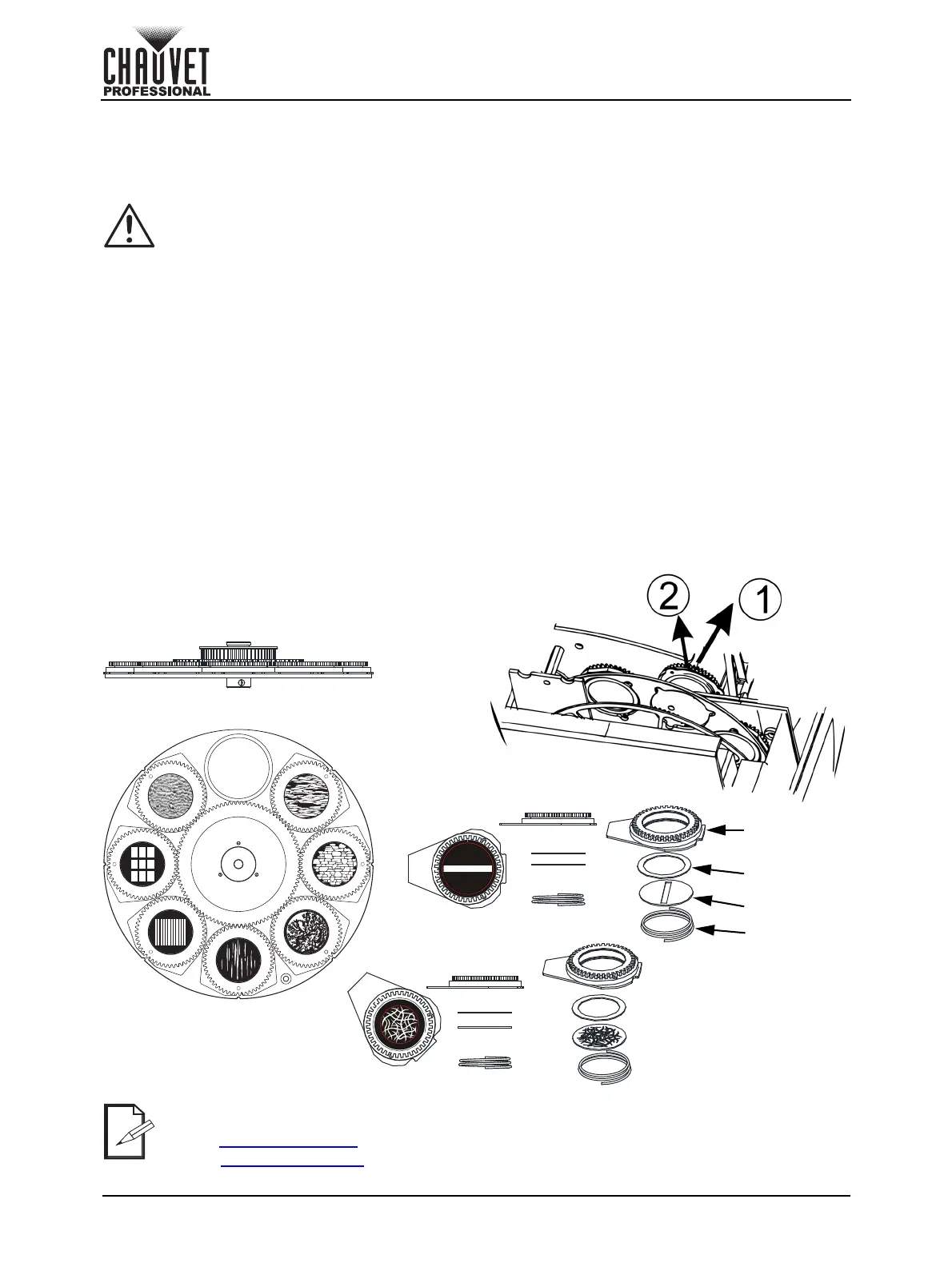

Gobo Replacement Diagrams

• Make sure to disconnect the product’s power cable before replacing a gobo.

• Always replace a gobo with a gobo of the same dimensions.

• When inserting a glass gobo, always make sure that the shiny side of the gobo (glass

base) faces the LED. This provides a layer of protection against the high temperature

from the LED.

• All custom gobos in the Maverick Storm 3 Profile gobo wheel 1 must be aluminum or

glass.

• Gobo illustrations are for reference purposes only. Gobo designs may differ from those

installed in the product.

• See Gobo Replacement for which gobo holders can accommodate metal, glass, or either.

•See Gobo Maintenance for instructions on how to clean the gobos and gobo holder.

Gobo holder

Glare shield

Gobo

Retaining

spring
