MagicQ Concepts

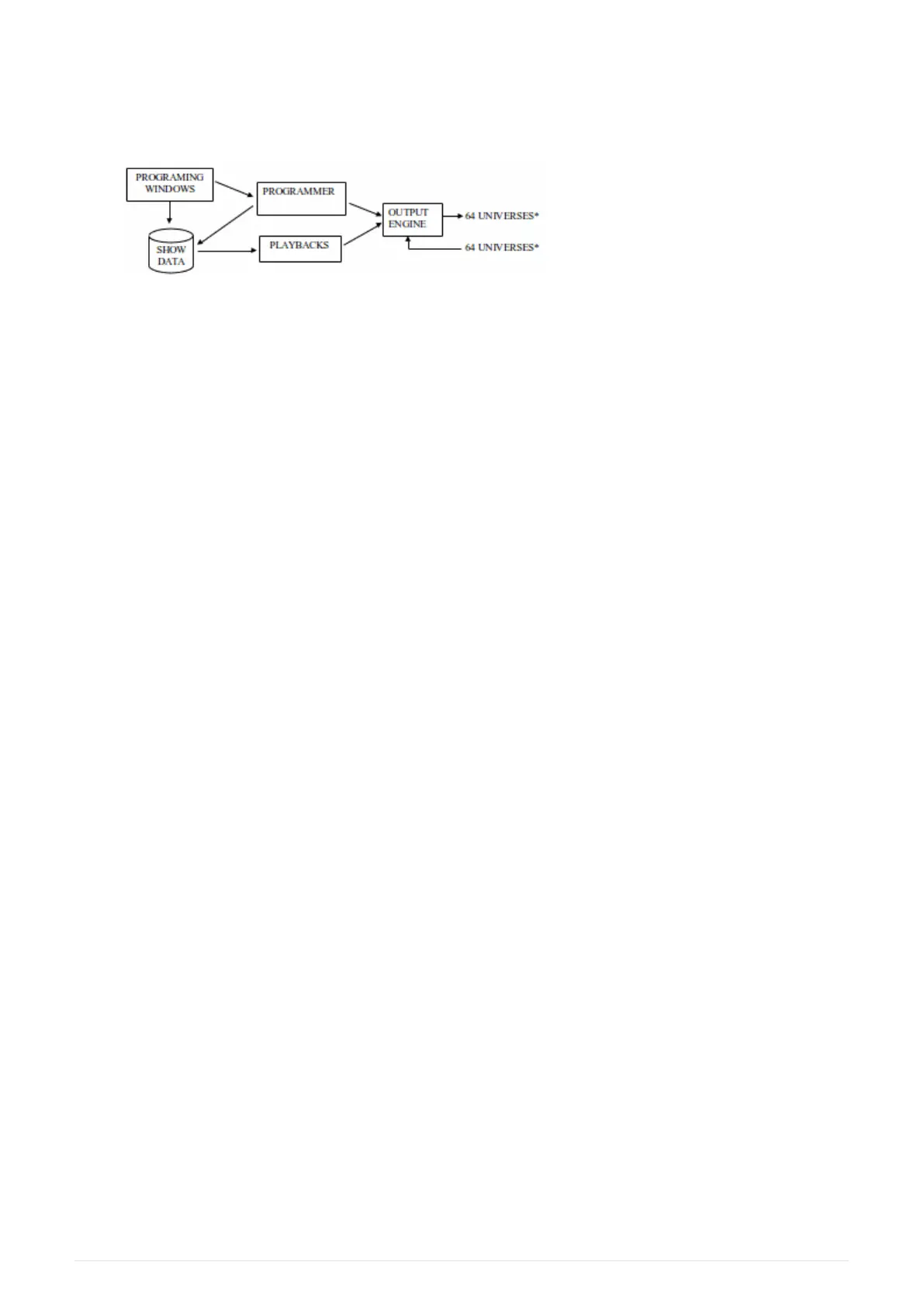

A system diagram of the console is shown in the diagram below
• Universe count ranges from 4 to 400 depending on console.
Show Storage
MagicQ stores show data in a single show file stored on the hard drive of the MagicQ console,
PC or Mac. The show file contains all the show settings, patch, palettes, cues and cue stack
data. It also stores copies of all the personalities that are used within the show.
A MagicQ show can be transferred between MagicQ consoles and MagicQ PC or Mac systems
simply by copying the show file. MagicQ show files are compatible across all MagicQ products.
MagicQ maintains forward and backward compatibility for show files - enabling users to load
shows created on any version of MagicQ software into any other version of MagicQ software.
Favourite shows, personalities, palettes and FX patterns can be imported into new shows to
simplify and speed up show programming.
Show files can be copied using USB memory sticks or the network can be used to access the
file system of MagicQ consoles.
When the user saves the show using the SAVE SHOW menu item or soft button MagicQ stores
the show file with a .shw file extension. At all other times MagicQ automatically backs up the
show data whenever changes are made to a (.sbk) file.
Output channels
Depending on the console, MagicQ software supports up to 400 universes output over
Ethernet.
This allows up to 131,072 channels of lighting to be controlled. Ethernet to DMX Interfaces are
used to convert from Ethernet to DMX512 as required.
Lighting consoles are often limited in the number of DMX channels or the number of
intelligent heads they can control independently. MagicQ allows control of all DMX channels
individually, whilst utilising grouping and programming functions to enable control of
multiple heads or dimmers together.
MagicQ provides a library of over 35,000 personalities – data for each of the different types of
intelligent head available. This data determines how the different attributes of an intelligent
head are controlled by the console.
32 ChamSys Manuals 2025-02-12
