convert any of the 200 Art-Net or ACN Streaming DMX universes to be output on DMX512
serial. For systems requiring all 200 universes on DMX512, multiple interfaces may be used
connected via network switches.
Powering Up
To power up the console press the power switch on the rear panel. The blue LEDs on the ten S
buttons will light up in turn. After a few seconds the screen will come to life and you will see
the operating system quickly performing self tests. Once the self tests are completed the
MagicQ application is started.
Note: Equipment shall be connected to branch circuit by means of power cable connected to a
outlet with earthing connection or equivalent.
Powering Down
To power down the console it is necessary to quit the MagicQ application. The console
operating system then performs an automatic shutdown and turns itself off when complete.

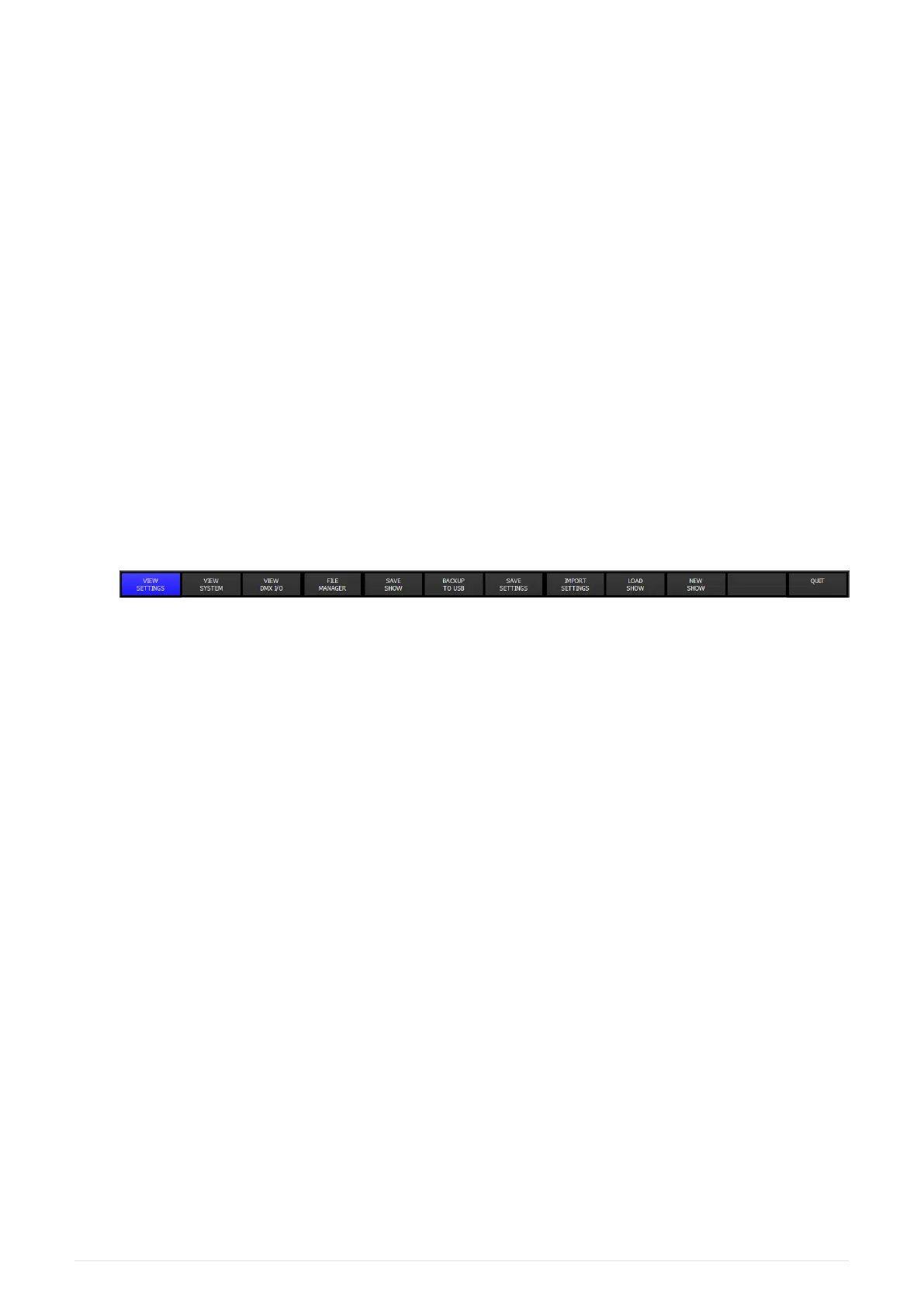

To quit the MagicQ application, press the SETUP button and then the QUIT soft button. When
asked for confirmation, press YES.
Note that just removing the power cord to the console will not have the desired effect since
the internal UPS continues to provide power.
If for some reason you are unable to power off the console then you may need to reset it as
below.
Note that the power cable should remain connected at all time that other connections such as
DMX, network, serial, USB or video are connected to the console. This ensures that the console
is correctly grounded. The power cable should be the last connection removed.
On MQ500 it is possible to press the rear power button to power off the console.
Resetting the Console
Under rare circumstance it may be necessary to reset the console.
To reset the console, press SETUP to go to the Setup Window and press SHIFT and QUIT. This
performs an immediate soft reset of the console - the MagicQ application will be running the
show again within about 2-3 seconds.
If for some reason the console does not respond to button presses then try pressing CTRL
BREAK on the external keyboard (hold CTRL whilst pressing BREAK).
2025-02-12 ChamSys Manuals 9
