7

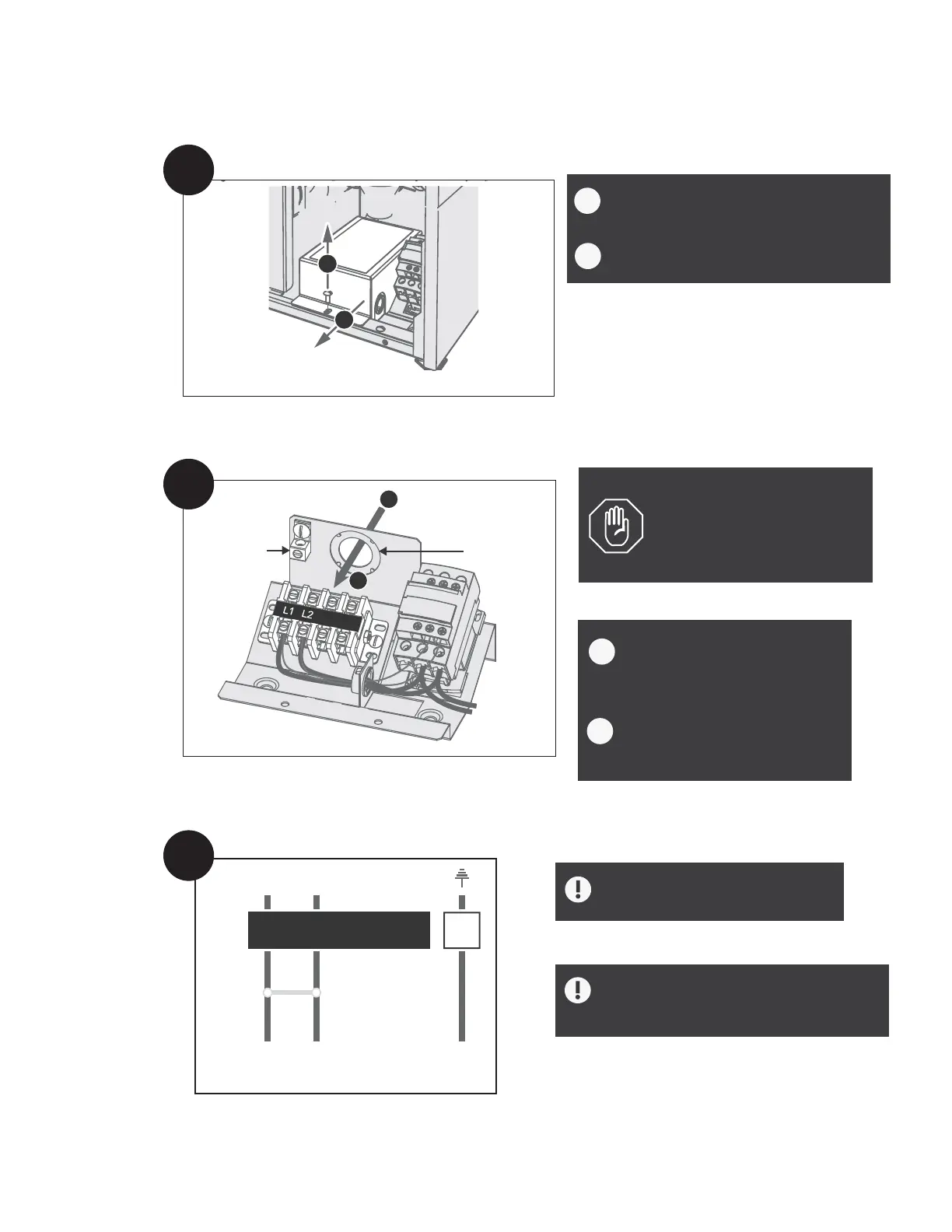

Installation
Electrical Connection (continued)
2
Fig. 6
GROUND LUG
STRAIN-RELIEF
KNOCKOUT
B
A
3
Fig. 7
L1 L2
L1 L2
208/240V
G
Fig. 8
4
REMOVE THE LEFT SCREW ON THE
FRONT LIP OF THE TERMINAL BOX.
LIFT AND REMOVE THE COVER
TO ACCESS THE TERMINAL BLOCK.
A
B
A 30" / 76 cm SERVICE
LOOP MUST BE PROVIDED
BEHIND THE UNIT FOR
SERVICING.
STOP
STOP
THREAD THE POWER CABLE
THROUGH THE MIDDLE
SLOT IN THE REAR PANEL.
SECURE THE CABLE TO THE
TERMINAL BOX USING THE
PROPER STRAIN RELIEF.
A
B
208-240V / 50/60Hz / 1Ø
SINGLE PHASE - TWO WIRE PLUS GROUND
CONNECT THE INCOMING
POWER AS SHOWN IN FIG. 8.
