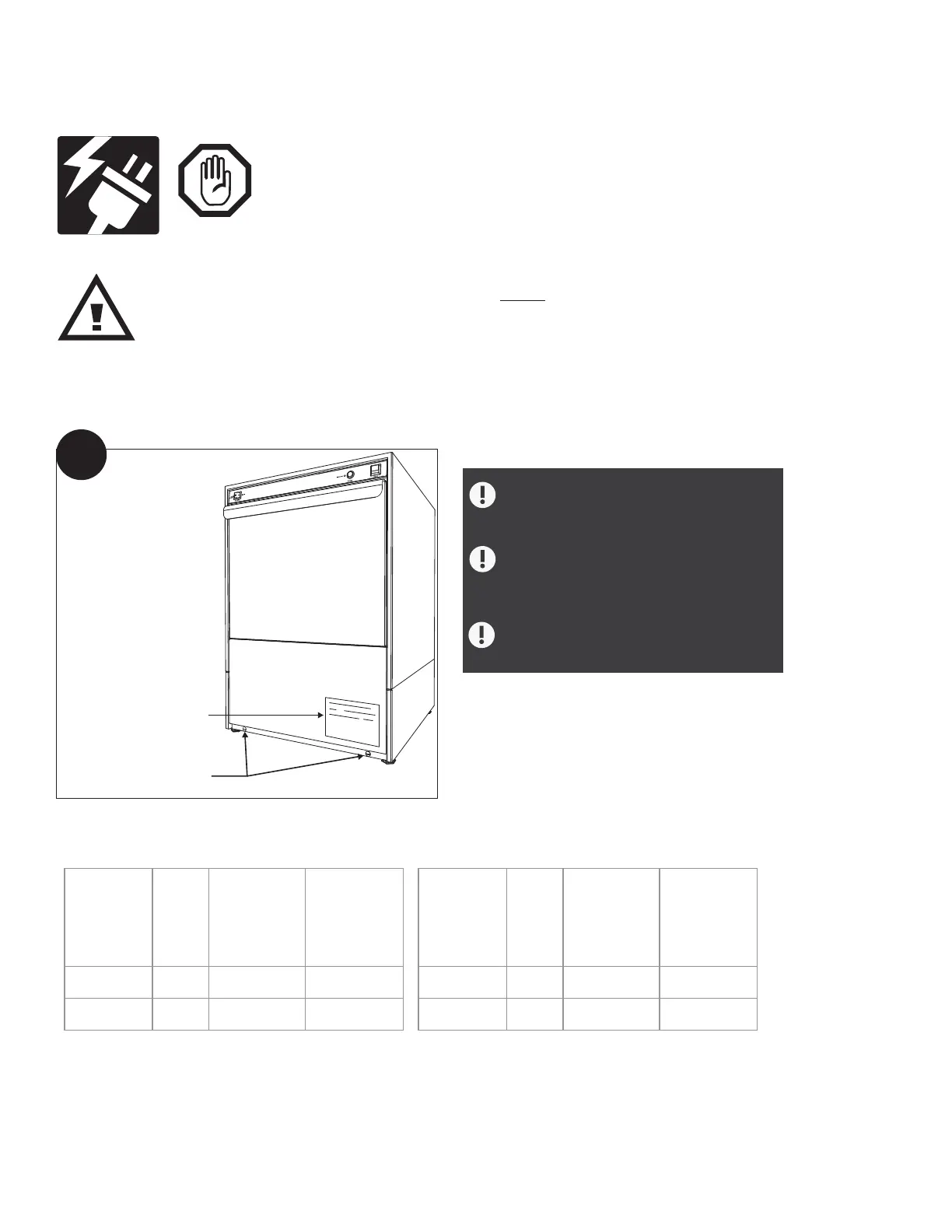

6
DATA PLATE
FRONT PANEL
SCREW LOCATION
Installation
Electrical Connection
WARNING:
Electrocution may occur when working on ener-
gized circuits. Disconnect power at the main breaker or service
disconnect switch, then lock out and tag it to indicate that work is
being performed on the circuit.
CAUTION:
Electrical connections must be made AFTER
the plumbing installation.
Damage to the water heaters will occur if the power is turned on without an
adequate water supply.
Follow the instructions below and on the next page to connect power to the machine.
1
Overcurrent
29 40 40
31 40 40
Elec. Specs
Rated
Amps
Minium
Supply
Circuit
Ampacity
Maximum
(Breaker Size) (Breaker Size)
Protective
Device
208/50/60/1
240/50/60/1
208/50/60/1
240/50/60/1
22 30 30
24 30 30
40˚F/22˚C Rise Electric Booster (4kW) 70˚F/39˚C Rise Electric Booster (6kW)
Table - 1
Breaker (Service Disconnect Switch) Size
Fig. 5
CHECK THE ELECTRICAL SPECIFICA-
TIONS ON MACHINE DATA PLATE.
REFER TO THE BREAKER SIZE TABLE
BELOW AND ENSURE THE BUILDING
BREAKER SIZE MATCHES.
REMOVE DISHWASHER LOWER
FRONT PANEL TO ACCESS INTERNAL
COMPONENTS FOR INSTALLATION
Elec. Specs
Rated
Amps
Minium
Supply
Circuit
Ampacity
Overcurrent
Maximum
Protective
Device
